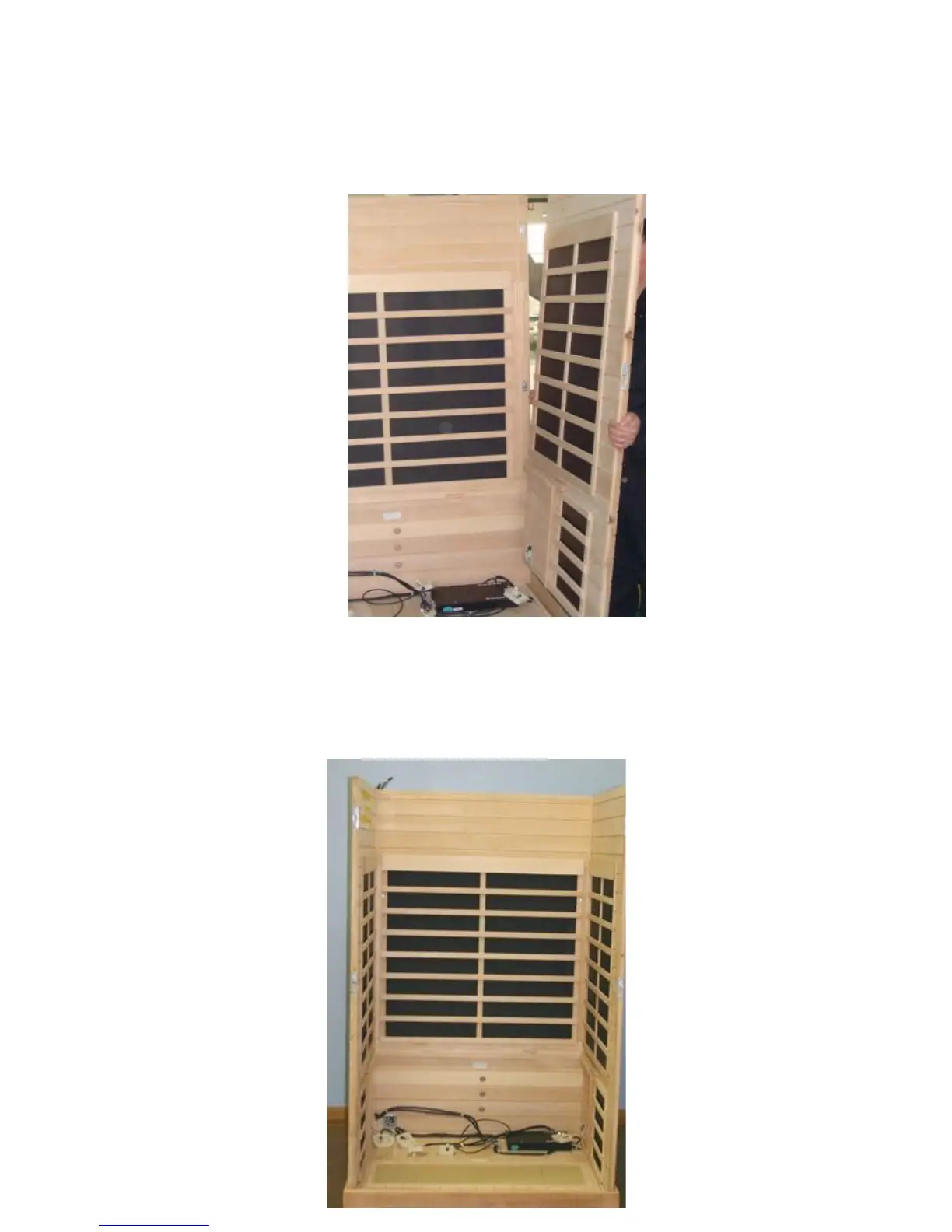

Right wall panel (Box 3):
• Place the right wall panel into the right hand slot on the floor panel.
• Attach the back wall panel to the right wall panel by lifting the right panel and pushing
it into the retaining bracket on the back panel.
• Connect the R-1 electrical supply to the R-1 junction box.
• Fix the cover of the R-1 junction box with 2 Phillips screws.
Left wall panel (Box 3):
• Place the left wall panel into the left hand slot on the floor panel.
• Attach the back wall panel to the left wall panel by lifting the left panel and pushing
it into the retaining bracket on the back panel.
• Connect the L-1 electrical supply to the L-1 junction box.
• Fix the cover of the L-1 junction box with 2 Phillips screws.
Page 5
