MAINTENANCE AND SERVICE
43
5
CHECKING AND CHANGING
FRONT AXLE OI
L
(1) Inspection
① Pull out the dipstick, wipe its tip
and insert it again. Then, pull it
out and check that the oil level
is between the upper and lower
limits.
②
If insufcient, add oil.
※
There is one front axle oil drain
hole on each side of the front
axle.
►

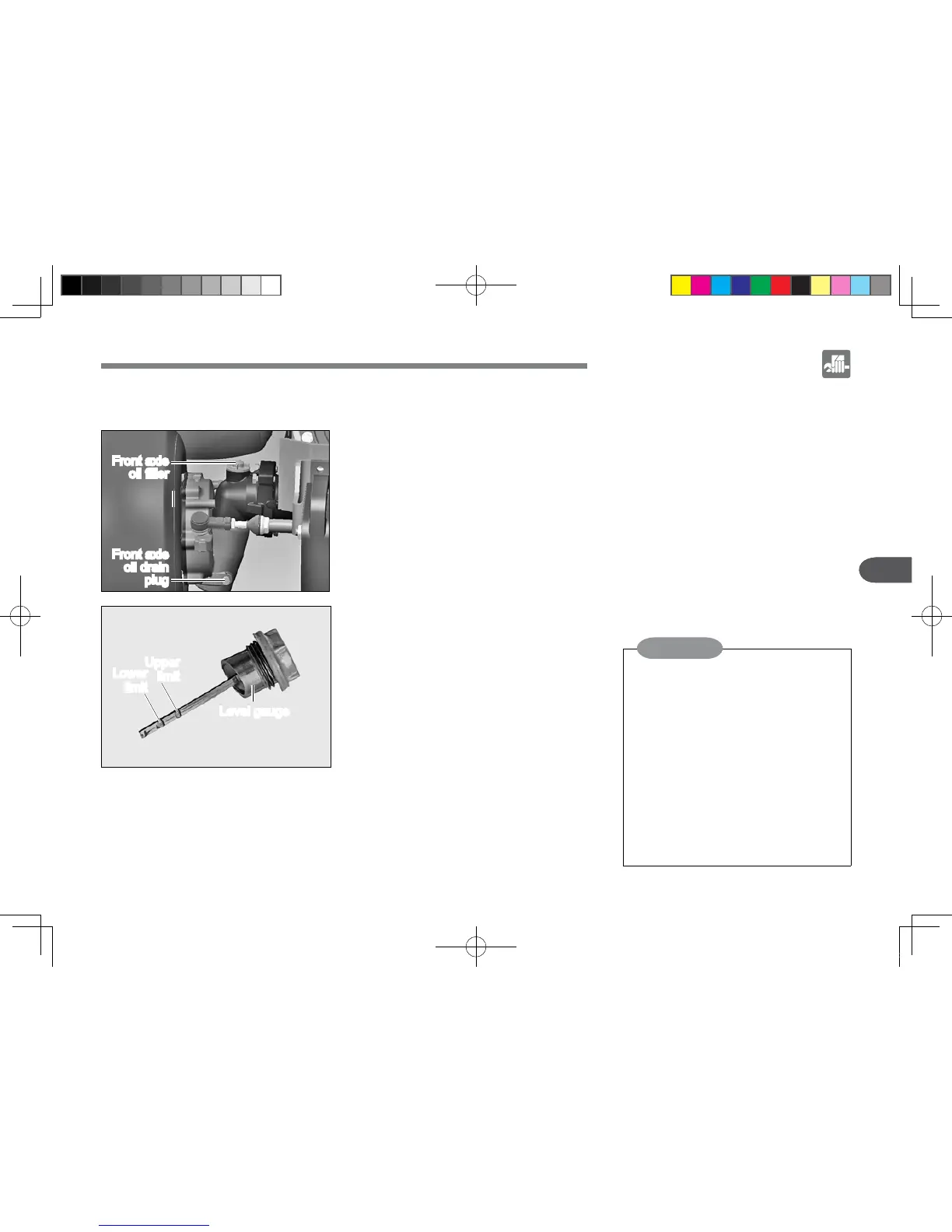

Front axle
oil filler
T254O514A
Level gauge
Front axle
oil drain
plug
Upper
limit
Lower
limit
(2) Changing
①
Unscrew the drain plugs on the
bottom of the axle and left/right
final cases to drain engine oil.
Since hot fluid flows out of the
engine rst, be careful not to get
burnt.
② After draining oil, tighten the oil
drain plug.
③ Add the specied amount of the
specified oil through the filler
hole.
Do not add front axle oil over
the upper limit level.
Check the front axle oil before
starting the engine or at least
in 5 minutes after the engine is
stopped.
When trying to use new oil from
a different manufacturer or oil
with different viscosity, drain
used oil completely before add-
ing new oil.
•
•
•
NOTE
T19O508A
