(2) PTO shaft and related parts.
a. Remove the rear hitch and the PTO guide
b. Pull out the spring pin (17) with a special tool
c. Pull out the arm comp(10)
d. Extract PTO shaft stay(2) rearwards and take out shifter(1).
e. Be alert to the steel ball which may spring out of the shifter. Extract PTO shaft(3) rearwards and
remove the change gears and related parts.
5-18

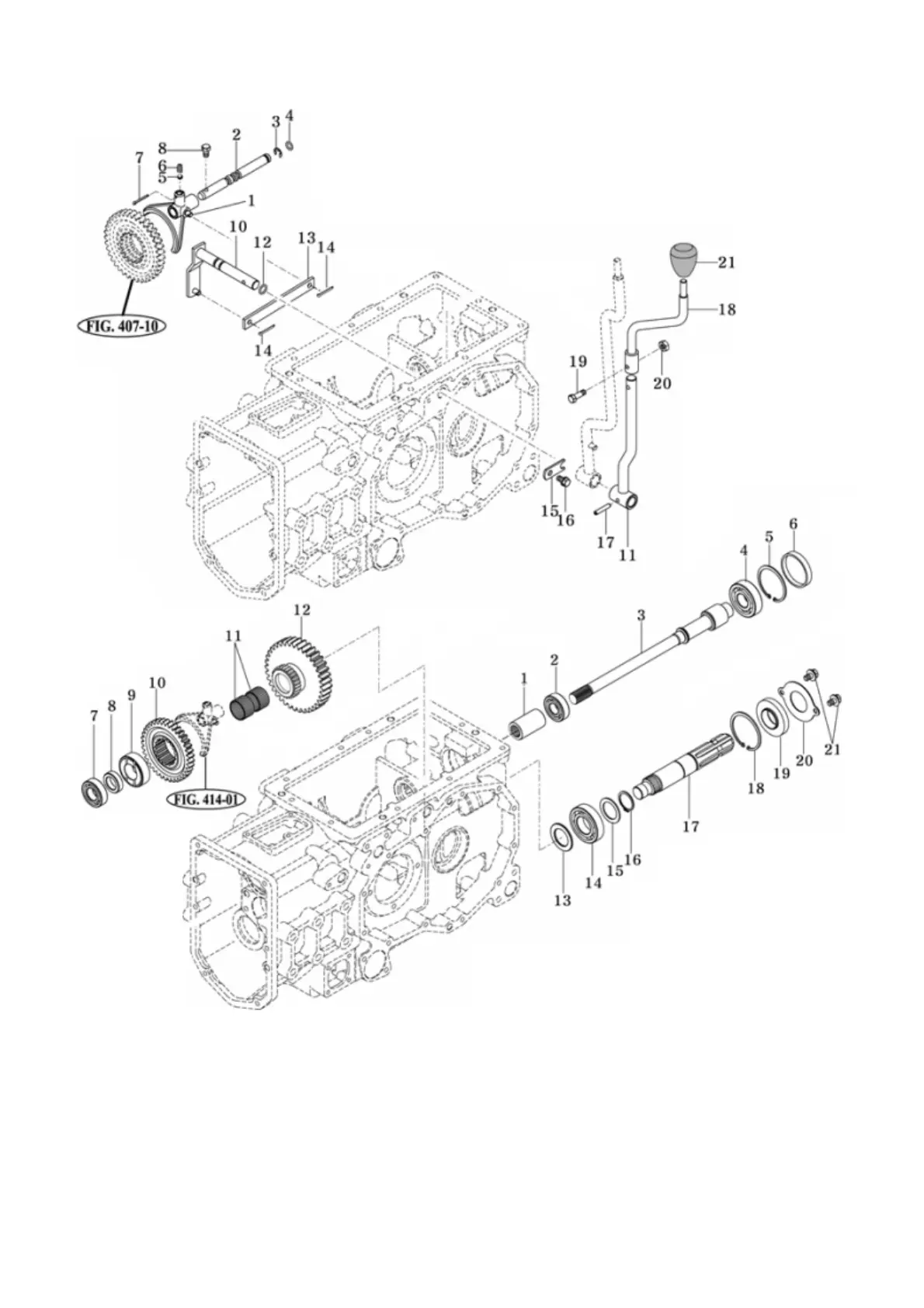

Fig.5-30 PTO gears
Fig.5-29 PTO lever, stay
