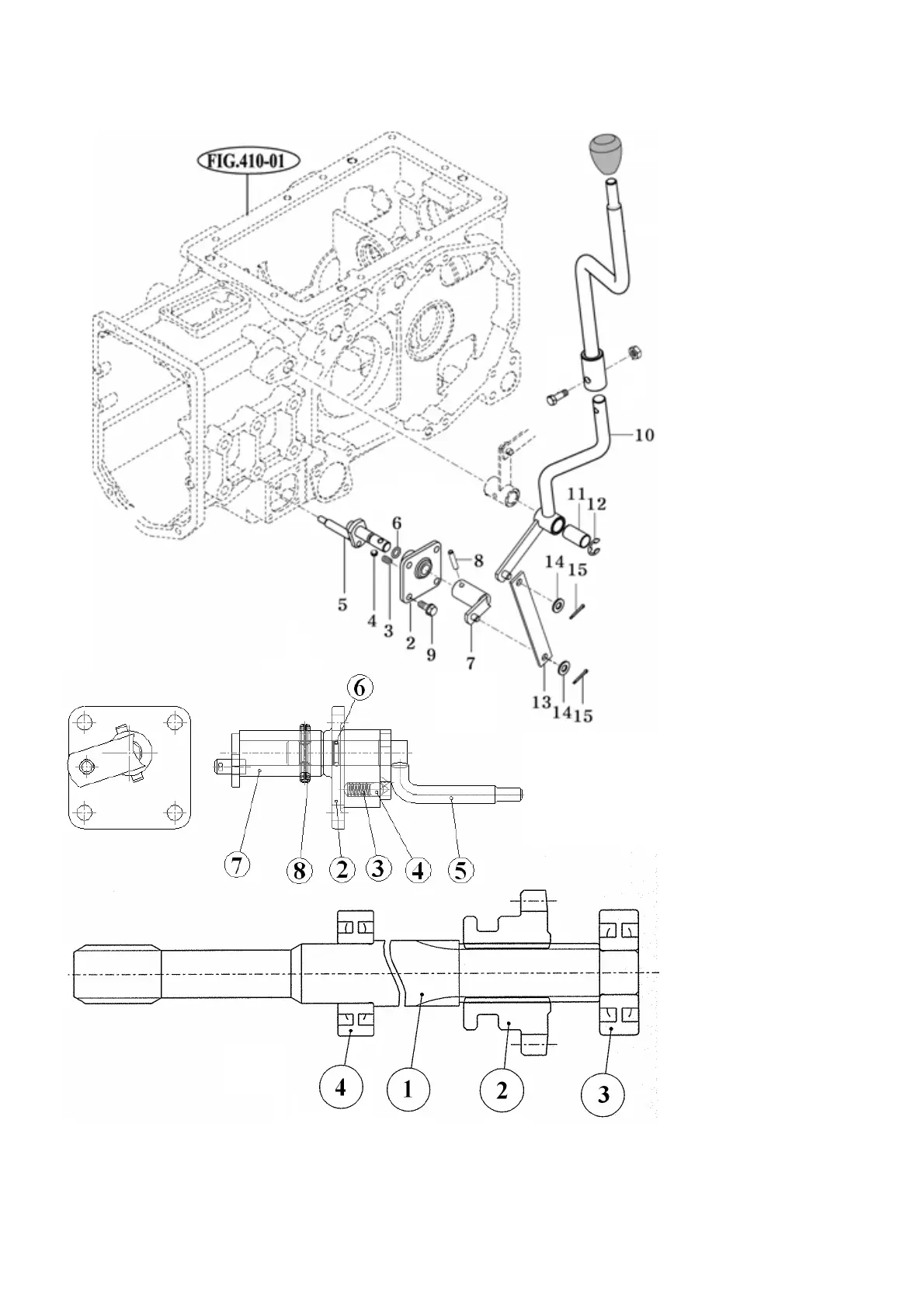

(3) Front drive change (4 WD shaft) mechanism
2. BOSS
3. SPRING , SHIFTER
4. BALL , STEEL
5. ARM COMP , 4WD
6. O-RING , P
7. ARM COMP
8. PIN , SPRING
9. BOLT , HEX/S
10. LEVER COMP ,
4WD(LOW)
11. BUSH , 16X18X33
12. E-RING
13. LINK , 4WD
14. WASHER , PLAIN
15. PIN , SPLIT
Fig.5-40
Fig.5-41
1.Shaft,4WD drive
2.Gear,spur 16T
3.Bearing,ball(6302)
4. Bearing,ball(6004)
Note : The O-ring, hook comp and the inner of the pipe should be applied for grease before being
assembled.
