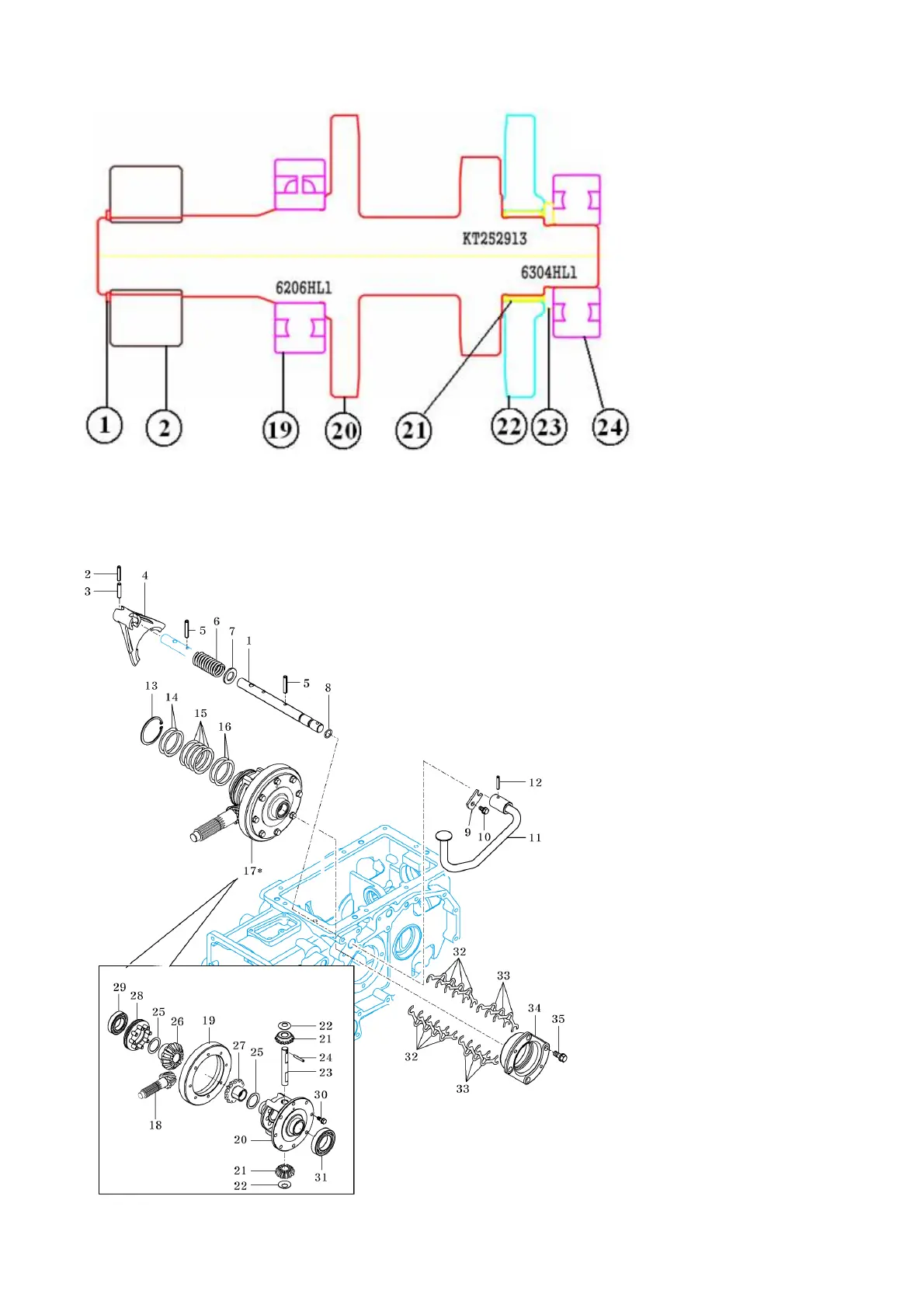

7) Sub change counter shaft
8) Differential gears.
5-32
1.C-RING , SHAFT
2.GEAR , SPUR 21T
19.BEARING , BALL/HL1
(6206)
20.GEAR , SPUR 19-28T
21.BEARING , NEEDLE.
ROLLER (KT252913)
22.GEAR , SPUR 28T
23.WASHER , 20X34X3
24.BEARING,
BALL/HL1(6304)
13.C-RING , HOLE 14.SHIM , 0.5 (3)
15.SHIM , 0.2 (4) 16.SHIM , 0.1 (3)
17.DIFF ASSY , RR
18.PINION , DRIVE 9T
19.GEAR , BEVEL 55T
20.CASE , DIFF
21.PINION , DIFF 12T
22.COLLAR , PINION THRUST
23.SHAFT , DIFF PINION
24.PIN , SPRING
25.WASHER, THRUST 34X46X1
26.GEAR , BEVEL RH 20T
27.GEAR , BEVEL LH 20T
28.CLUTCH COMP , DIFF LOCK
29.BEARING , BALL
30.BOLT , HEX/S
31.BEARING , BALL
32.SHIM , 0.2 (8)
33.SHIM , 0.1 (6)
34.METAL , DIFF CASE
35.BOLT , HEX/S
Fig.5-54
Fig.5-53
Note:
1.Apply grease when installing Needle bearing.
2.After installation, be sure to slide smoothly.
