8.Trailer socket (Reference)
A hella’s 7-pin trailer socket is equipped as an optional equipment.Lamp on a trailer can be
operated through the socket.
Note:
Lamp on the trailer should be of the same size or smaller than those on the trailer.

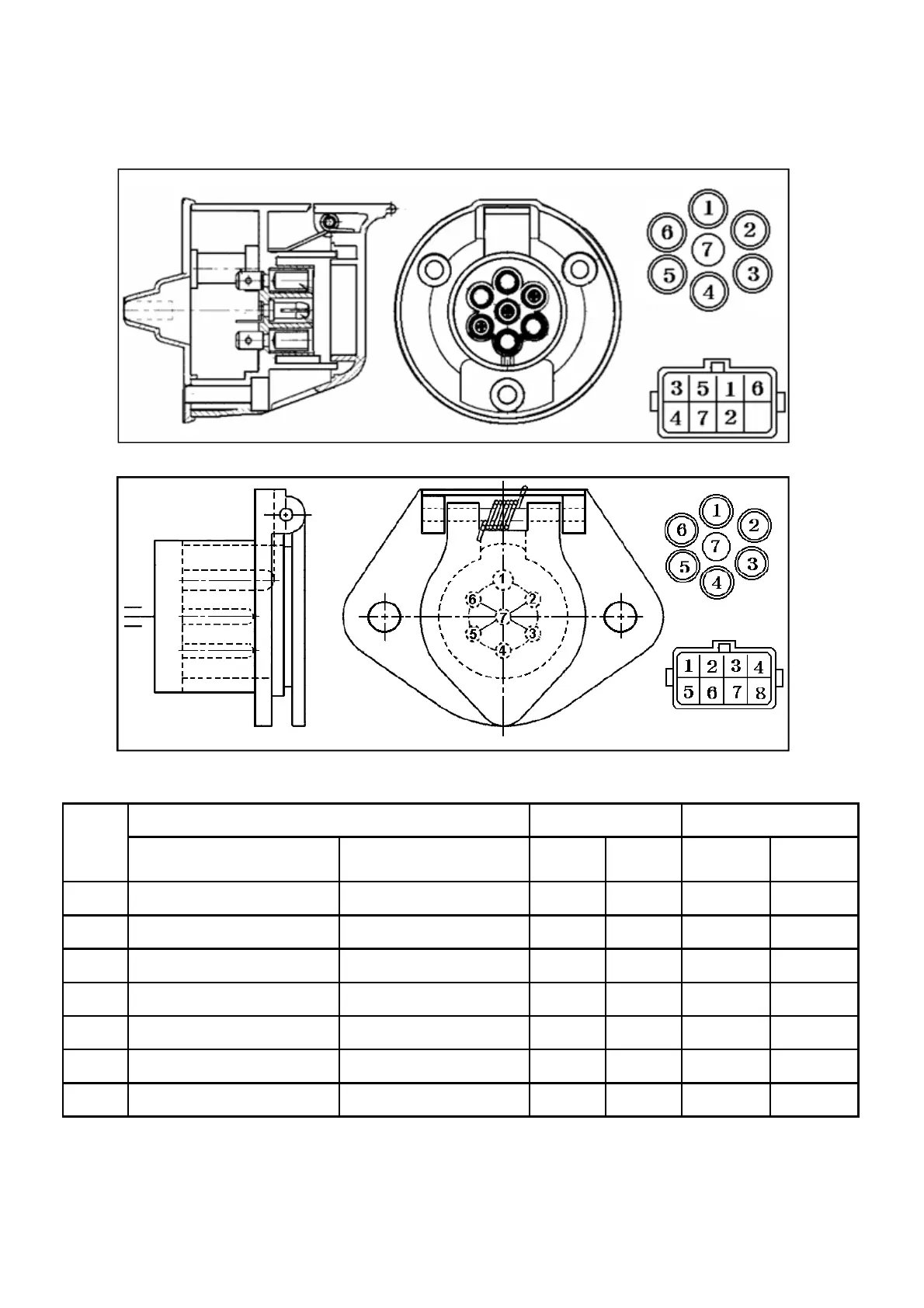

Fig.10-23
B type
A type
Wire
Hous
ing
Description Color Specification
A type B type A type B type A type B type
1 Turn signal (LH) Earth G/B W AV 0.85 AV 1.25
2 Reserve light (Fog light) Small light(Tail light) R/W B AV 0.85 AV 1.25
3 Earth Turn signal (LH) B Y AV 2.0 AV 1.25
4 Turn signal (RH) Stop Light G/Y R AV 0.85 AV 1.25
5 Parking light (RH) Turn signal (RH) Y/W G AV 0.85 AV 1.25
6 Stop Light Rear Light W/L Br AV 0.85 AV 1.25
7 Parking light (LH) Reserve light Y L AV 0.85 AV 1.25
