10-11
1) Front axle bracket (RH)
Earthed at upper tapped hole in the axle bracket.
3) Earthed at upper tapped hole in the dash panel.
Fig.10-25
Fig.10-26
2) Contact surfaces of the axle bracket and
engine where they tightened together
1)Front axle bracket
3) In the dash cover
Fig.10-24

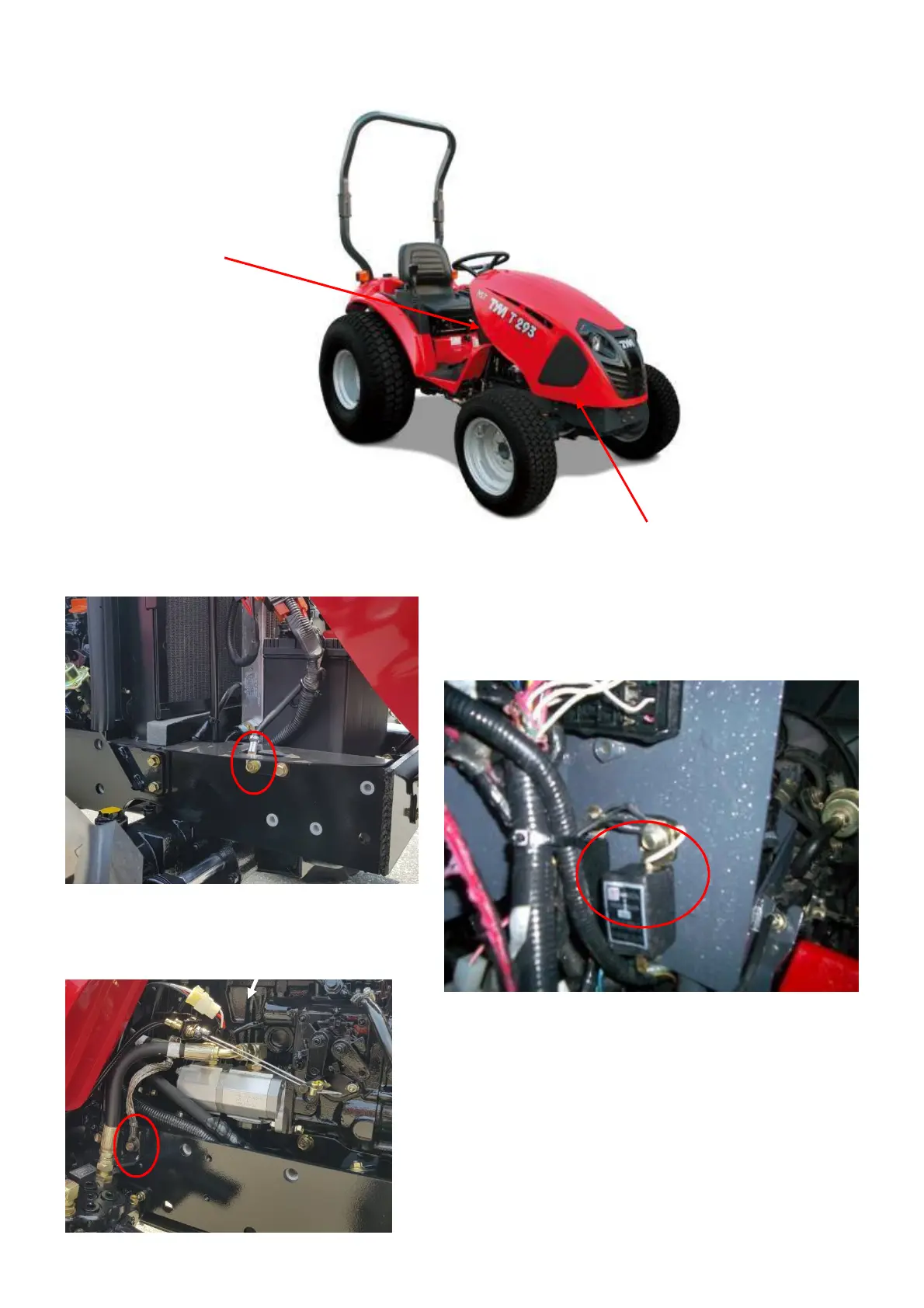

SECTION 5. EARTHING POINT
