5 - 4
■ Cab ceiling:
The ceiling is padded with insulation mate-
rial to block heat radiation into the cab and
keep the temperature down when working
in very sunny areas.
The cab platform is covered with a “firm
grip” carpet in the most commonly used
areas.
It is recommended to keep this carpet clear
of earth, mud, etc. so that the operator may
get on and off the tractor in full safety.

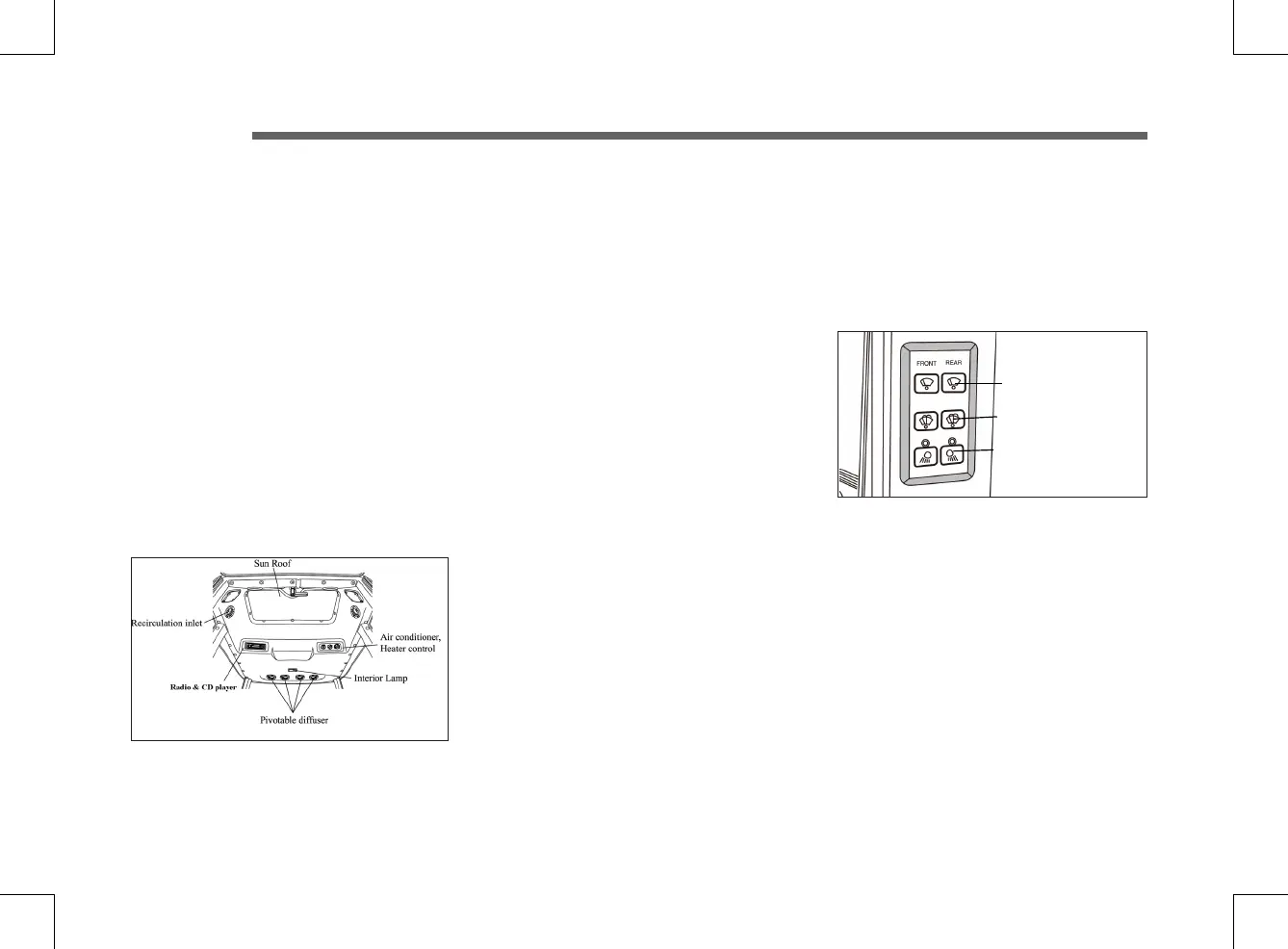

► How to Controls Cabin
■ Ventilation
The ventilation unit is housed in the cab
ceiling.
To switch it on and adjust it, turn the electri-
cal fan switch to the desired speed.
The cab becomes slightly pressurized
when the ventilation system is in operation,
so that the fresh air can enter only by way
of the filter installed in the rear section of
the cab roof.
The fan switch can be operated only after
the ignition key is inserted.
The air flow can be regulated and directed
by suitable positioning the air diffusers.
Air can be taken in fresh from outside or
recirculated from within the cab by way of
the relative side inlets.
■ Re-circulation inlets fully closed:
Air is taken in entirely from outside the cab
through the rear grille and filtered through a
paper element positioned behind the grille.
N.B-it is very important that the air diffus-
ers never be completed closed so as to al-
low for a steady air flow.
To obtain a greater pressurization inside
the cab, it is necessary to take the air from
the outside, therefore the inside air recir-
culation grille should be fully closed.
■ Working lamp switch
The front and rear working lights are ON
when push the button. The work light in-
dicator lamp on the instrument cluster will
illuminate.
■ Wiper control switch
- Switch ON
The Wiper switch is ON when
Push the Top button.
The Washer switch is ON when
Push the Mid-button.
Wiper switch
Washer switch
Working Lamp switch
