9 - 7
SECTION D
9
▶

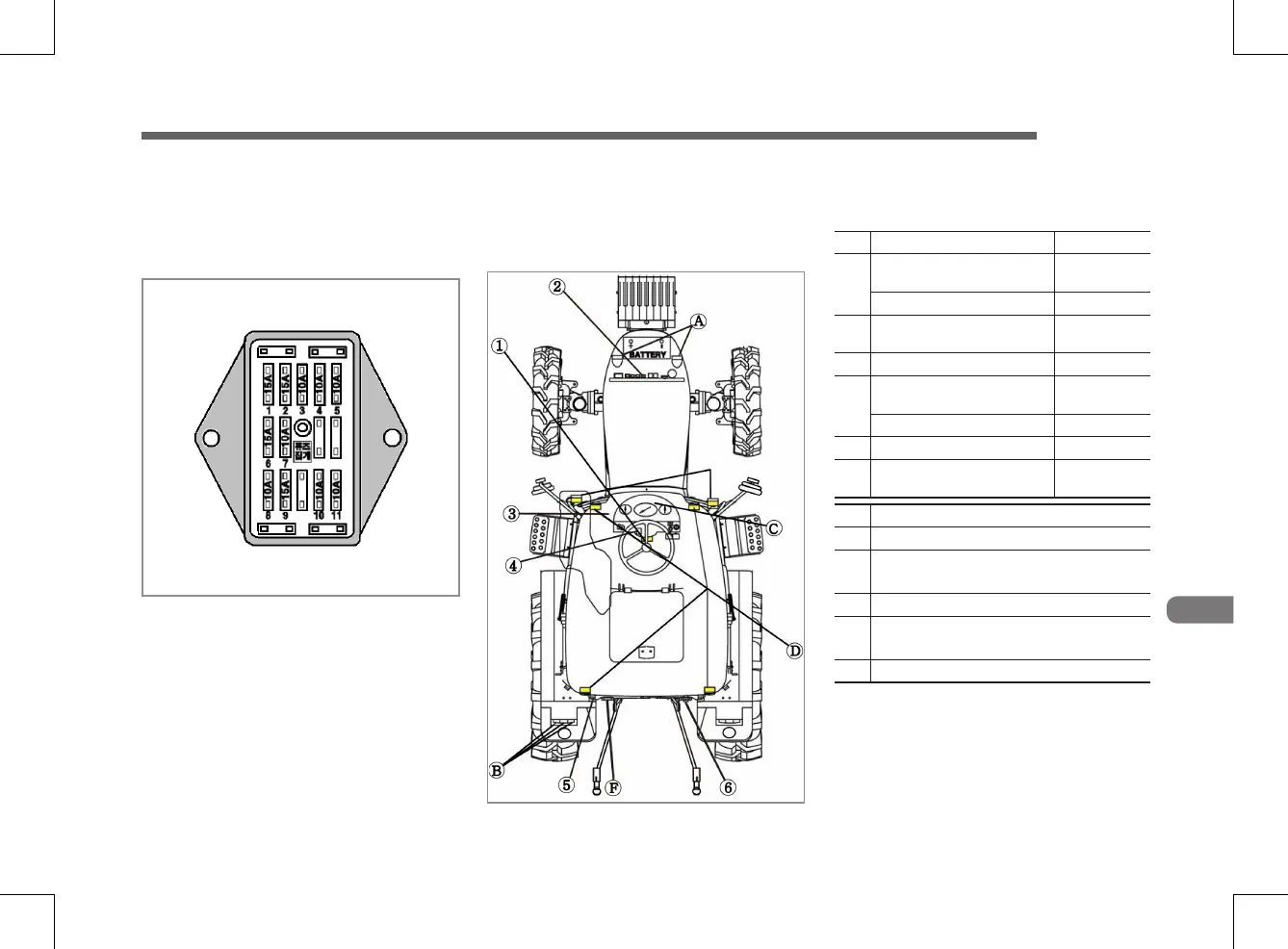

Drawing for xing position of the fuse
▶
Wiring diagram of the electric instrument
1.
PANEL, RANGE RPM SENSOR
2.HEAD LAMP, HORN
3.WORKING LAMP
4.STOP LAMP, REVERSING LAMP
5.TURN SIGNAL
6.PTO
7.FUEL PUMP ENGINE STOP
8.NOT USED
9.COUPLER
10.CONTROLLER
11.E-HYDRO
A
HEAD LAMP
12V55W
B
TURN SIGNAL LAMP
(REAR)
12V21W
STOP LAMP, TAIL LAMP
21/5W
C
INSTRUMENT PANEL
LAMP
12V3.4W
D
WORKING LAMP
12V35W
E
TURN SIGNAL
LAMP(FRONT)
12V21W
FRONT POSITION LAMP
21V5W
F
REVERSING LAMP
12V20W
G
NUMBER PLATE LAMP
(EU)
12V10W
1 FUSE BOX
2 SLOW BLOW FUSE
3 UNITS FOR DIRECTION
SIGNAL RELAY FOR THE POWER
4 PTO MONITOR
5 COUPLER FOR THE POWER
MAX RATED AMPERE
6 COUPLER FOR THE TRAILER
