3 - 22
SECTION A
OPERATING THE HYDRAULICS
The hydraulics are powered with an engine
driven hydraulic pump and controlled with
a position control lever mounted beside the
driver.

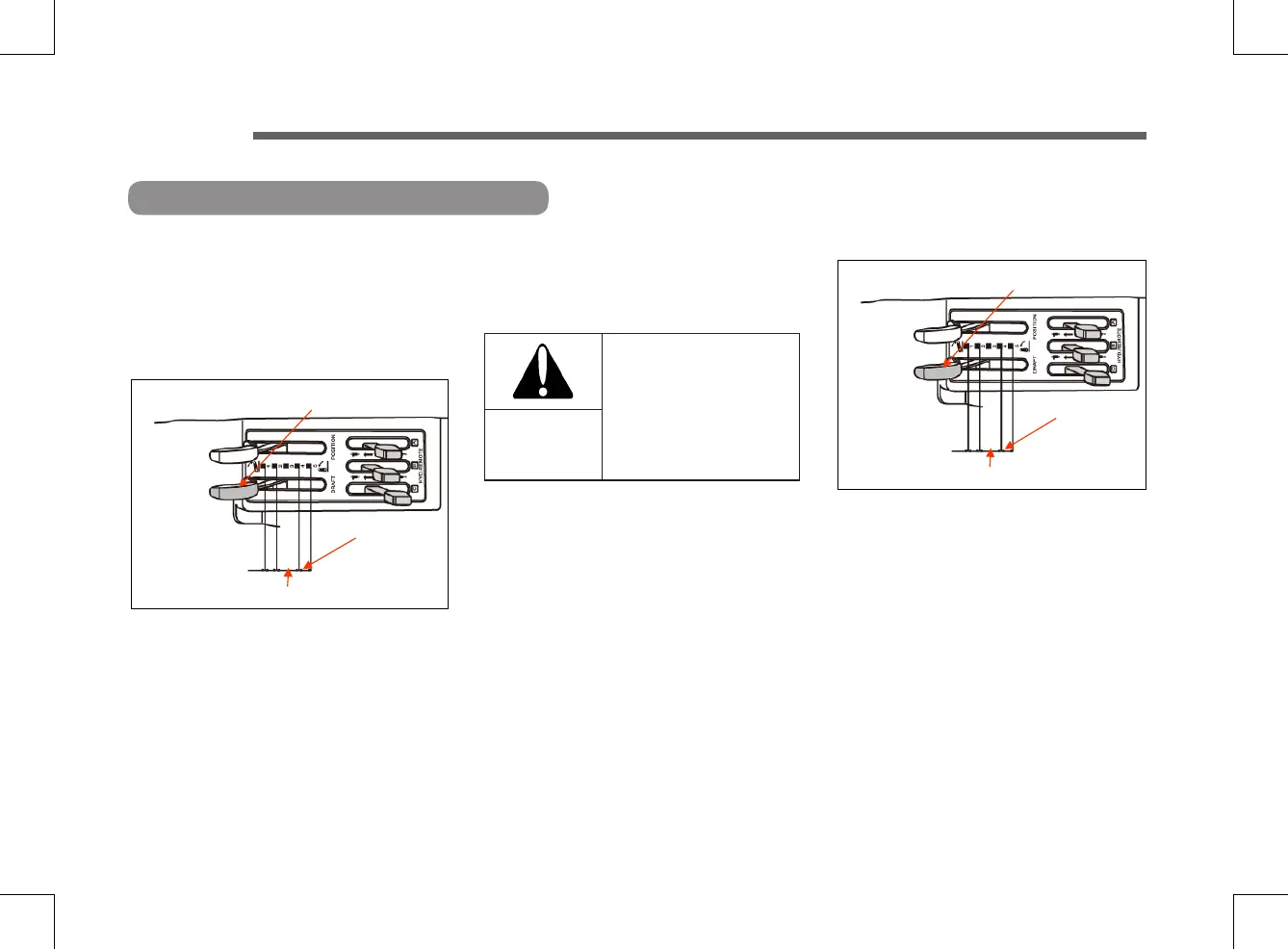

► POSITION CONTROL
► Implements can be raised and lowered
with the hydraulic position control lever
and can be stopped at any position by
stopping the lever. To ensure a consistent
working depth the adjustable stop can be
set to ensure that the implement returns to
the same depth every time.
Draft control Lever
Free Floating
Scope of Draft control
Ascent
To raise the implement: Pull the lever back
To lower the implement: Push the lever for-
ward.
After nishing the work,
always lower the imple-
ment to the ground and
switch off the engine, Set
the parking brake to avoid
injuries and accidents .
Warning
► DRAFT CONTROL LEVER
Soil engaging implements can be set for
precision work by using draft control. By
mounting the lever forward, the depth in-
crease. By moving the lever backward, the
depth decreases.
Draft control Lever
Free Floating
Scope of Draft control
Ascent
