TYM T454HST - Page 95

4 - 19
SECTION B
4
GAP ADJUSTMENT

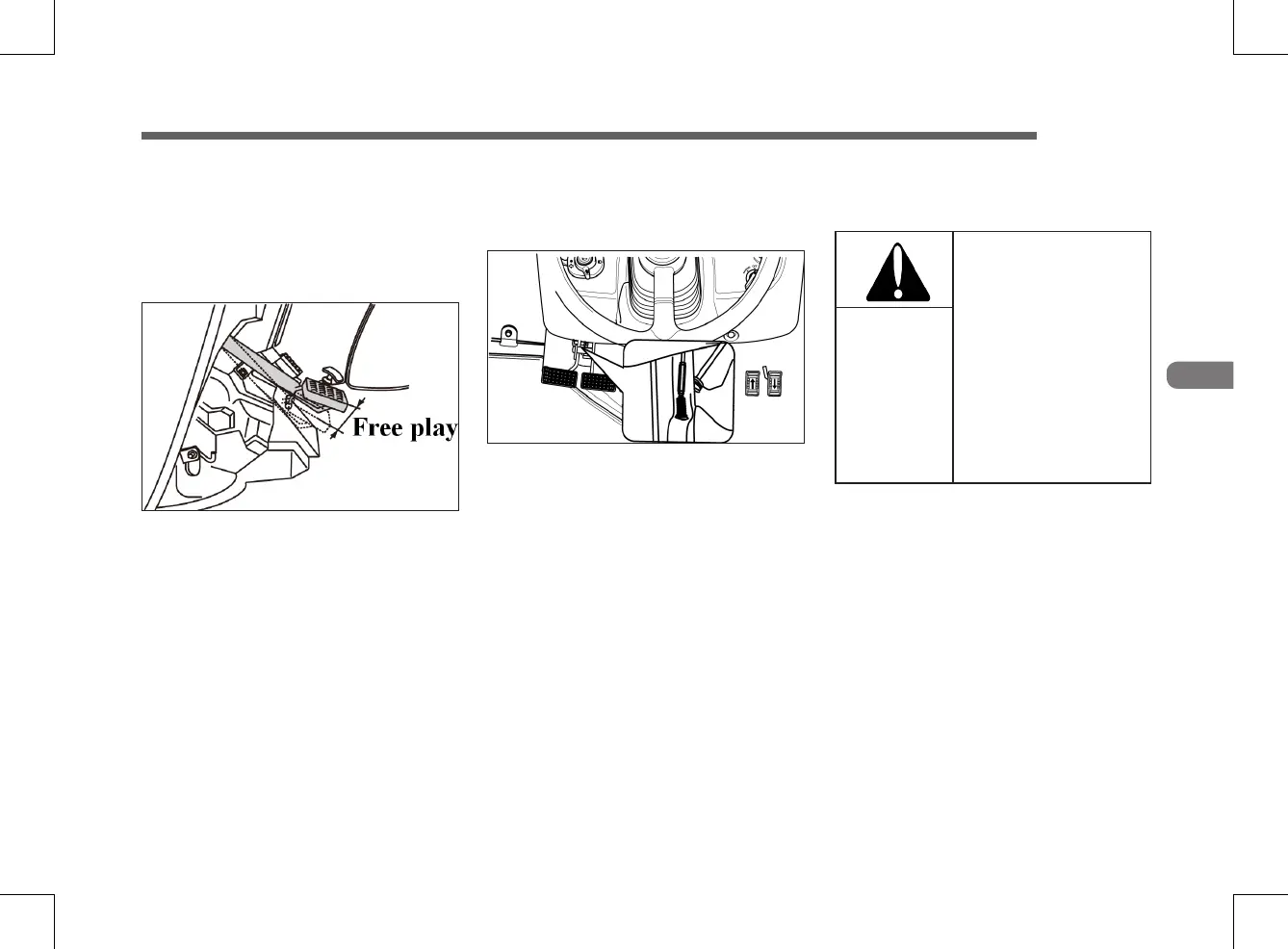

► ADJUSTING THE BRAKE
Using the brake over a period of time will in-
crease the free play.
The correct free play of the pedal is 0.78~1.18
in To adjust, loosen the locknut on the turn-
buckle and adjust.
Check the adjustment and tighten the locknut
if the free play is correct.
►ADJUSTING METHOD
Loosen the locknuts to adjust the brake.
Turning counterclockwise to increases the free
play, or turning clockwise to decreases.
Tighten the locknut and conrm to x the Nuts.
Check that the free play is correct and the same
on both pedals to ensure even braking
Uneven adjustment of the
left and right pedal will
result in one sided braking
when the pedals are con-
nected and can cause seri-
ous accidents, especially at
high speeds.
Double check to ensure
free play is the same on
both pedals
Caution
