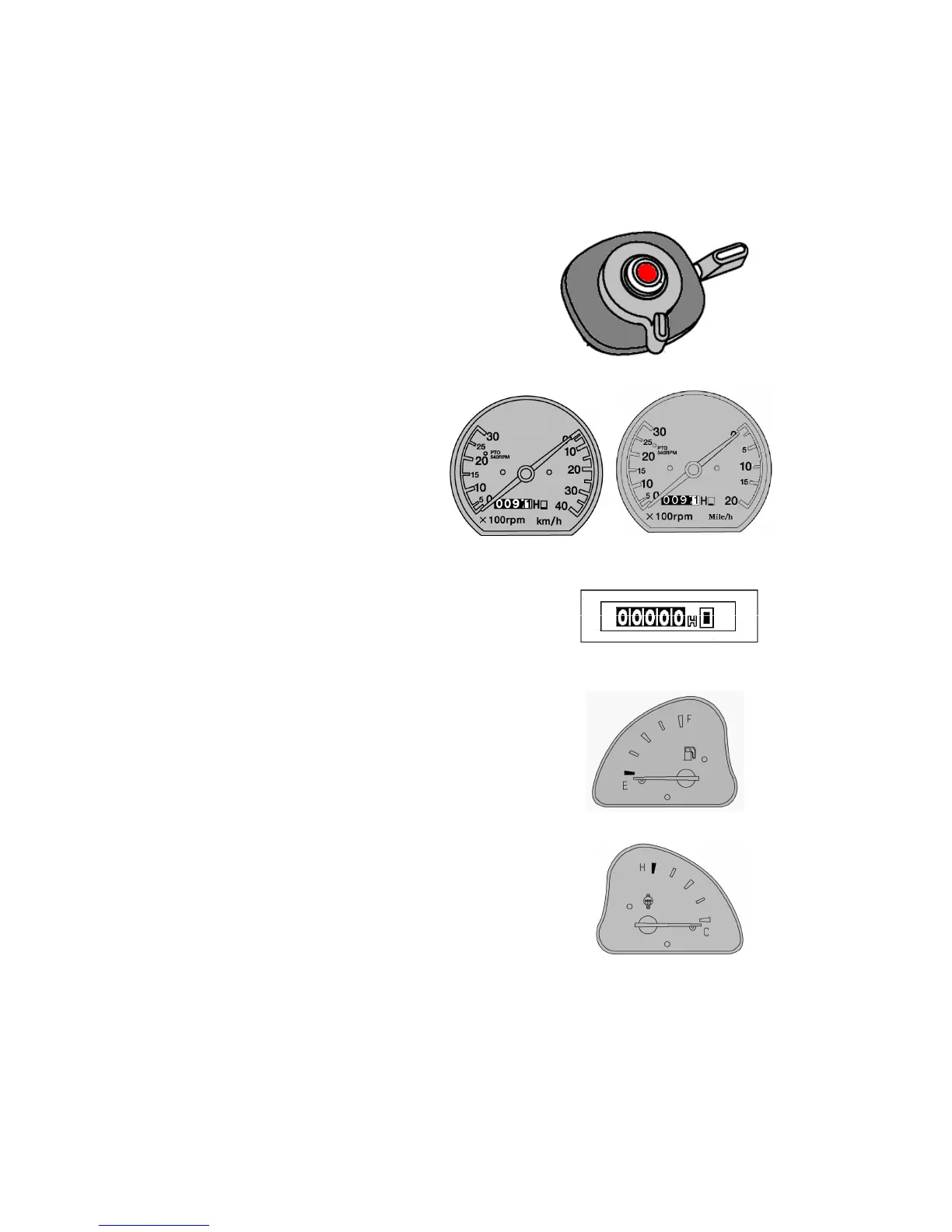

►LIGHT SWITCH, INDICATORS AND HORN
High and low beam are operated On the main switch
Position 1. High beam
Position 2. Low beam
►TACHOMETER
This meter shows the revolutions of the
engine and the PTO shaft as well as the
travel speed in top gear
(1) Right needle
Indicates speed in top gear.
(2) Left needle
Indicates engine revolutions
►HOUR METER
Mile/hourKm/hour
35
The hour meter consists of digits with the last
digit indicating 1/10
th
of an hour
►FUEL GAUGE
Shows the amount of fuel in the tank when the
ignition switch is ON
►WATER TEMPERATURE GAUGE
Shows the water temperature with the ignition
switch ON
C is low to normal temperature
H is high temperature
If the pointer is in the red H segment the engine is
overheating.
Refer this book to rectify the problem
