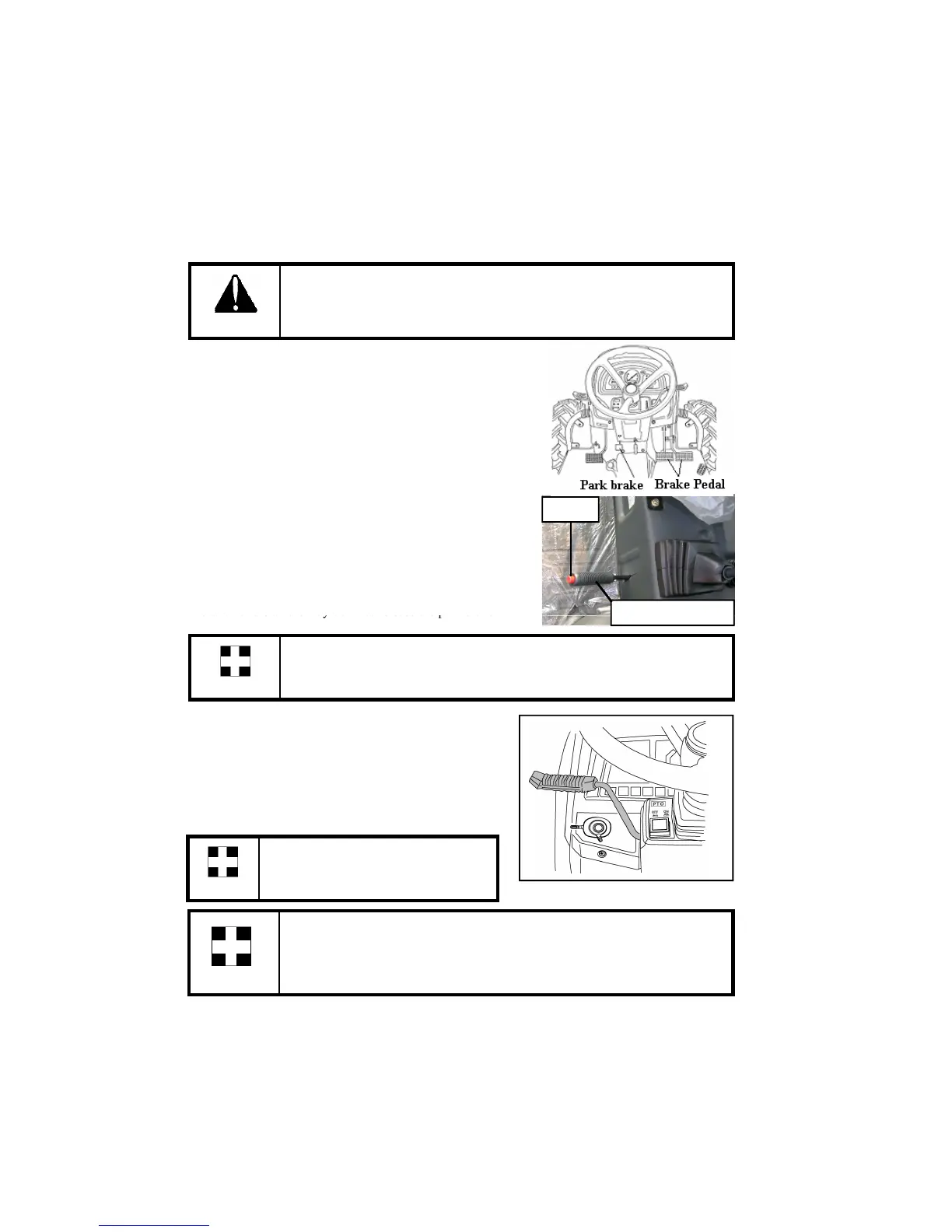

► BRAKE PEDAL
Right and left brake pedals are provided to assist in turning the tractor in the field.
A connecting latch is provided to connect the right and left brake pedals for high
speed or road use. In the interest of safety always use it on the road or at high
speed as using one side only can cause rollovers. When servicing the tractor
ensure that the adjustment on both sides in the same.
►
►►
► Park brake - Pedal type
1. To engage the park brake, at first depress the brake pedals
down, and push the park brake pedal down. At this time,
Release the brake pedal first, then to be locked the park
brake pedal.
2. To release the Park brake, depress the brake pedals again.
►
►►
► Park brake - handle type - If Equipped
1. Lift brake handle up to set the park brake.
2. Lift park brake handle slightly until park brake release
button can be depressed. Hold button in and lower park
Button
Caution
40
Traveling with the park brake on will damage the brakes. And To prevent damage
to the park brake pedal, make sure that brake pedals are fully depressed before
push the park brake pedal down.
important
►
►►
►Shuttle shift lever
This control allows shifting from forward to reverse &
reverse to forward. When stationary set the lever to N for
neutral
① Push the lever away from the driver engages forward.
② Pulling the lever towards the driver engages reverse.
Press clutch pedal fully before
operating shuttle shift lever.
important
When changing from forward to reverse or back to forward again while in high
range make sure the tractor comes to a stop before changing direction. Failure to
do so is likely to result in damage to the mechanism and place the driver at risk of
injury.
important
