Operate the shuttle shift only while seated on the tractor.
Do not use the shuttle shift lever to start the tractor for towing or traveling uphill,
use the clutch instead.
Always stop the tractor before getting off.
Caution
Ensure Forward/Reverse lever is set to neutral position,
When the machine is stopped or Before starting the Engine.
Drive direction can be changed without depressing the clutch pedal.
[A] direction – Forward Drive
Push the Power Shuttle Lever forward to select front drive direction
[B] direction – Rearward Drive
Pull the Power Shuttle Lever reverse to select rearward drive direction

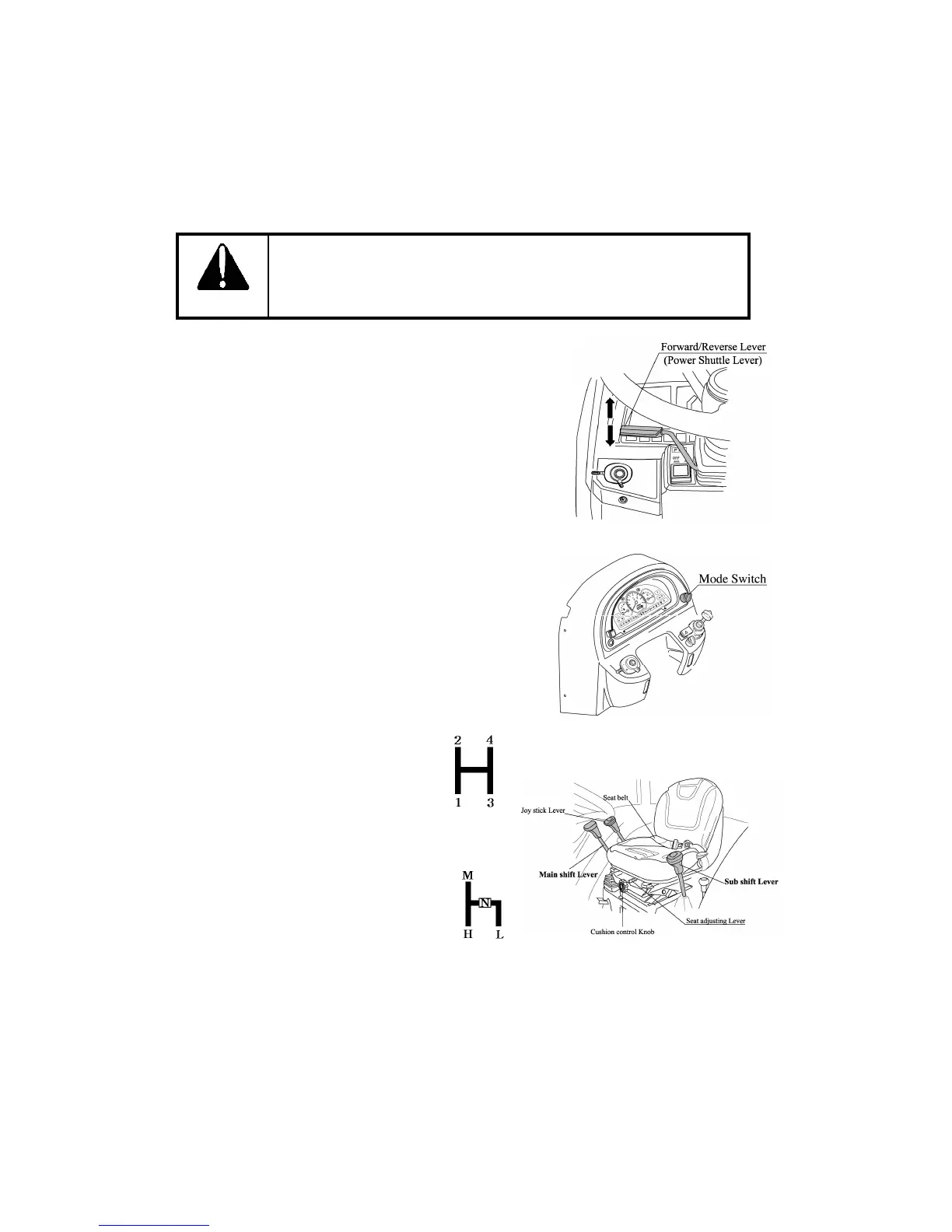

▶Power Shuttle Lever – If Equipped.
A
B
▶Mode Switch
This switch is situated up the starting key location on the dash panel.
There are three positions marked for this switch.
41
▶Main gear lever
This lever can be shifted by using the clutch, both
when the tractor is stationary or mobile.
It is located on the RHS of the driver seat.
▶ Sub gear lever(Linear shift lever)
Operate the sub gear lever using clutch to select the
appropriate speed for different applications.
It is located on the LHS of driver seat.
Main gear lever
Sub gear lever
(Linear shift lever)
Mode 1 : Operating without the implements
(Traveling on the normal road)
Mode 2 : Operating with the implements (Light load)
Mode 3 : Operating with the implements (Heavy load)
