1. Choose a speed range to match work application:
A- Low speed/high power operations such as tilling hard soil, mowing high grass or positioning backhoe.
B- Operations including moderate tilling, hauling, and grass mowing.
▶ The range shift lever (A) provides three speed ranges. The gear shift lever (B) provides four gear
positions. The reverse lever (C) controls travel direction. The creep shift lever (D) provides two gear
positions.
Use all four levers in different combinations to achieve 24 forward and 24 reverse speeds.
Machine motion must stop and the clutch pedal must be depressed before changing ranges. Gear may
be changed while machine is in motion if clutch pedal is completely depressed.
Avoid damage!
Select the proper speed range and gear for the job.
• The machine maybe operated in any gear with engine speeds at 950-2600 rpm.
Within these limits, the engine can be placed under varying load operations.
• Never overload engine by lugging machine at low idle speeds.
• Raise engine speed the match expected loads. If a slight increase engine rpm occurs
simultaneously with moving hand throttle lever forward, the engine is not overloaded.
important
Do not operate gear levers without stopping the tractor & without using the clutch.
important

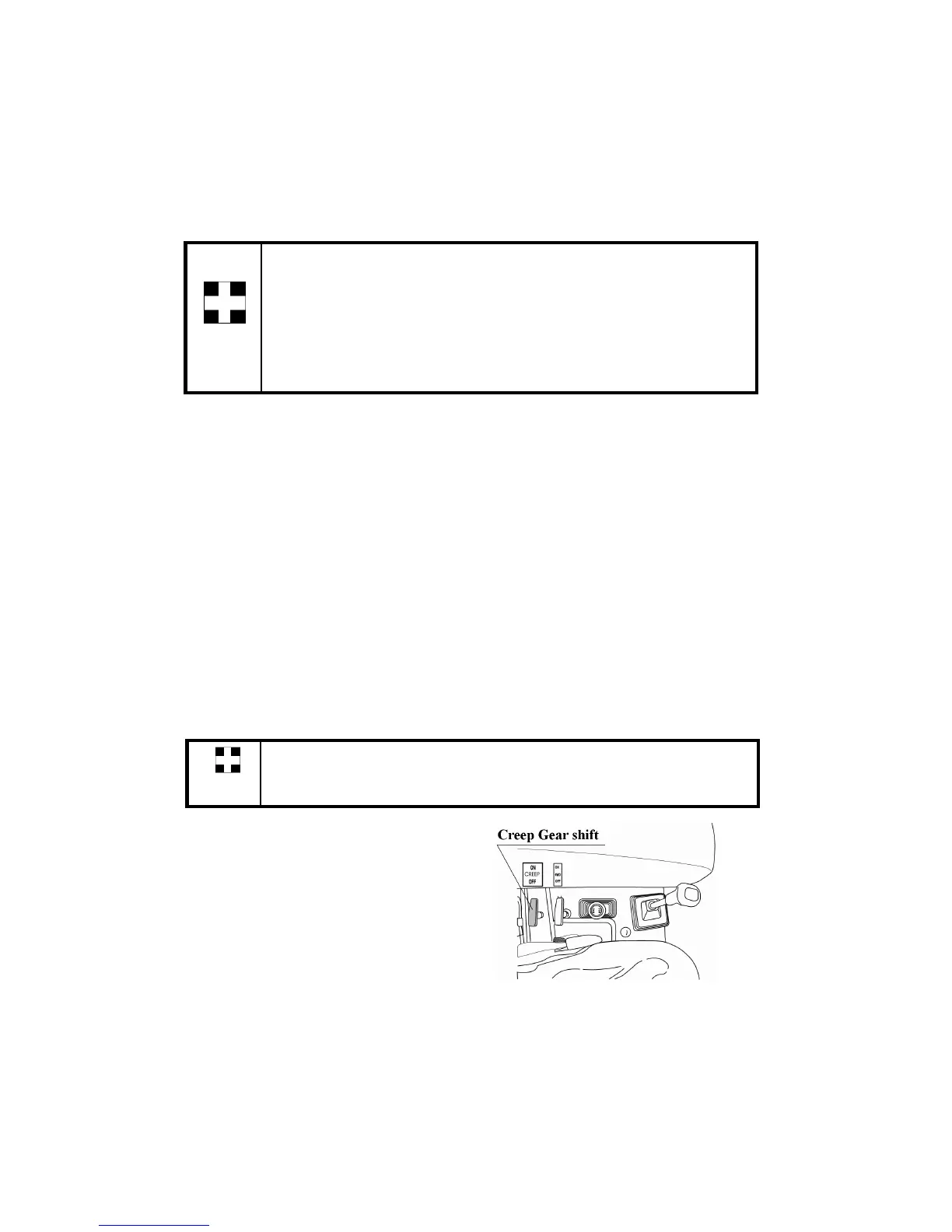

▶Creep gear shift lever
Shift the creep shift lever at ON to high
speeds and shift it OFF to obtain low speeds.
The shifting requires clutch operation.
2. Choose a gear that matches the immediate power/speed requirements:
1st Gear – High power, low speed operations.
2nd Gear – Medium power, moderate speed operations.
3rd Gear – Low power, moderate speed operations.
