TypeS BT57132 User Manual

4
Please charge and test the Camera / Monitor before you install on your vehicle.
1. Fully charge camera. Fold back camera power port plug and insert included charging cable.
Most AC wall adapters will work with the USB charging cable.
2. Plug in monitor, power on camera, and test connection. (Camera and monitor come pre-paired)

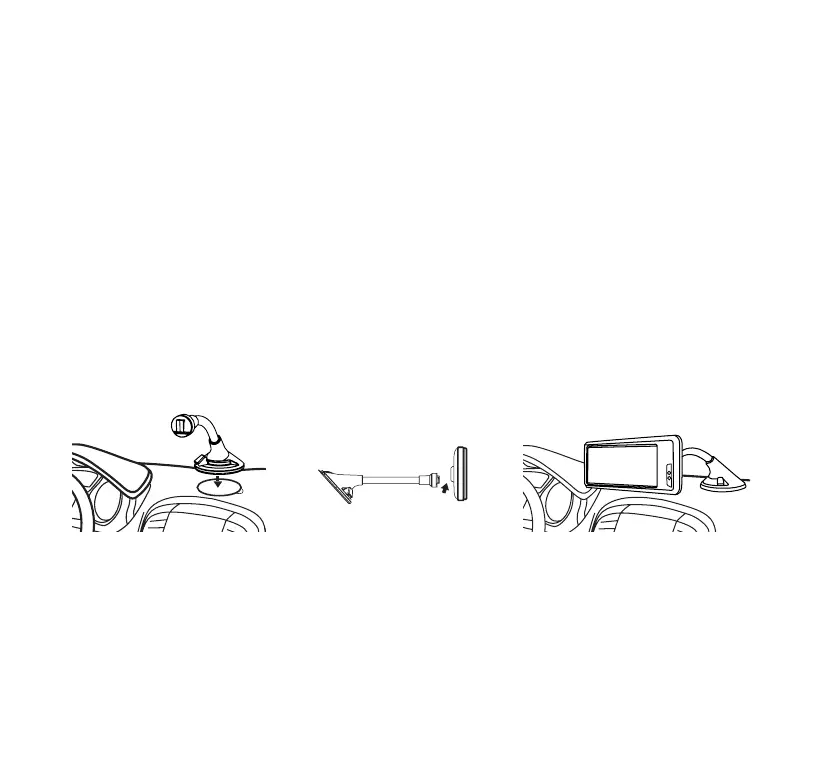

1. Remove the backing tape on the Dash Mount and attach it to the dashboard. Place the suction
cup of the Windshield Mount on top of the Dash Mount and push the knob counter clockwise to
lock in place.
2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position.
3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface
of the dashboard in order to reduce vibration rattling.
DASH MONITOR INSTALLATION  DASH MOUNT
1. 2. 3.
5. INSTALLATION GUIDE
4. BEFORE YOU INSTALL

TypeS BT57132 Specifications

General

Brand	TypeS
Model	BT57132
Category	Automobile Electronics
Language	English
