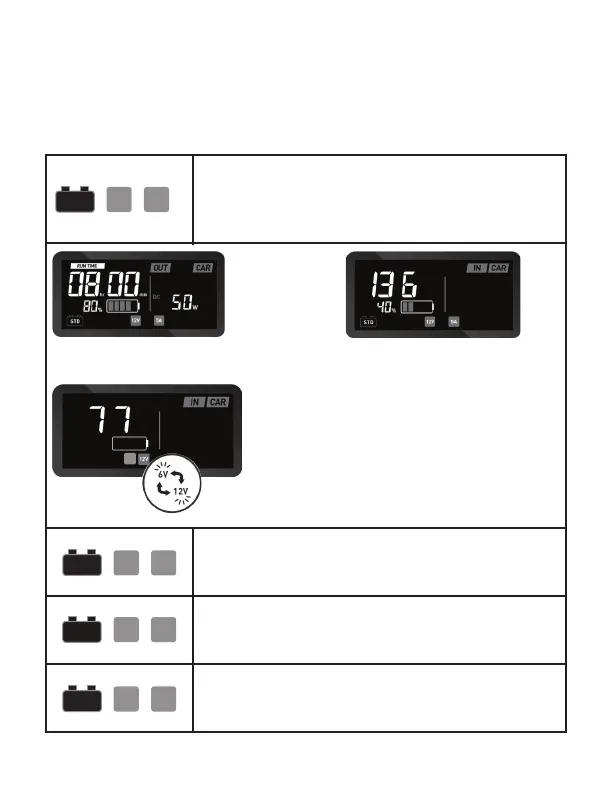

D. CAR Modes (Car Battery Charging Modes)
When car battery clamps are connected to battery terminals and the SAE
connector is plugged into Output Port for 6V/12V Battery Charging, the CAR
icon pops up automatically on the display. Press SELECT button once to
run through the charging modes below.
DIFFERENT TYPES OF BATTERIES CAN BE SELECTED MANUALLY ONLY.
For charging 12V Lead-acid batteries rated at 1A
For charging 12V Lead-acid batteries rated at 5A
For charging 12V AGM batteries rated at 5A
For charging 6V Lead-acid batteries rated at 5A
STD
12V
5A
12V 5A
STD
6V 5A
STD
12V
1A
12V Lead-acid battery being charged at rated 5A Voltage of Lead-acid battery is measured at 13.6V
If6Vor 12V ashes alternatively it means thattheconnected battery is
either a discharged 12V battery (down to roughly 7.6-10.5V) or a fully
charged 6V battery. The charger is trying to determine which kind of battery
has been connected. After 1-2 minutes the charger will determine whether
the battery is a 6V or 12V battery and it will either perform a maintenance
charge for a 6V battery or start charging for a 12V battery.
Test Mode
NOTE: If you are sure the connected battery is a 12V battery, press and hold
the SELECT button for 3 seconds to change to 12V Charging Mode.
PLEASE ENSURE 12V BATTERY IS SELECTED FOR 12V CHARGING
MODE TO AVOID ANY DAMAGE TO THE PRODUCT AND/OR CAR
BATTERY CONNECTED IF USED IMPROPERLY.
6V
AGM
