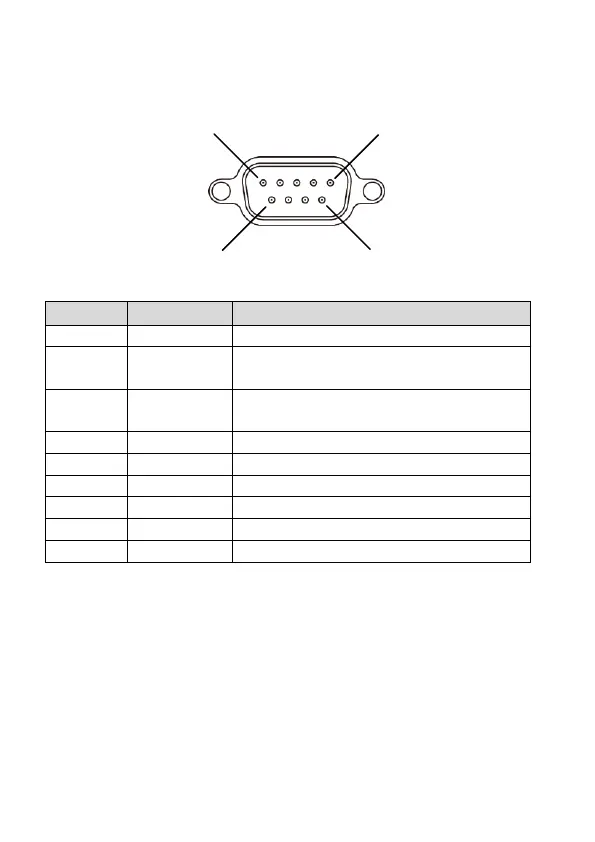

2. RS-232 Pin Assignment
Pin
Signal
Description
1
N.C.
2
TXD
XON/XOF Handshake
(Control codes transmission).
3
RXD
Data transmission (the printer
receives data from the HOST)
4
N.C.
5
GND
Ground
6
DTR
Printer Status
7
N.C.
8
RTS.
Printer Status
9
N.C.
6
5
9
1
