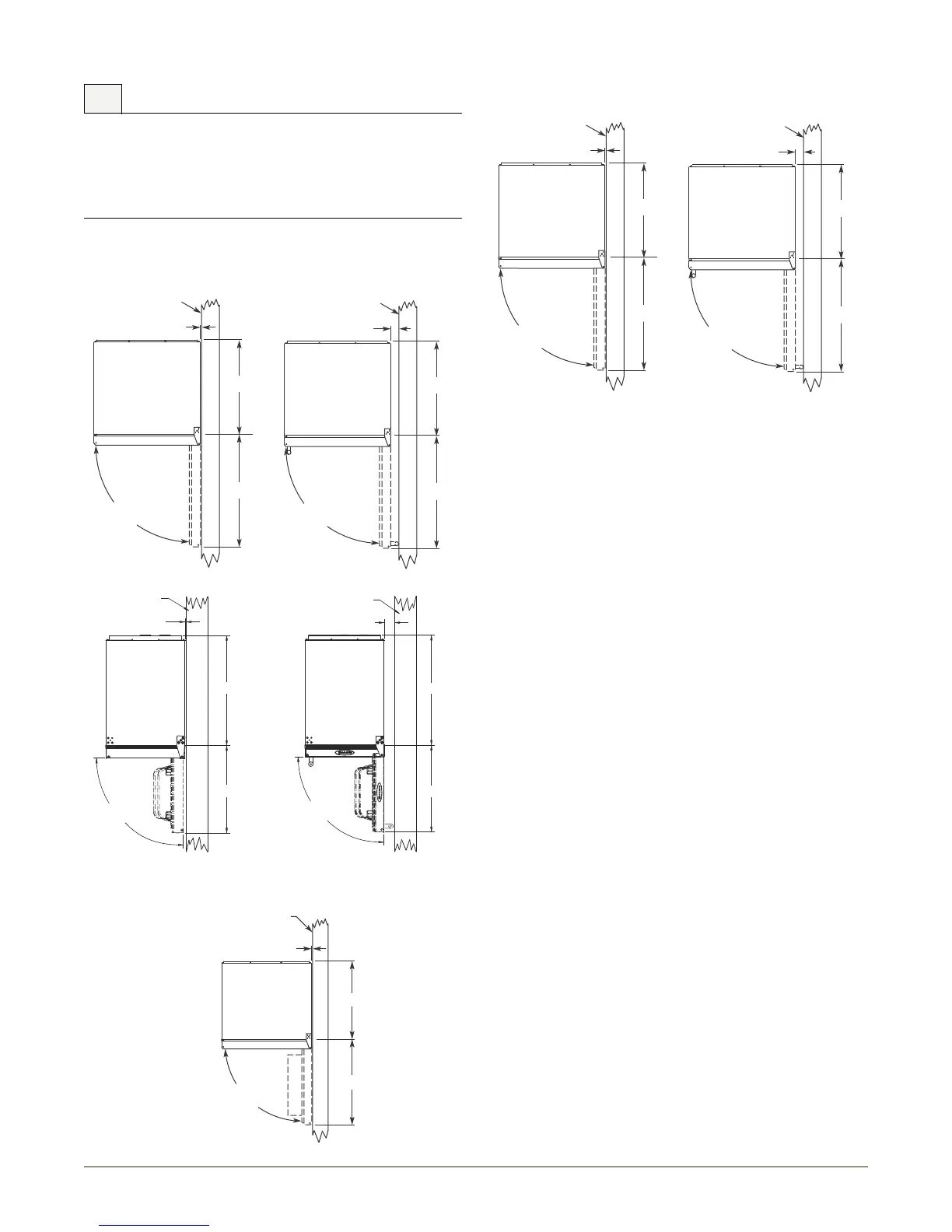

Door Swing Dimensions 6
6 Door Swing Dimensions
All units have a zero clearance for the door to open 90°. U-Line
recommends a minimum door clearance of 2" to accommodate
the handle if the unit is installed next to a wall or similar type of
structure.
Non stainless 1175 or 1115 Wine Captain® models must
have a full 135° available for door swing.
Other Site Requirements
Side-By-Side Installation
For a complete refreshment center, install two units side by side:
Cut-out width for a side-by-side installation is the total of the
widths listed under Cut-Out Dimensions in each unit’s Installation
Guide.
No trim kit is required. However, 1/4-inch space needs to be
maintained between the units to ensure unobstructed door swing.
Units must operate from separate, properly grounded electrical
receptacles placed according to each unit’s Electrical Specifications
Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A
circuit (normal household current).
Environmental Requirements
The units are designed to operate between 50°F (10°C) and 100°F
(37°C). High ambient temperatures (100°F [37°C] or higher) may
reduce the unit’s ability to reach low temperatures.
For best performance, keep the unit out of direct sunlight and away
from heat generating equipment.
In climates where high humidity and dew points are present,
condensation may appear on outside surfaces. This is considered
normal. The condensation will disappear when the humidity drops.
1/4" Min.
Wall
90°
Door Swing
20-7/16"
22-3/8"
1/4" Min.
Wall
90
Door Swing
20-7/8"
25-1/2"
Wall
2" Min.
90
Door Swing
20-7/8"
25-1/4"
Wall
1/4" Min.
20-7/8"
16-1/2"
Door Swing
Wall
2" Min.
20-7/8"
16-1/2"
Door Swing
1175 & 1075 Series
(Without Handle)
(With Handle)
1115 Series
(Without Handle)
(With Handle)
29 Series
21-1/8"
25-3/16"
25-5/16"
21-1/8"
1/4" Min.
Wall
90
Door Swing
Wall
2" Min.
90
Door Swing
ADA24R(GL)(SB) Series
(Without Handle)
(With Handle)
To Next Page
