U-Line 1000 SERIES - Unit Wire Diagram; Electrical Schematic Overview

USER GUIDE
Wire Diagram 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Wire Diagram

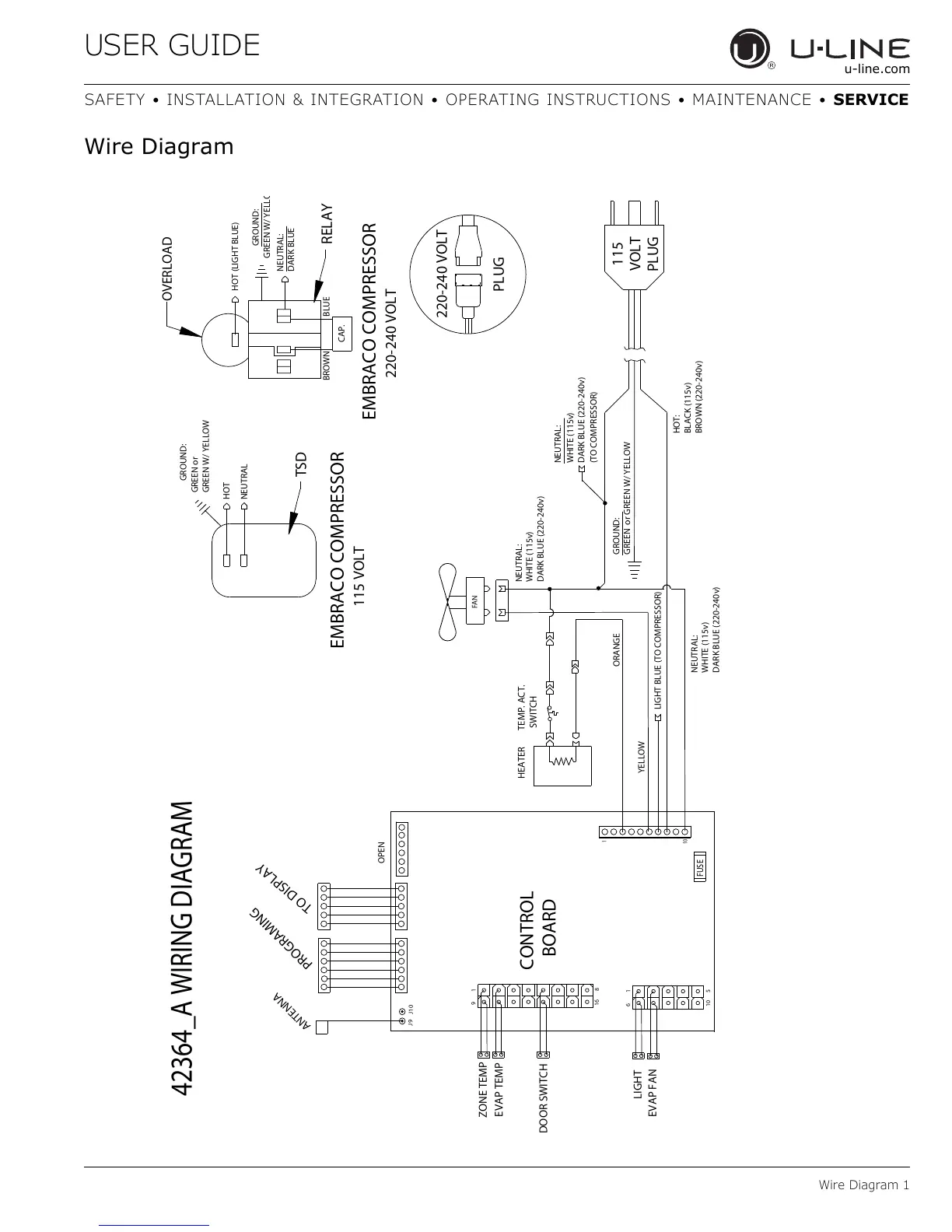

42364_A WIRING DIAGRAM
GROUND: GREEN or GREEN W/ YELLOW
HOT: BLACK (115v) BROWN (220-240v)
NEUTRAL:
LIGHT BLUE (TO COMPRESSOR)
115
VOLT
PLUG
NEUTRAL: WHITE (115v) DARK BLUE (220-240v) (TO COMPRESSOR)
WHITE (115v) DARK BLUE (220-240v)
FAN
ORANGE
NEUTRAL: WHITE (115v) DARK BLUE (220-240v)
NEUTRAL
HOT
GREEN or GREEN W/ YELLOW
GROUND:
TSD
1
10
CONTROL
BOARD
ZONE TEMP
FUSE
16
8
9
1
6
1
10
5
EVAP TEMP
DOOR SWITCH
LIGHT
PROGRAMING
TO DISPLAY
EVAP FAN
OPEN
J9
J10
ANTENNA
220-240 VOLT
PLUG
HEATER
HOT (LIGHT BLUE)
OVERLOAD
EMBRACO COMPRESSOR
220-240 VOLT
RELAY
GREEN W/ YELLO
GROUND:
NEUTRAL: DARK BLUE
CAP.
BROWN BLUE
EMBRACO COMPRESSOR
115 VOLT
YELLOW
TEMP. ACT. SWITCH
32
