U-Line 1000 SERIES User Manual

U-1224FZRINT-00A
Item Description U-Line P/N
1 Anti tip bracket w/screws 80-54239-00
2 Back panel 80-54204-00
3 Basket 80-54803-00
4 Basket, lower 80-54802-00
5 Compressor electricals only 80-54800-00
6 Compressor w/electricals 80-54799-00
7 Condenser assembly 80-54801-00
8 Condenser fan blade 80-54798-00
9 Condenser fan w/screws 80-54797-00
10 Control housing 80-54273-00
11 Defrost thermostat 80-54812-00
12 Display module 80-54236-00
13 Door assembly w/hinges 80-54316-00
14 Drain pan w/double sided tape 80-54217-00
15 Drain pan, evaporator 80-54811-00
16 Drier 80-54055-00
17 Evaporator assembly 80-54813-00
18 Evaporator cover w/screws 80-54808-00
19 Evaporator fan 80-54807-00
20 Evaporator fan cover w/screws 80-54809-00
21 Gasket, for injection molded 80-54213-00
22 Grille w/screws 80-54267-00
23 Heater 80-54810-00
24 Hinges(2) w/screws 80-54208-00
25 LED light strip and cover assy 80-54000-00
26 Leg Levelers (4) 80-54201-00
27 Magnet w/bracket and screws 80-54250-00
28 Main board (no case or wires) 80-54008-00
29 Packaging 80-54209-00
30 Power cord 80-54795-00
31 Reed switch 80-54805-00
32 Slide assembly 80-54806-00
33 Thermistor (1 pc) 80-54006-00
34 Thermistor cover and pin 80-54237-00
35 Tool, leg leveler 80-54794-00
36 WIFI antenna 80-54804-00
37 Wire harness, board 80-54796-00

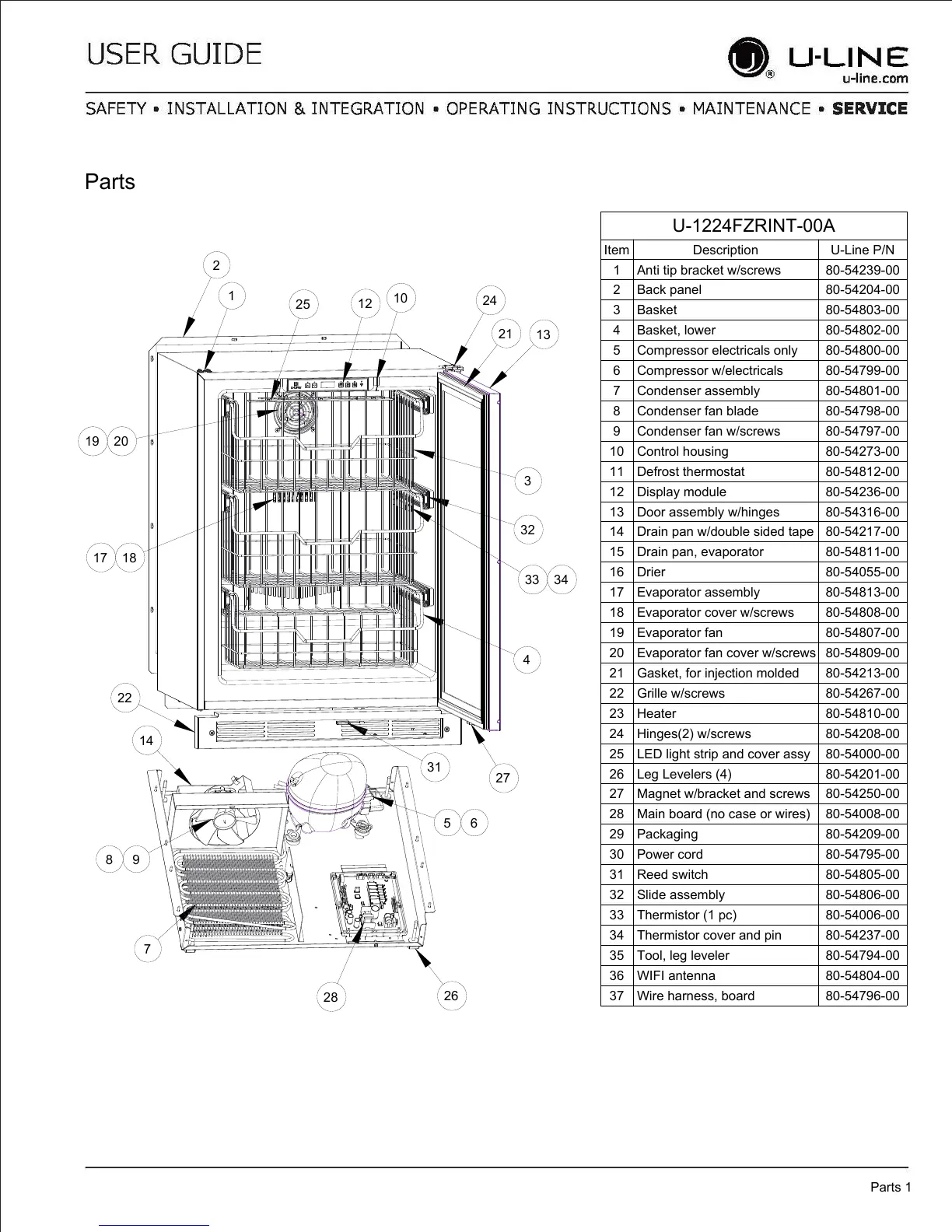

Parts
