U-Line 2115R Use And Care Guide

12 2115R, 2175R

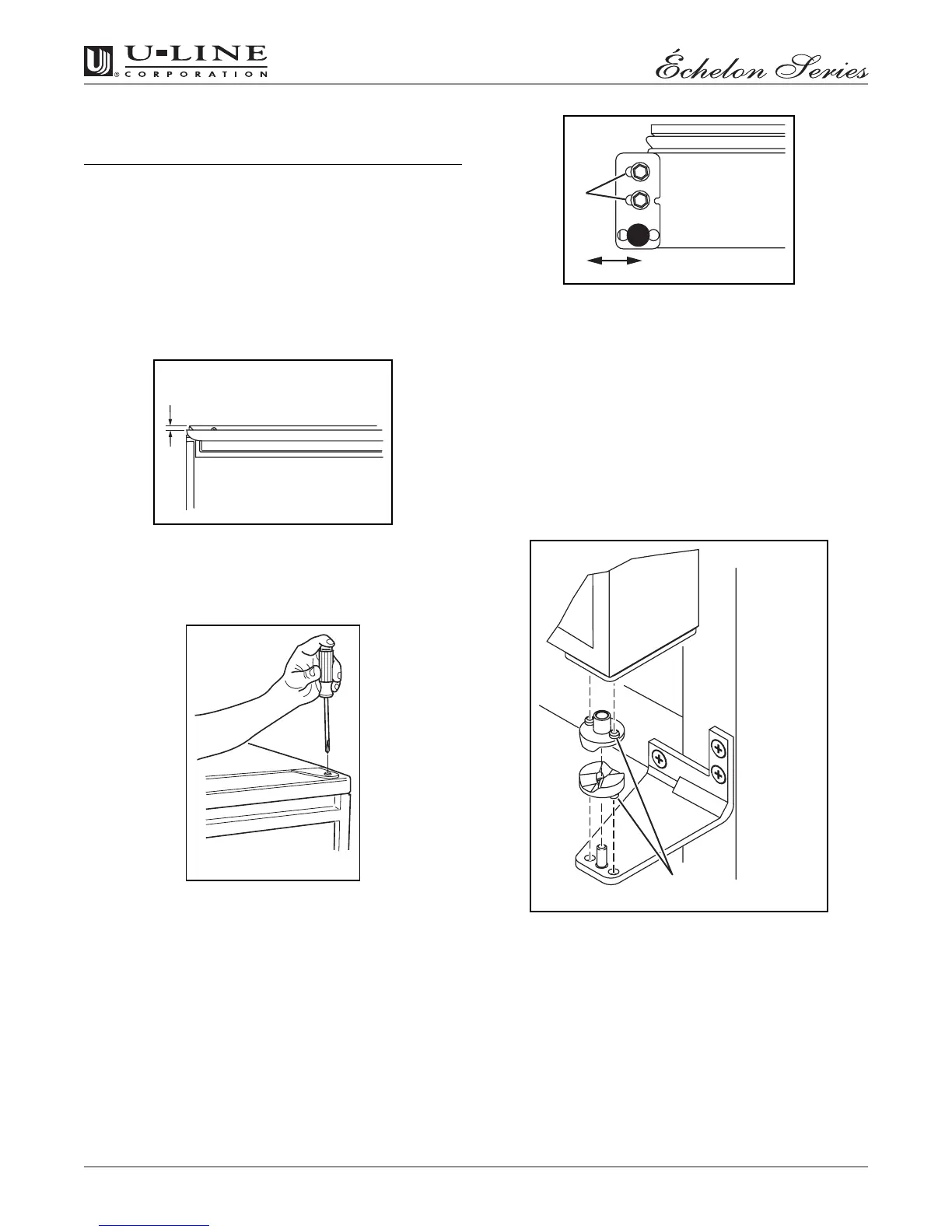

Door Alignment Check and Adjustment
IMPORTANTIMPORTANT
When properly aligned:
• The door will not be flush with the top of the
cabinet. The top edge of the door will be 1/8 in.
(3.175 mm) below the cabinet top.
• The door gasket will be firmly in contact with the
perimeter of the cabinet and not pinched on the
hinge side of the door.
The following procedure will correct for up to 1/4 in.
misalignment:
Figure 12
1. Compare the top edge of the door (opposite the
hinges) to the top edge of the cabinet (Figure 12) and
note the type (up or down) of adjustment needed.
Figure 13
2. Remove the top hinge pivot pin with a Phillips
screwdriver
(Figure 13) and lift door off bottom hinge
pin. Be careful not to lose the door closer insert sets.
Figure 14
3. Turn the door upside down and inspect the hinge plate
mounting holes.
• Your plate has slotted mounting holes (Figure
14, 1). Loosen but do not remove the two hinge
plate screws.
4. If door edge opposite the hinges needs to move up,
move plate toward outside of door
(Figure 14, 2) . If
door edge needs to move down, move plate toward
inside of door
(Figure 14, 3) . Repeat until top edge of
door is parallel with top of cabinet and tighten screws
securely (Figure 14, 1) .
Figure 15
5. After adjustment is complete, remove the door closers
from the bottom hinge, clean thoroughly and apply
petroleum jelly to the mating surfaces of the closers. Be
sure that bosses on closers
(Figure 15, 1) align with
holes in the door and bottom cabinet hinge plates.
Mount door and install top hinge pivot pin.
1/8"
(3.175 mm)
ULIN_0016_A
ULIN_0133_A
ULIN_0201_A
1
23
1
ULIN_0004_A
