U-Line 2115R Use And Care Guide

14 2115R, 2175R
5. Remove the two door closer inserts (Figure 20, 1) from
the existing bottom hinge and install as shown on the
new bottom hinge (Figure 19, 1) .
6. Remove existing bottom hinge (three screws) and
remount on opposite side TOP. Remove hinge screw pin.
7. Remove the plastic hole plug from the top of the door
to allow the pivot pin to be inserted in the new
location. Install the plug into the vacated hole on the
opposite side.

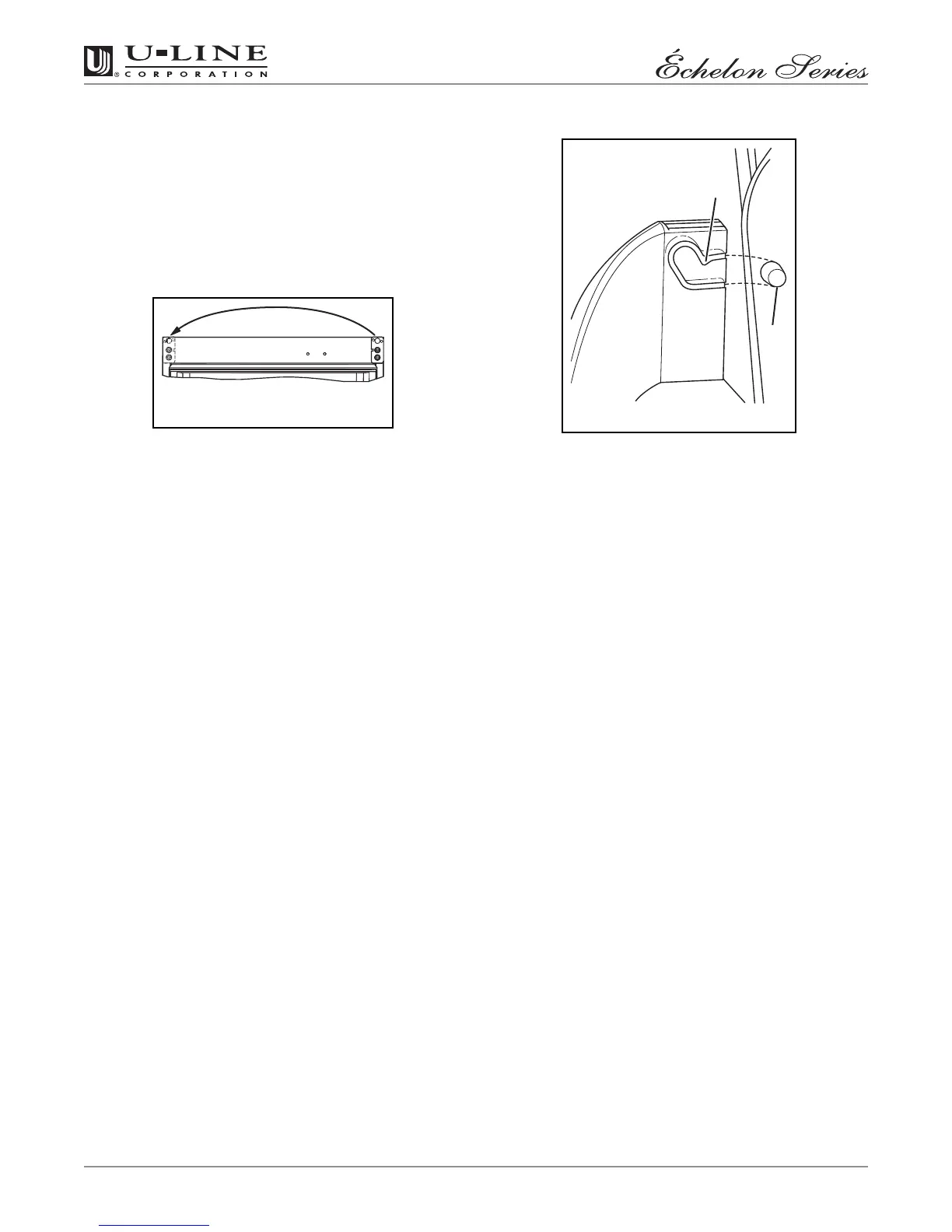

Figure 21
8. With bottom of door facing up, remove pivot plate
(two screws), flip over, and remount on opposite side of
door (Figure 21) . Be sure notch in plate faces
center.
9. Holding door upright with top of door tilted forward,
place hole of door pivot plate on bottom hinge screw
pin/closer inserts
(Figure 19, 1) .
10. Tilt top of door into position in top hinge and install top
hinge screw pin.
11. Install plastic screw plugs removed in Step 2 in old hinge
holes (three each, top and bottom).
Door Shelf Removal/Insertion
Figure 22
To remove the door shelf:
1. Grasp shelf in center, lift slightly, and tilt 15°-20°.
2. Carefully pull shelf off bosses (Figure 22, 2) .
To install the door shelf:
1. Holding shelf in center, align notches (Figure 22, 1) in
shelf with bosses (Figure 22, 2) in door.
2. Tilt shelf at a 15°-20° angle and slide onto bosses at the
desired location.
ULIN_0006_A
1
2
ULIN_0039_A
