U-Line 2224BEVS-00B User Guide

USER GUIDE
Wire Diagram 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

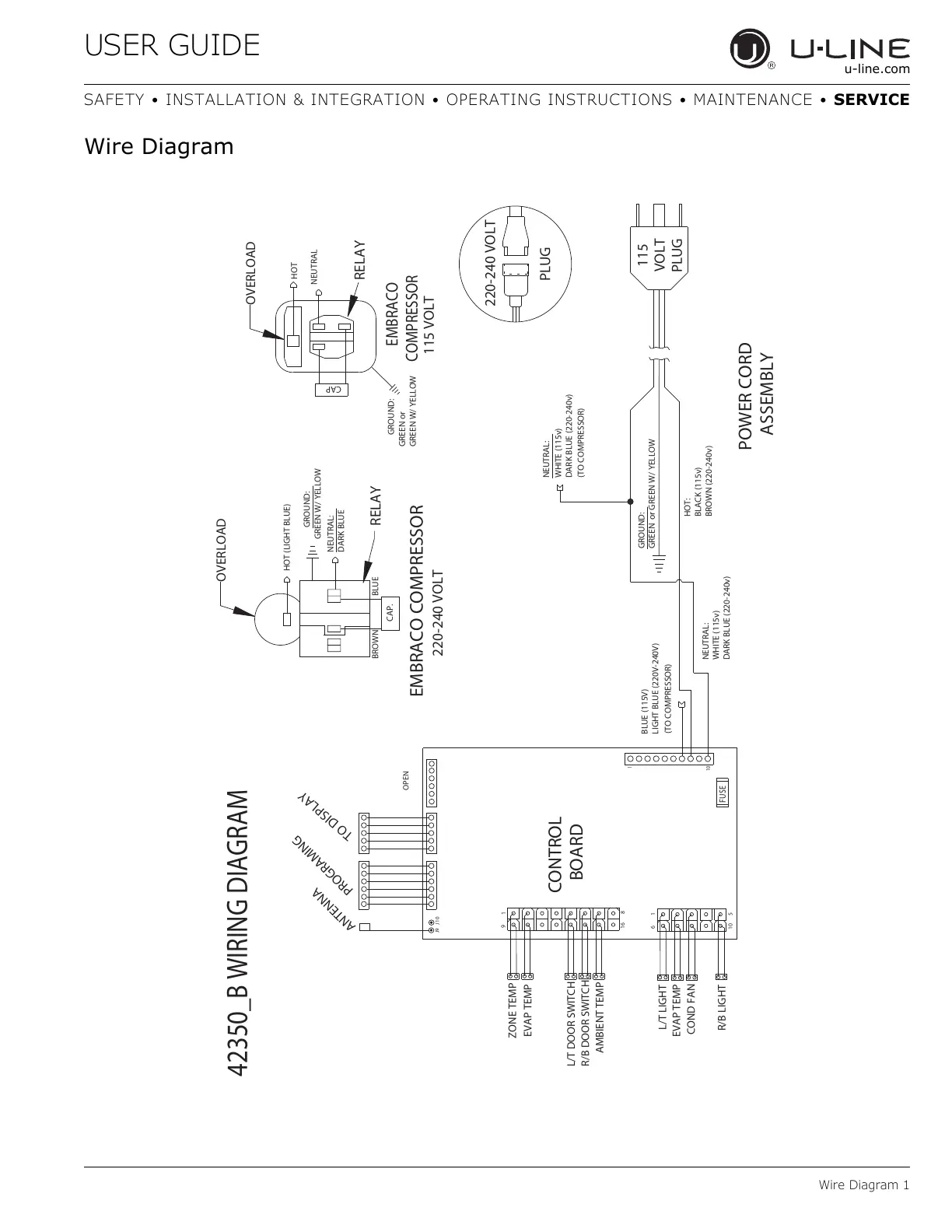

Wire Diagram
42350_B WIRING DIAGRAM
POWER CORD
ASSEMBLY
GROUND: GREEN or GREEN W/ YELLOW
HOT: BLACK (115v) BROWN (220-240v)
NEUTRAL
HOT
RELAY
EMBRACO
COMPRESSOR
GREEN or GREEN W/ YELLOW
GROUND:
115
VOLT
PLUG
220-240 VOLT
PLUG
OVERLOAD
NEUTRAL: WHITE (115v) DARK BLUE (220-240v) (TO COMPRESSOR)
NEUTRAL: WHITE (115v) DARK BLUE (220-240v)
BLUE (115V) LIGHT BLUE (220V-240V)
(TO COMPRESSOR)
1
10
CONTROL
BOARD
ZONE TEMP
FUSE
16
8
9
1
6
1
10
5
EVAP TEMP
L/T DOOR SWITCH
AMBIENT TEMP
R/B LIGHT
L/T LIGHT
COND FAN
EVAP TEMP
R/B DOOR SWITCH
CAP
PROGRAMING
TO DISPLAY
OPEN
ANTENNA
J9
J10
HOT (LIGHT BLUE)
OVERLOAD
EMBRACO COMPRESSOR
220-240 VOLT
RELAY
GREEN W/ YELLOW
GROUND:
NEUTRAL: DARK BLUE
CAP.
BROWN BLUE
115 VOLT

U-Line 2224BEVS-00B Specifications

General

Brand	U-Line
Model Number	2224BEVS-00B
Category	Refrigerator
Color	Stainless Steel
Finish	Stainless Steel
Defrost Type	Automatic
Energy Star Certified	Yes
Installation	Built-In
Door Swing	Reversible
Door Type	Glass
Shelving	Adjustable Glass
Temperature Control	Digital
