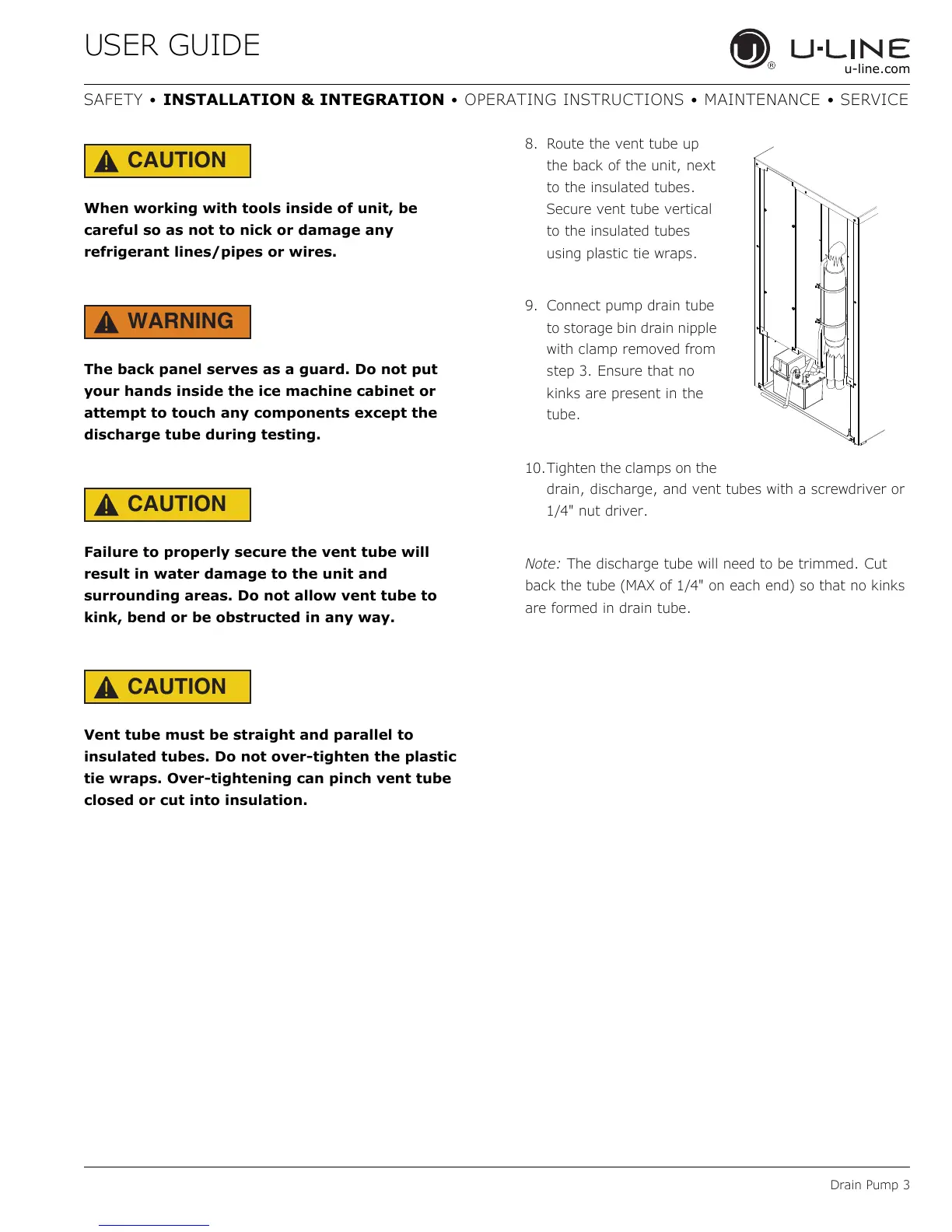

USER GUIDE
Drain Pump 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
CAUTION
!
When working with tools inside of unit, be
careful so as not to nick or damage any
refrigerant lines/pipes or wires.
WARNING
!
The back panel serves as a guard. Do not put
your hands inside the ice machine cabinet or
attempt to touch any components except the
discharge tube during testing.
CAUTION
!
Failure to properly secure the vent tube will
result in water damage to the unit and
surrounding areas. Do not allow vent tube to
kink, bend or be obstructed in any way.
CAUTION
!
Vent tube must be straight and parallel to
insulated tubes. Do not over-tighten the plastic
tie wraps. Over-tightening can pinch vent tube
closed or cut into insulation.
8. Route the vent tube up
the back of the unit, next
to the insulated tubes.
Secure vent tube vertical
to the insulated tubes
using plastic tie wraps.
9. Connect pump drain tube
to storage bin drain nipple
with clamp removed from
step 3. Ensure that no
kinks are present in the
tube.
10.Tighten the clamps on the
drain, discharge, and vent tubes with a screwdriver or
1/4" nut driver.
Note: The discharge tube will need to be trimmed. Cut
back the tube (MAX of 1/4" on each end) so that no kinks
are formed in drain tube.
