Prepare Site 3
4 Prepare Site
Your U-Line product has been designed for either free-standing or
built-in installation. When built-in, your unit does not require
additional air space for top, sides, or rear. However, the front
grille must NOT be obstructed and clearance is required for an
electrical connection in the rear.
IMPORTANTIMPORTANT
• Unit can NOT be installed behind a closed cabinet door.
• If you would like to align the face of the unit with other adjacent
cabinet doors, you may need to alter the wall just behind the
drain connection on the unit to accommodate the drain.

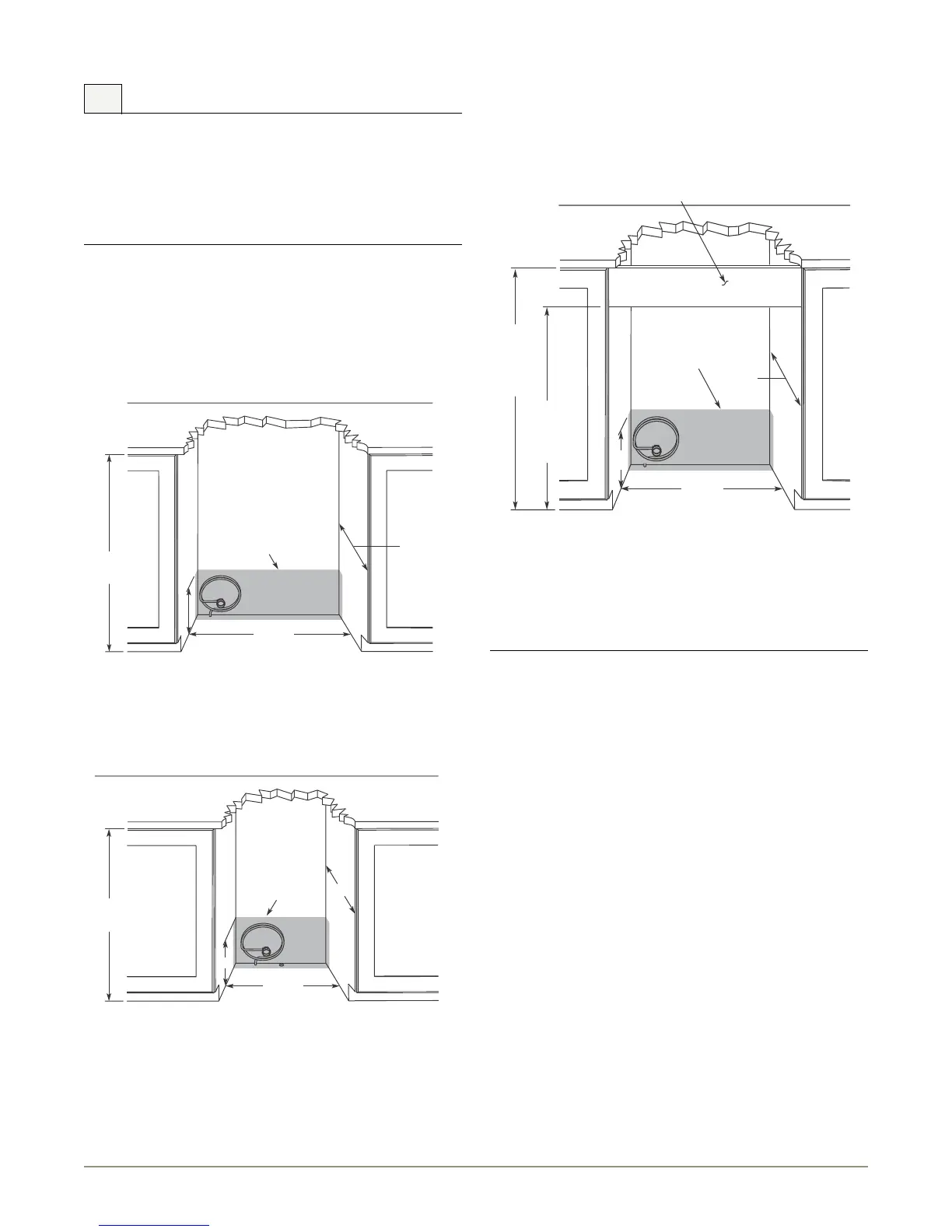

Cut-Out Dimensions
(CLR)CO21 & CO11 Series
Follow the cut-out drawing. The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
CLR2160 Series
Follow the cut-out drawing The 15-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
8"
24"
Minimum
24-1/4"
See Electrical
Specifications
for Power Supply
34-1/4"
to
35-1/8"
See Electrical
Specifications
for Power Supply
34-1/4"
to
35-1/8"
15-1/4"
8"
24"
CO29 Series
Follow the cut-out drawing. The 21-1/16" width allows 1/4" for
ease in installation and removal of the unit. 24" is the counter
depth in most installations. The unit is 24" deep including the door
and handle.
IMPORTANTIMPORTANT
It is extremely important that this unit sits on a level
surface, as it does not have feet levelers. If it is not level,
the ice mold will not fill evenly.
8"
24"
Minimum
21-1/16"
See Electrical
Specifications
for Power Supply
Typical
Counter
Height
34-1/4"
to
35-1/8"
Cut-Out
Height
28-5/8"
to
28-7/8"
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
