U-Line Echelon 2075DWRRSS Supplementary Guide

Full overlay drawer panels completely cover the drawer frames and
handle to give a built-in appearance.
Table 1. Full Overlay Panel Dimensions
Panel Dimensions 23-3/4" wide X 14-3/4" high.

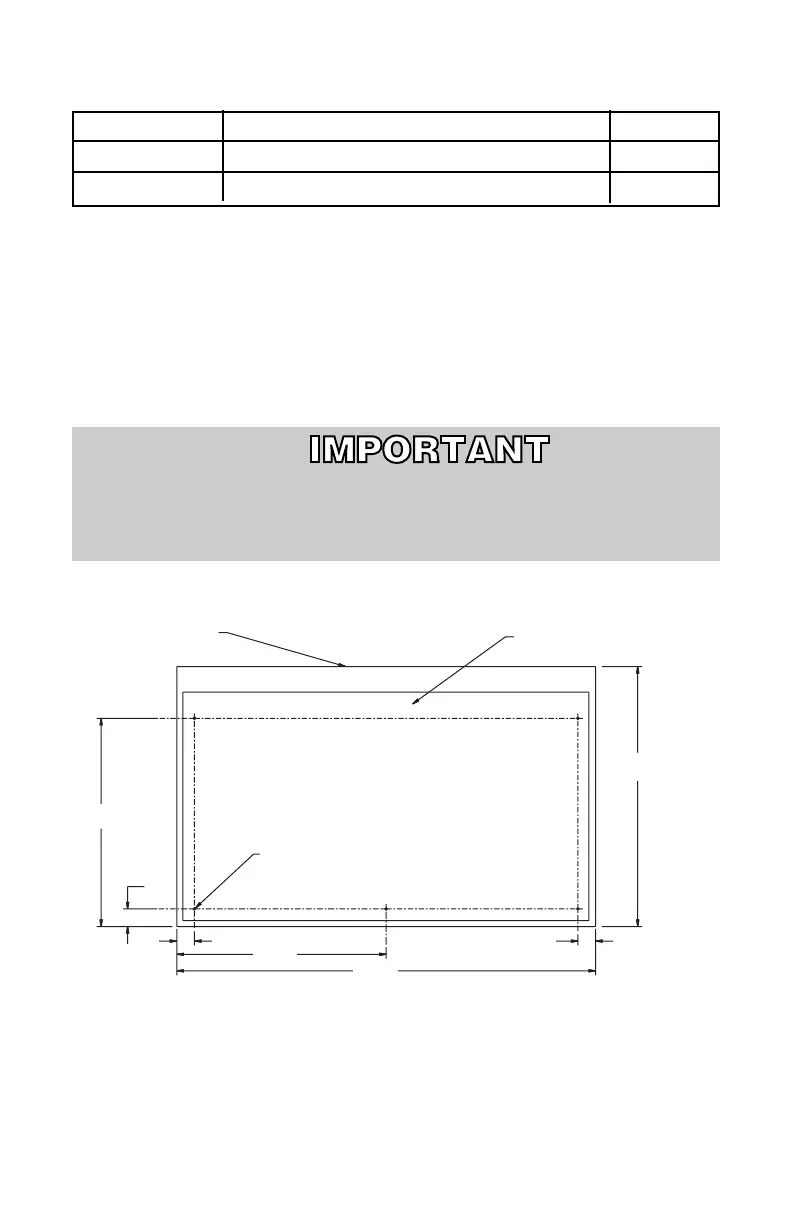

See Figure 1 for screw locations to mount panel to door.
• The total weight of both drawer panels must not weigh
more than 20 lbs.
• The thickness of the drawer panel must be 3/4".
Part Number Description Quantity
42120 Spacer Nylon 3/8 OD x .19 ID 5
42121 Screw #10 x 5/8 Round Head 5
OVERLAY PANEL KIT PARTS
14-3/4"
1"
1"
1"
11-13/16"
TOP OF WOOD PANEL
5/32" X 3/8" DEEP
5 PLACES
VINYL COATED
STEEL PANEL
23-3/4"
11-7/8"
DWR_OL_004b
Figure 1
