CHARGING THE BATTERY
WARNING: Before installing the battery turn key
to OFF position.
WARNING! Before removing the battery make
sure that the truck is completely powered down.
NOTE: When one green and one red LEDs are lit
charging is in progress. When two red LEDs are
lit charging is complete. Figure 5 shows the top
view of the charger base contact pins, make
sure to plug in the battery accordingly. If the
battery is not fully charged after more than five
hours contact Uline Customer Service.
BATTERY CHARGING
NOTE: When plugging in the battery on the
truck make sure that the contact pins on the
battery match those on the truck.
NOTE: With a lithium battery it is possible to
have some attenuation when used in a low
temperature environment. The operating
temperature for the lithium battery is between
14 –113° F.
1. Lift the battery out of the vehicle. (See Figure 5)
2. Insert the battery into the charging base.
(See Figure 6)
3. The charge indicator lights up. (See Figure 7)

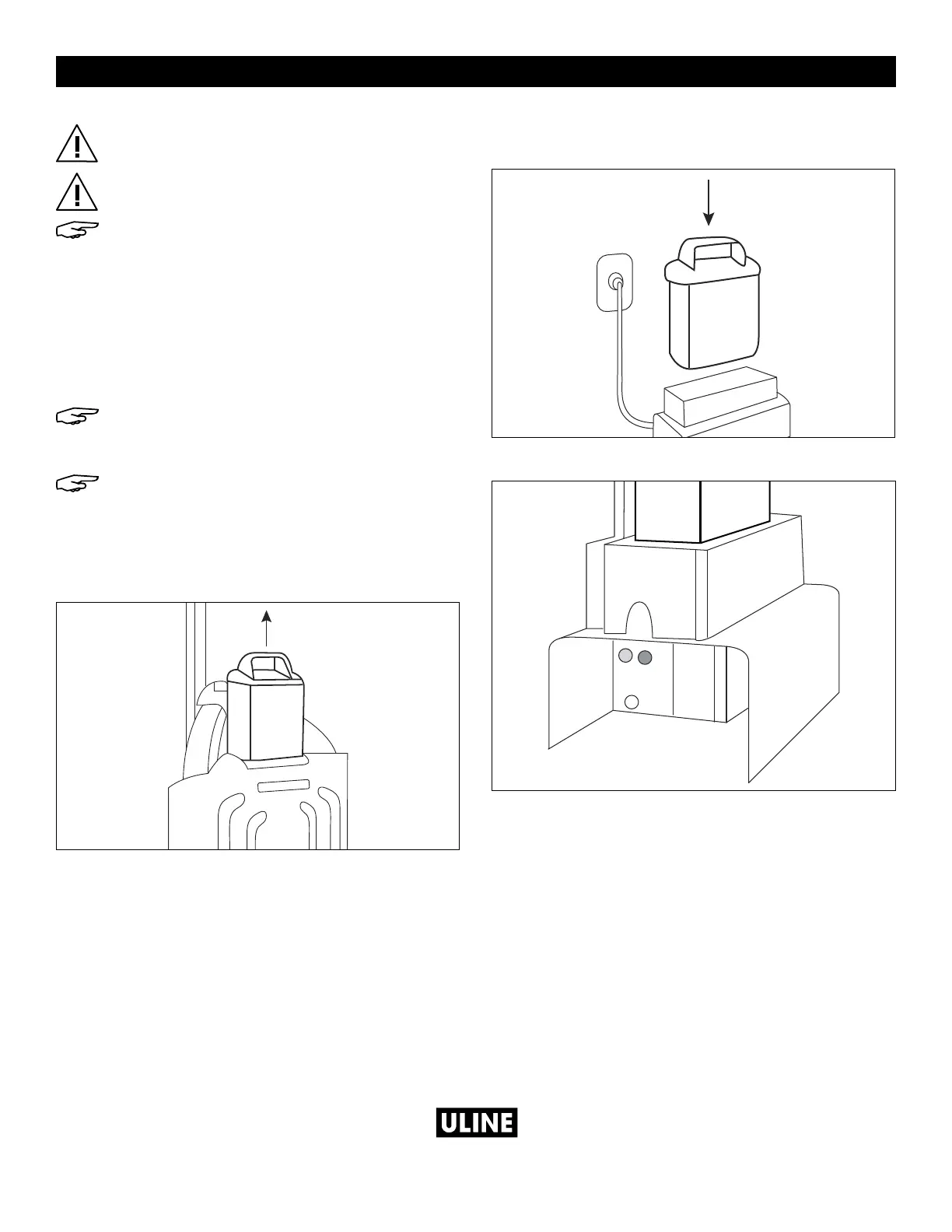

Figure 5
Figure 6
Figure 7
