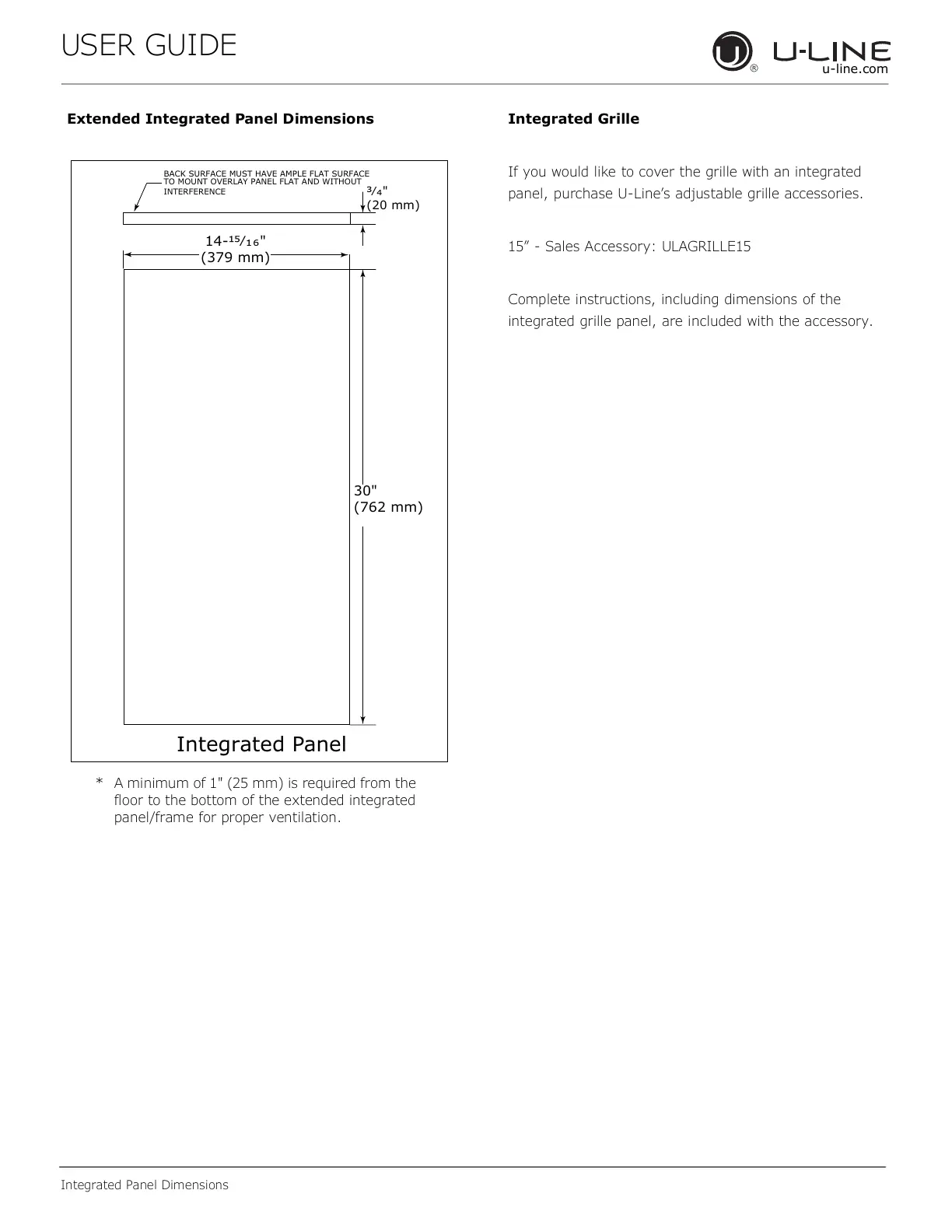

Integrated Panel Dimensions
u-line.com
Extended Integrated Panel Dimensions Integrated Grille
If you would like to cover the grille with an integrated
panel, purchase U-Line’s adjustable grille accessories.
15” - Sales Accessory: ULAGRILLE15
Complete instructions, including dimensions of the
integrated grille panel, are included with the accessory.
* A minimum of 1" (25 mm) is required from the
floor to the bottom of the extended integrated
panel/frame for proper ventilation.
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
Ώȟȯ"
(20 mm)
Integrated Panel
14-ΑȟȬȱ"
(379 mm)
30"
(762 mm)
