USER GUIDE
u-line.com
Reference Diagrams

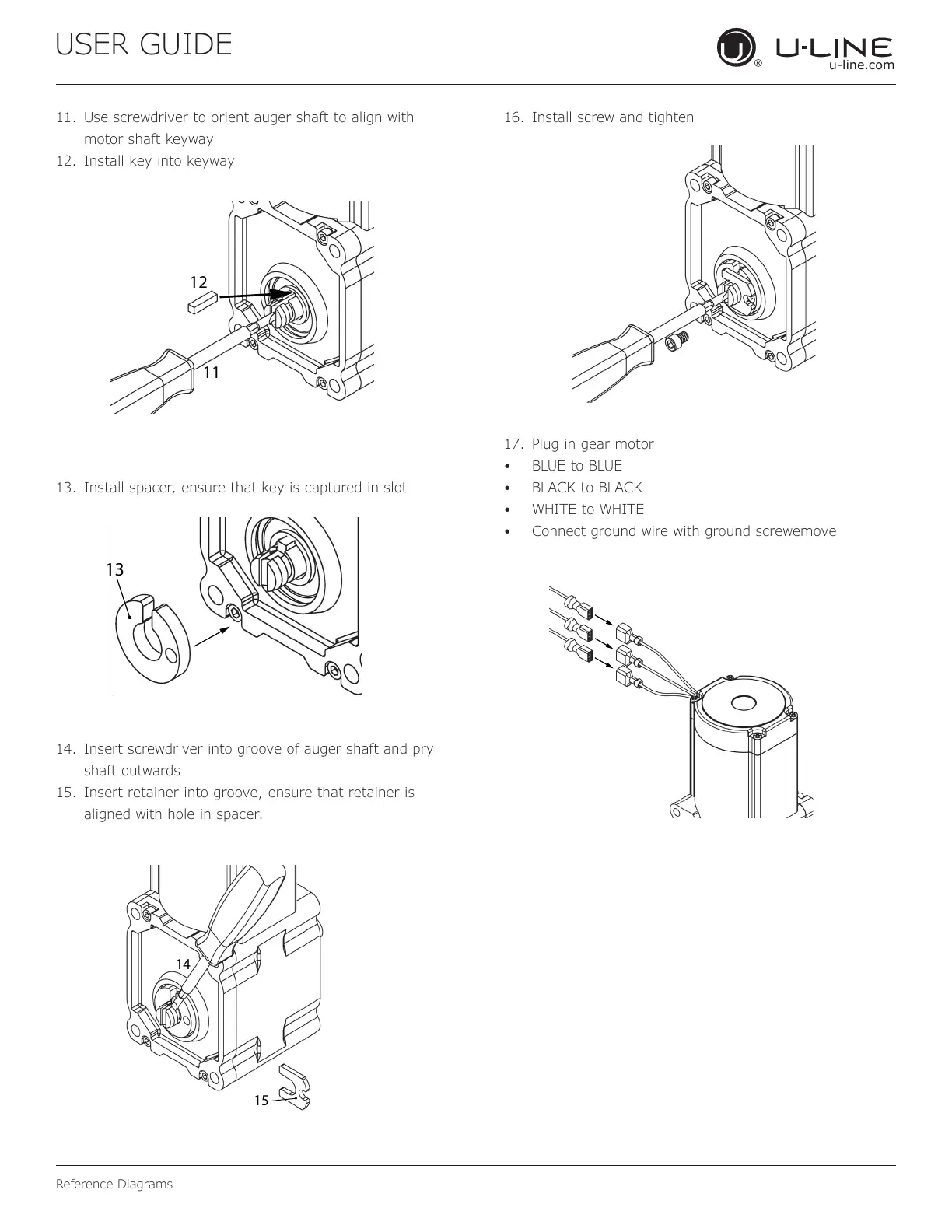

11. Use screwdriver to orient auger shaft to align with
motor shaft keyway
12. Install key into keyway
13. Install spacer, ensure that key is captured in slot
14. Insert screwdriver into groove of auger shaft and pry
shaft outwards
15. Insert retainer into groove, ensure that retainer is
aligned with hole in spacer.
16. Install screw and tighten
17. Plug in gear motor
• BLUE to BLUE
• BLACK to BLACK
• WHITE to WHITE
• Connect ground wire with ground screwemove
11
12
13
41
