USER GUIDE
u-line.com

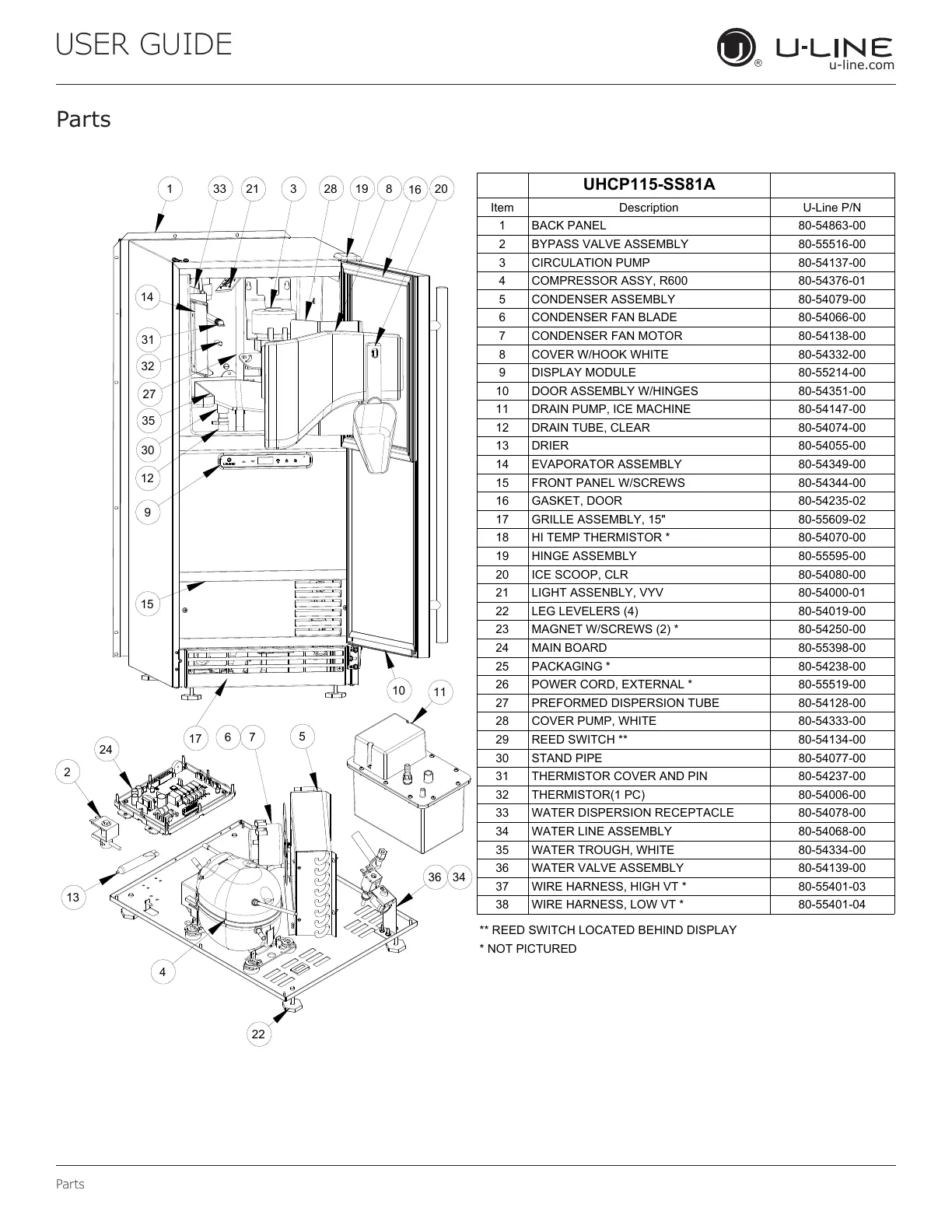

Parts
Pa rts
UHCP115-SS81A
Item Description U-Line P/N
1 BACK PANEL 80-54863-00
2 BYPASS VALVE ASSEMBLY 80-55516-00
3 CIRCULATION PUMP 80-54137-00
4 COMPRESSOR ASSY, R600 80-54376-01
5 CONDENSER ASSEMBLY 80-54079-00
6 CONDENSER FAN BLADE 80-54066-00
7 CONDENSER FAN MOTOR 80-54138-00
8 COVER W/HOOK WHITE 80-54332-00
9 DISPLAY MODULE 80-55214-00
10 DOOR ASSEMBLY W/HINGES 80-54351-00
11 DRAIN PUMP, ICE MACHINE 80-54147-00
12 DRAIN TUBE, CLEAR 80-54074-00
13 DRIER 80-54055-00
14 EVAPORATOR ASSEMBLY 80-54349-00
15 FRONT PANEL W/SCREWS 80-54344-00
16 GASKET, DOOR 80-54235-02
17 GRILLE ASSEMBLY, 15" 80-55609-02
18 HI TEMP THERMISTOR * 80-54070-00
19 HINGE ASSEMBLY 80-55595-00
20 ICE SCOOP, CLR 80-54080-00
21 LIGHT ASSENBLY, VYV 80-54000-01
22 LEG LEVELERS (4) 80-54019-00
23 MAGNET W/SCREWS (2) * 80-54250-00
24 MAIN BOARD 80-55398-00
25 PACKAGING * 80-54238-00
26 POWER CORD, EXTERNAL * 80-55519-00
27 PREFORMED DISPERSION TUBE 80-54128-00
28 COVER PUMP, WHITE 80-54333-00
29 REED SWITCH ** 80-54134-00
30 STAND PIPE 80-54077-00
31 THERMISTOR COVER AND PIN 80-54237-00
32 THERMISTOR(1 PC) 80-54006-00
33 WATER DISPERSION RECEPTACLE 80-54078-00
34 WATER LINE ASSEMBLY 80-54068-00
35 WATER TROUGH, WHITE 80-54334-00
36 WATER VALVE ASSEMBLY 80-54139-00
37 WIRE HARNESS, HIGH VT * 80-55401-03
38 WIRE HARNESS, LOW VT * 80-55401-04
* NOT PICTURED
** REED SWITCH LOCATED BEHIND DISPLAY
4
5
67
13
22
36 34
2
11
24
1
3
28
8
9
35
15
16
17
31
20
14
21
12
27
33
30
10
19
32
32

U-Line UHCP115-SS81A Specifications

General

Brand	U-Line
Model	UHCP115-SS81A
Category	Ice Maker
Language	English
