USER GUIDE
u-line.com

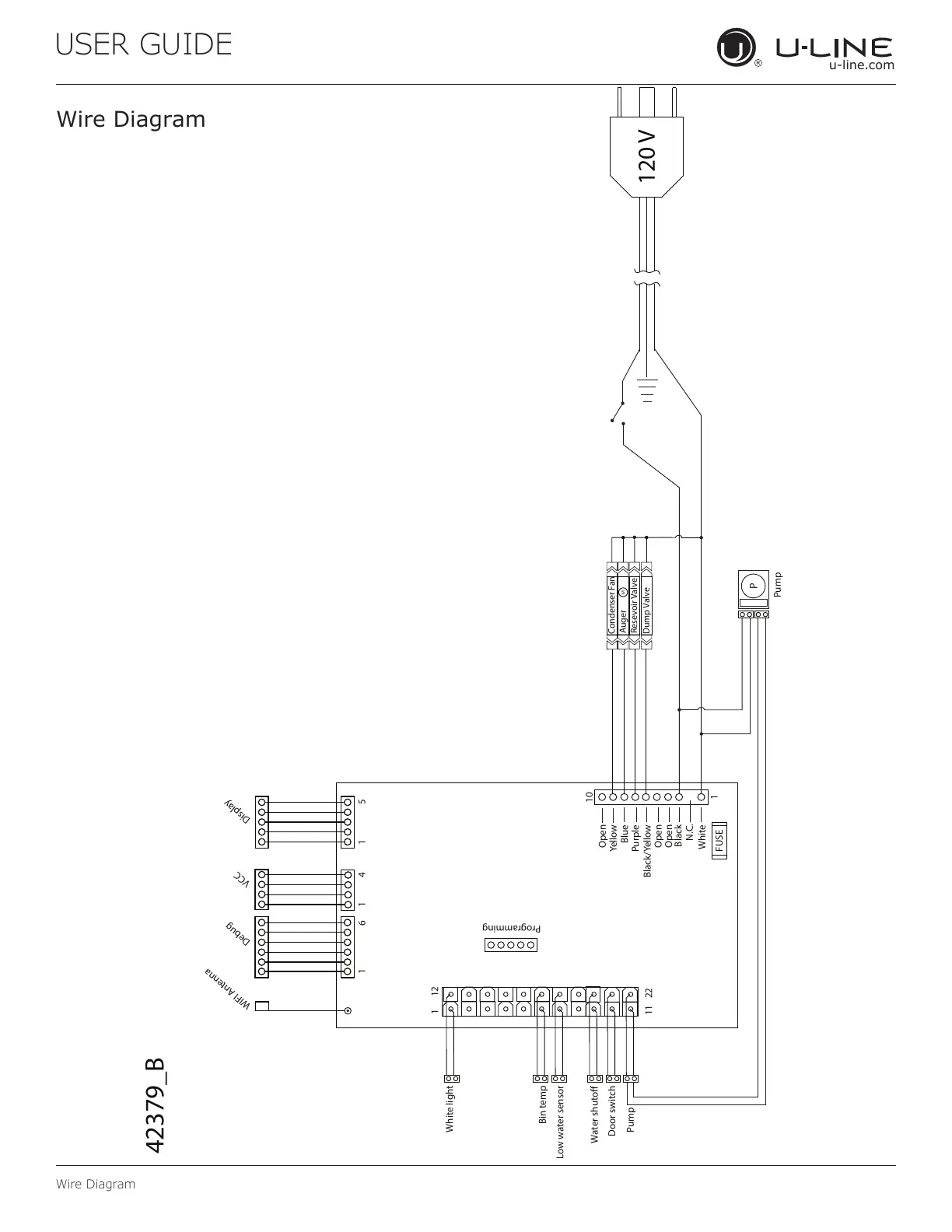

Wire Diagram
Wire Diagram
M
P
120 V
Blue
Yellow
Open
Purple
Black/Yellow
Open
Black
White
FUSE
N.C.
11 22
1
10
1
1 51 6 1 4
12
Pump
White light
Bin temp
Door switch
Pump
Low water sensor
Water shuto
Dump Valve
Resevoir Valve
Auger
Condenser Fan
Open
Programming
Debug
VCC
Display
42379_B
WIFI Antenna
29
