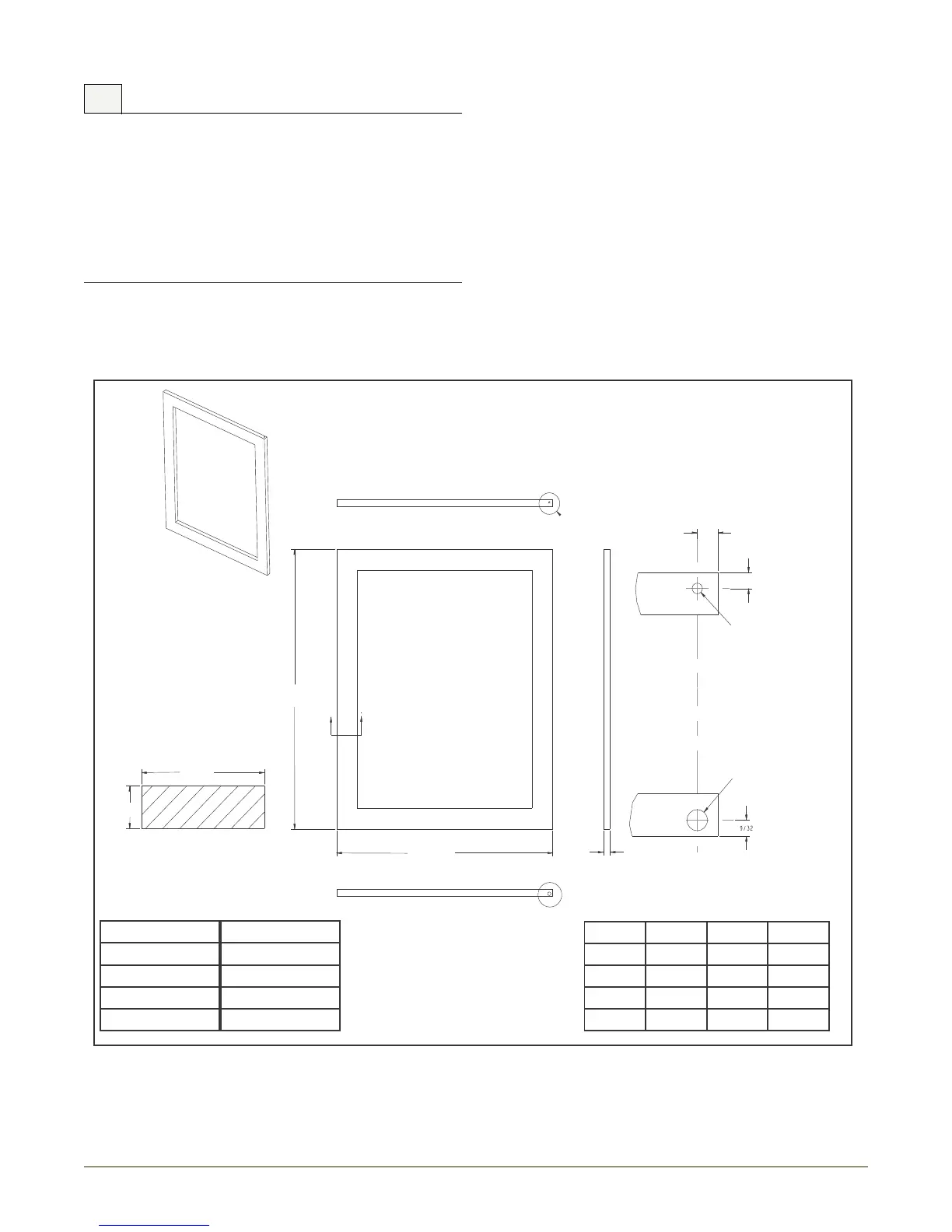

Overlay Frame 14
Frame Preparation
2115WCOL 2175WCCOL & 2175BEVCOL Models Only
An overlay frame covers the door frame to give a built-in
appearance. Appropriate hardware and a copy of these
instructions will be included with the unit.
The thickness of the overlay panel must be 3/4”
1. Use the following instructions to create or have a wood
overlay panel created for you Wine Captain® or beverage
Center model as shown below.
2. Drill holes for pivot pins, upper door hinge and lower door
hinge as shown
11 Overlay Frame
9/32
See Detail C
3/4”
Detail C
Scale 2:1
Door bottom
Ø 3/8” x 1/4” deep
Chamfer 1/32” x 45°
Detail A
Scale 2:1
Door top
Ø 3/16” x 11/16” deep
9/32”
3/8”
See Detail A
Dim. B
NOTE: Front view of
wood panel with
right-hand hinge shown
(mirror image
for left-hand hinge)
Section A-A
Scale 2:1
Typ 4 places
NOTE: Final component
is only a picture frame.
No panel inside of rails.
(Excludes -60 Models)
(Excludes -60 Models)
Right-hand
isometric view
shown.
Opposite
for left-hand
A
A
Dim. A
3/4”
2-1/4”
Dimension A Table
Model
Dimension A
2275ZWCOL
2175WCCOL
2175BEVCOL
2115WCOL
23-3/4”
23-3/4”
23-3/4”
14-3/4”
(See Table)
Dimension B Table
Toe KickToe Kick Dim. BDim. B
3-3/4”
3-7/8”
4”
4-1/8”
4 1/4”
4-3/8”
4-1/2”
29-3/4”
29-3/4”
29-5/8”
29-1/2”
29-3/8”
29-1/4”
29-1/4”
