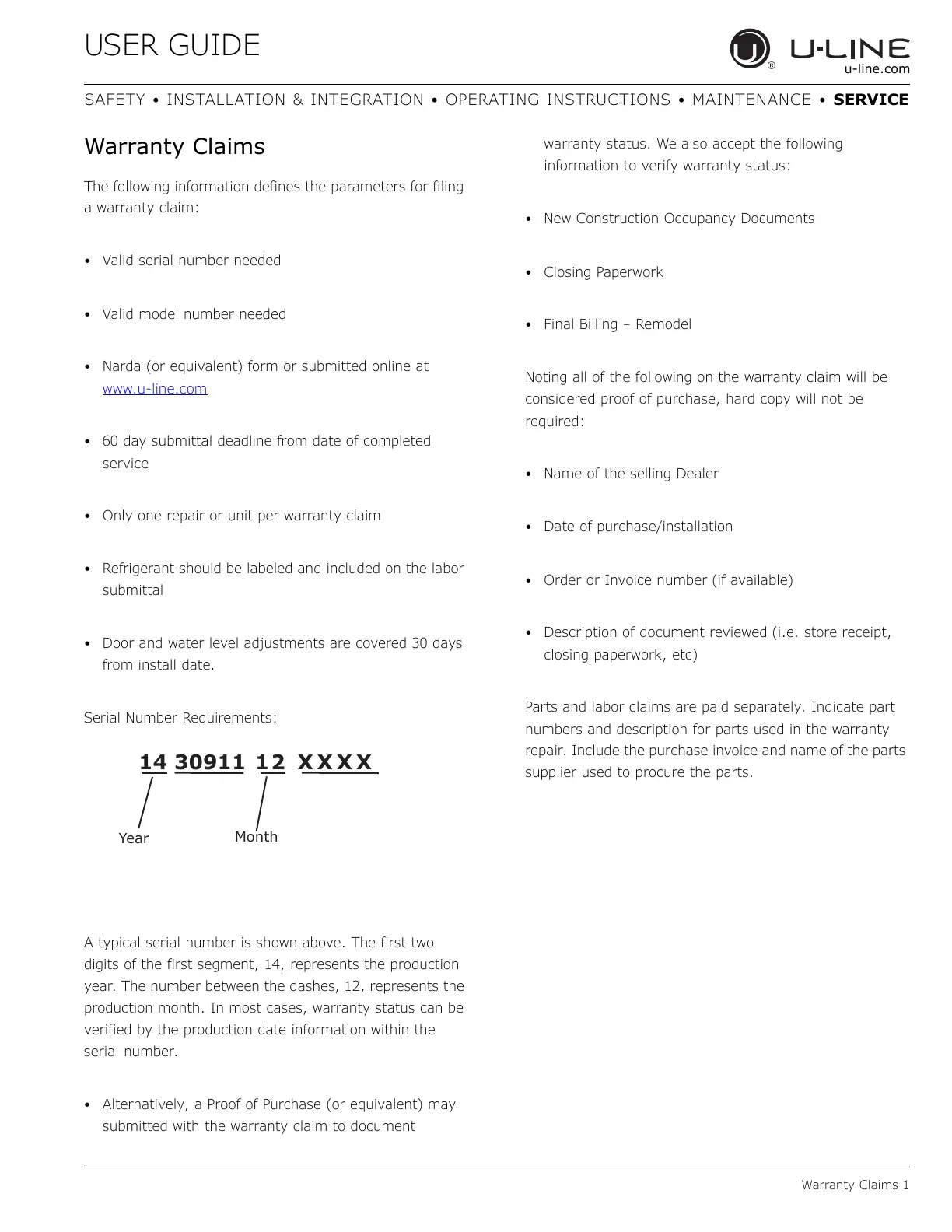

U-Line Wine Captain 2000 Series User Manual

U-2260WCINT-60A
Item Description U-Line P/N
1 Anti tip brackets w/screws 80-54012-00
2 Back panel 80-54086-00
3 Compressor eletricals only 80-54017-00
4 Compressor w/electricals 80-54016-00
5 Condenser assembly 80-54043-00
6 Condenser fan w/screws 80-54014-00
7 Display module 80-54007-00
8 Door assembly w/o hinges 80-54085-00
9 Drain pan w/double sided tape 80-54217-00
10 Drain trough assy 80-54399-00
11 Drier 80-54055-00
12 Evaporator assembly 80-54057-00
13 Evaporator cover 80-54042-00
14 Evap Fan w/cover and screws 80-54005-00
15 Frame assembly 80-54820-00
16 Gasket, door, injection molded 80-54039-00
17 Grille w/ screws 80-54040-00
18 Hinge covers (2 pcs) 80-54001-00
19 Hinge mounting hole covers(4) 80-54024-00
20 Hinges (2) w/screws and covers 80-54013-00
21 LED light strip and cover assy 80-54000-00
22 Leg Levelers (4) 80-54019-00
23 Main board (no case or wires) 80-54008-00
24 Packaging 80-54159-00
25 Rack assembly 80-54010-00
26 Rack assembly bottom 80-54091-00
27 Rack assy, lower 80-54817-00
28 Rack assy, middle 80-54818-00
29 Reed switch 80-54134-00
30 Slide assembly, long 80-54047-00
31 Slide assembly, short 80-54048-00
32 Thermistor (1 pc) 80-54006-00
33 Thermistor cover and pin 80-54023-00
34 Tool, leg leveler 80-54794-00
35 WIFI antenna 80-54804-00
36 Wire harness, board 80-54251-00
37 Wire Harness , power cord 80-54824-00
38 Wood front w/ screws 80-54498-00

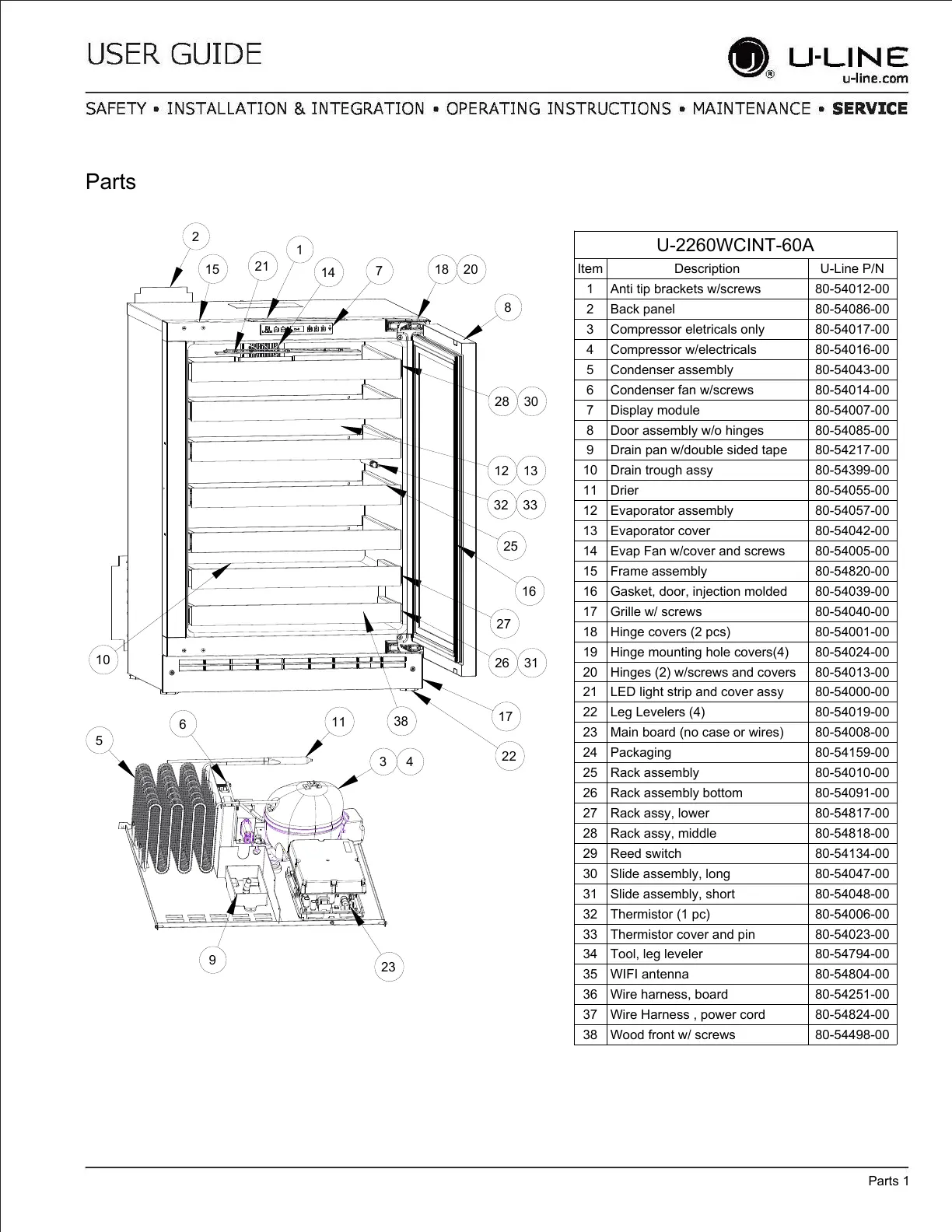

Parts
Parts 1
1
2
5
3 4
6
7
8
9
38
15
16
21
23
32 33
28 30
22
27
10
14
26 31
11
12 13
17
18 20
25
46
