4. If door edge opposite the hinges needs to move up, move plate
toward outside of door. If door edge needs to move down, move
plate toward inside of door (see Figure 14). Repeat until top edge
of door is parallel with top of cabinet and tighten screws securely.

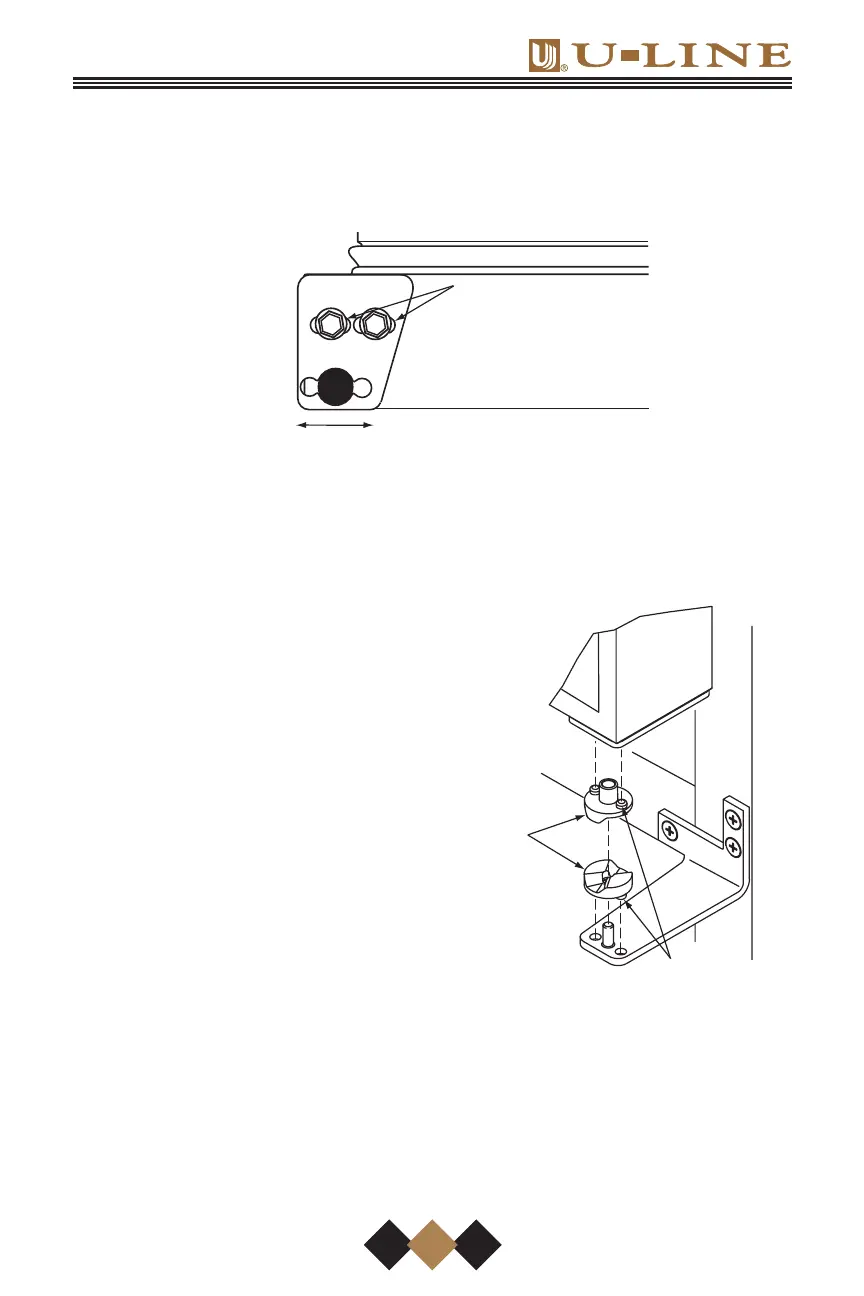

Figure 14
5. After adjustment is complete,
remove the door closers from
the bottom hinge, clean thor-
oughly and apply petroleum jelly
to the mating surfaces of the
closers (see Figure 15). Be sure
that bosses on closers align with
holes in hinge and hinge plate.
Mount door and install top hinge
pivot pin.
SLOTTED
MOUNTING
HOLES
LOWER
OUTSIDE
DOOR EDGE
RAISE
OUTSIDE
DOOR EDGE
ALL WINE
CAPTAIN MODELS
17
UL312
DOOR
CLOSERS
BOSS
Figure 15
