U.S. Range Summit Series - Dimensions and Specifications; Model Sumg

Part Number 1955202 rev 5 4/156

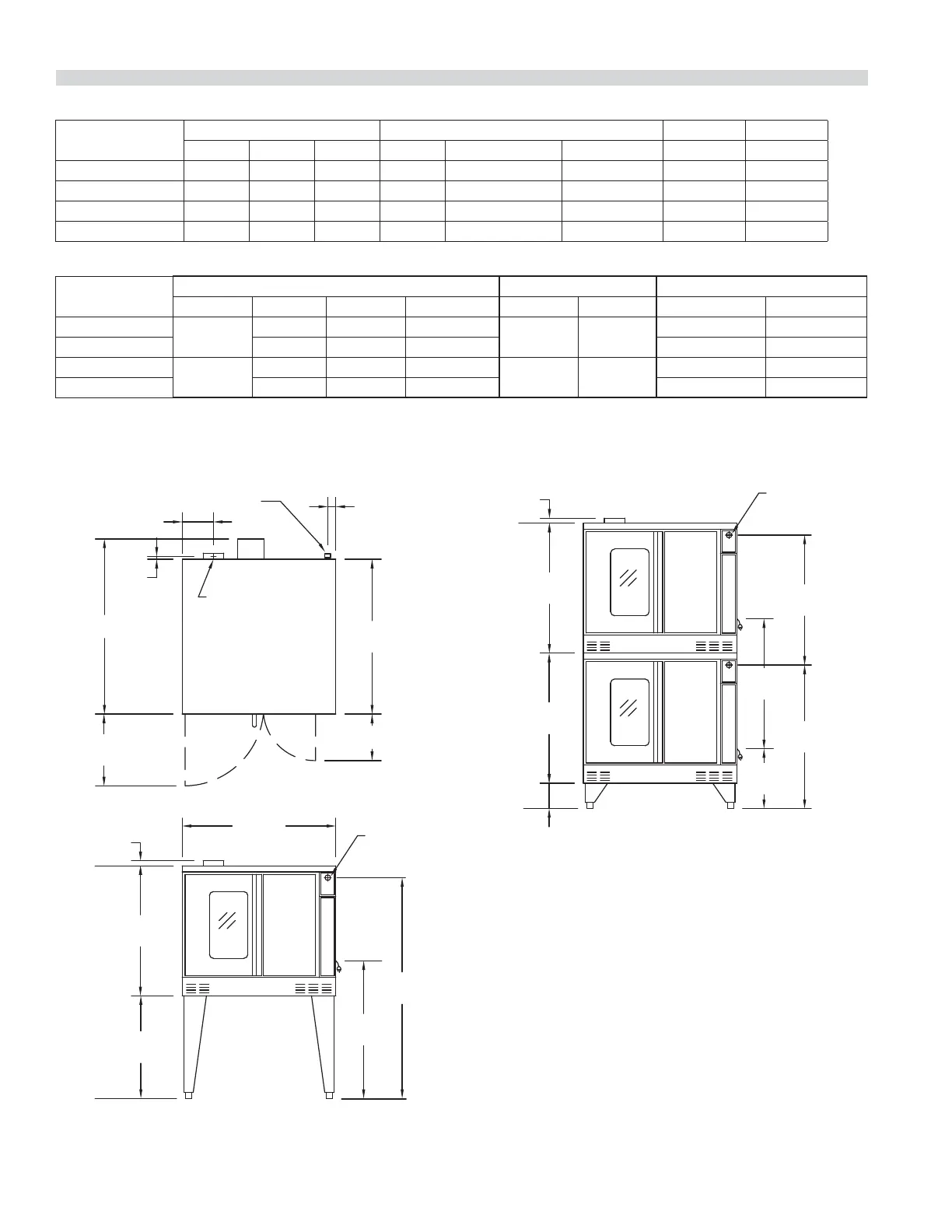

DIMENSIONS AND SPECIFICATIONS, MODEL SUMG
“D”
TOP VIEW
38"
[965mm]
25-3/8"
[645mm]
54-9/16"
[1386mm]
3/4" N.P.T.
GAS INLET
3/4" REAR
GAS INLET
1" REAR
GAS INLET
7-3/4"
[197mm]
2"
[51mm]
3/4"
[19mm]
(includes
motor)
FLUE: 2-3/8" x 5"
[60mm x 127mm]
38-1/4"
[972mm]
11-1/2"
[292mm]
17-3/4"
[451mm]
1-1/4"
[32mm]
32-1/8"
[816mm]
34"
[864mm]
SINGLE DECK
FRONT VIEW
6-1/4"
[159mm]
DOUBLE DECK
FRONT VIEW
32-1/8"
[816mm]
32-1/8"
[816mm]
1-1/4"
[32mm]
32-1/8"
[816mm]
32-1/8"
[816mm]
14-3/4"
[375mm]
35-7/16"
[900mm]
Notes:
1. Standard electrical speci cations include motor requirements.
2. (120V units) 115V 3/4 HP, 2-speed motor; 1140 and 1725 rpm 60Hz
3. (240V units) 200-240V, 3/4 HP, 2-speed motor; 1140 and 1725 rpm, 60Hz.
4. A 6 ft. line cord is provided for each 120V deck with a (NEMA #5-15P) plug..
5. U.S. Range recommends a separate 15 AMP circuit for each 120V unit.
Model
Int. Dimensions: inch (mm) Ext. Dimensions: inch (mm) Ship Wt Ship Dim.
W H D W H D(w/motor) Lbs/kg Cubic Ft.
SUMG-100 29 (736) 24 (610) 24 (610) 38 (965) 57-1/2 (1461) 41-1/4 (1048) 515 / 230 64
SUMG-200 29 (736) 24 (610) 24 (610) 38 (965) 70-1/2 (1791)** 41-1/4 (1048) 1030 / 465 128
SUMG-GS-10ESS 29 (736) 24 (610) 24 (610) 38 (965) 57-1/2 (1461) 41-1/4 (1048) 515 / 230 64
SUMG-GS-20ESS 29 (736) 24 (610) 24 (610) 38 (965) 70-1/2 (1791)** 41-1/4 (1048) 1030 / 465 128
** Height with legs or with standard casters. Height with low profile casters (double deck) is 68-1/2” (1740mm).
Models
Input Ratings Operating Pressure* Electrical Specifications
BTU/hr kW Equiv. Gas Inlet Natural Propane 120V/1Ph. 240V/1Ph.
SUMG-100
Natural &
Propane
53 000 15.53 (1) @ 3/4" NPT
4" WC
(10 mbar)
10" WC
(25 mbar)
(1) @9.8A (1) @ 5.2A
SUMG-200
106 000 31.06 (1) @1" NPT
(2) @9.8A (2) @ 5.2A
SUMG-GS-10ESS
Natural
Gas
53 000 15.53 (1) @ 3/4” NPT
4” WC
(10 mbar)
n/a
(1) @9.8A (1) @ 5.2A
SUMG-GS-20ESS
106 000 31.06 (1) @1” NPT
(2) @9.8A (2) @ 5.2A
*Maximum Pressure 13.8” WC @ 70°F (21°C).
Many local codes exist and it is the responsibility of the owner and installer to comply with those codes.
These appliances are intended for commercial use by professionally trained personnel.
