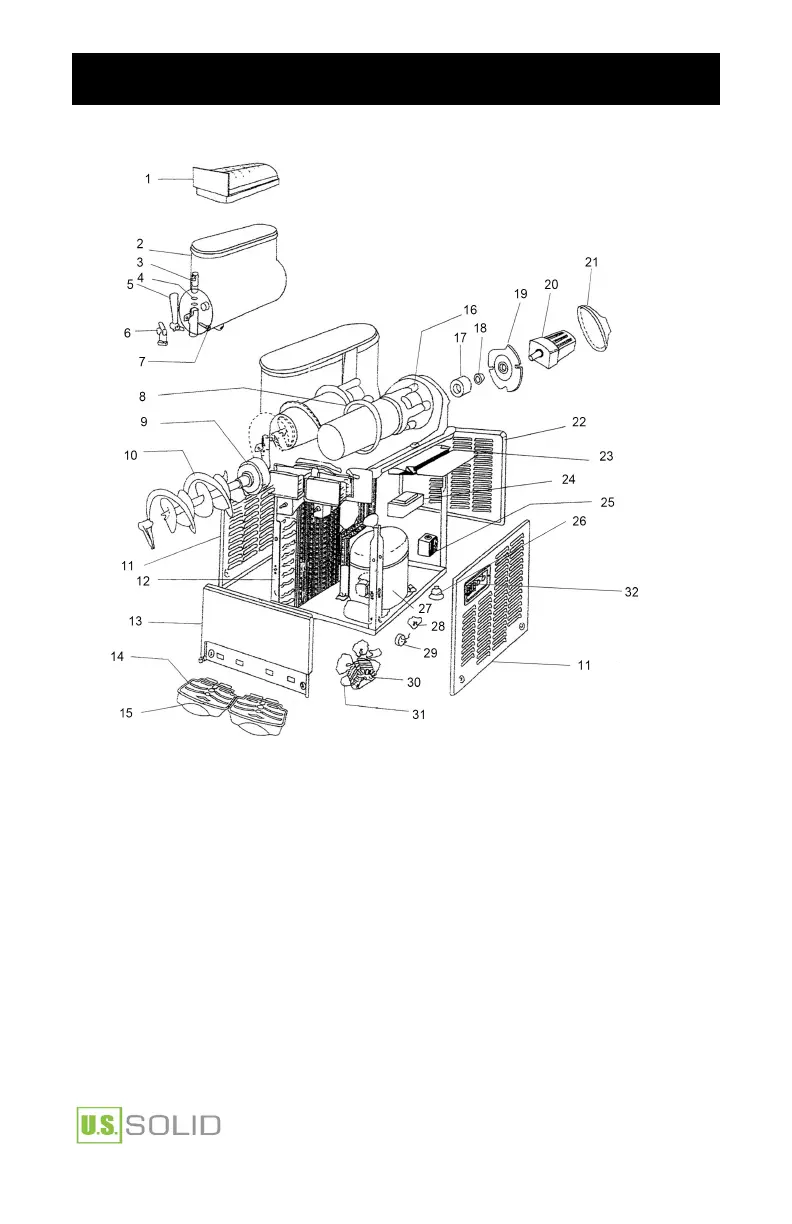

U.S. Solid SLUSH MACHINE - Structure Diagram

X. Structure Diagram
17. Magnet for inner spiral
18. Copper bush for motor fixing
19. Plastics motor panel
20.
Motor
21. Cover for motor
22. Stainless steel back panel
23. Base for control panel
24. PCB board
25. Valve
26. Base support
27. Compressor
28. Compressor starter
29. Protector
30. Motor fan
31. Fan
32. Control panel
1. Cover
2. Bowl
3. Tap pin
4. Tap O-ring
5. Handle
6. Tap spring
7. Pin for handle fixing
8. Bowl gasket
9. Inner spiral
10.
Assembly spiral
11. Stainless steel side panel
12. Condenser
13. Stainless steel front panel
14. Grate for drip tray
15. Drip tray
16. Evaporator
