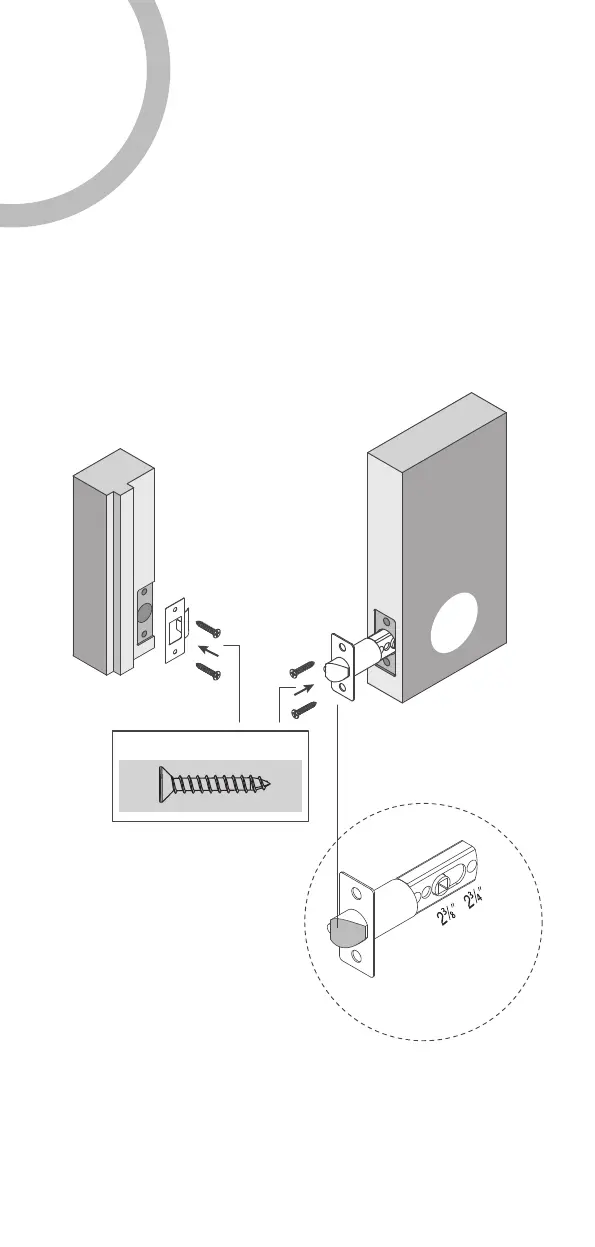

Installing Latch and Strike
- 5 -
1. Install latch on the door. Make sure the latch
angle faces door jamb.
2. Install the strike on the door frame, ensuring you
allow for the bolt to be centered in the strike.
60~70mm
Adjust the latch
basket length
Angle faces jamb
3
Screw A: Actual Size
