b.
c.
c.b.
M8 x 25mm
COUNTERSINK
M6 x 25mm
M6 X 16
mm
WASHER
M8 NYLOC NUT
M8 FLANGE NUT
M8 X 17
mm
WASHER
M8 x 30mm
b.
M8 X 17
mm
WASHER
M6 NYLOC NUT
M8 NYLOC NUT
M6 X 12.5
mm
WASHER
c.
b.
18 19
a.
Left: Front
Right: Behind
FORK TUBE
CLAMP

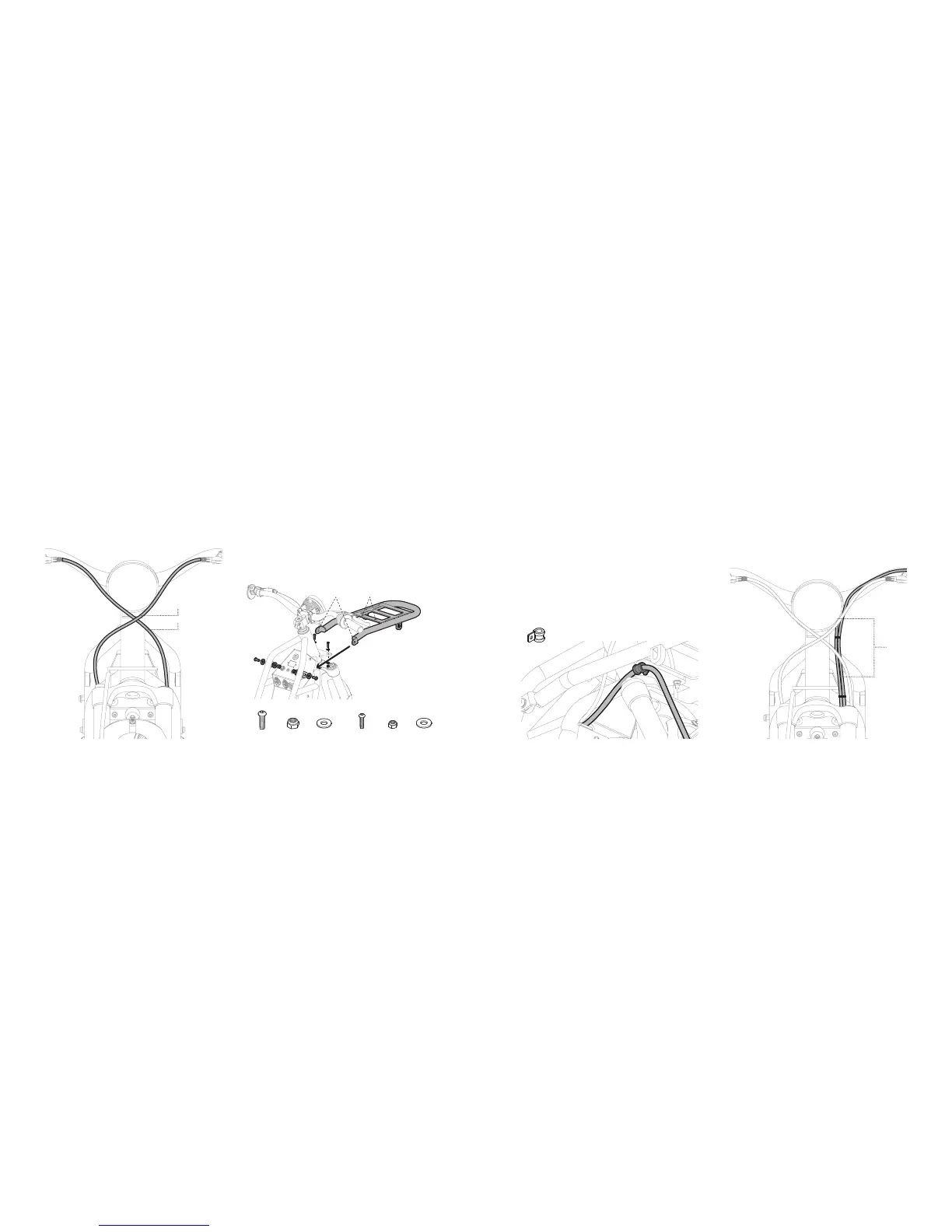

Step 3: Front Carrier Installation
a. Check the brake cables cross over in front of
the light with the right-hand cable being closest
to the light.
b. Attach the front carrier to the front accessory
lugs on the frame with M8 x 25mm bolts and M8
nuts. The M8 nut will fit into the recess in the lug,
preventing it from spinning.
c. Fasten to the plate on the head tube with M6 x
25 bolts and washers from above and M6 nuts
and washers from below.
Step 4: Cable Tidy Up
a. Secure the front motor cable with a small tube
clamp under carrier:
» When facing the front of the bike, unscrew
the left M6 nut and washer from under the
front carrier (Step 3c).
» Put the motor cable into the tube clamp.
» Thread the tube clamp onto the bolt,
ensuring the motor cable is running on the
outside of the bike. Check the cable doesn't
get caught on the top of the fork when the
steering is moved from left to right.
b. Secure the horn cable and light cable together,
using two of the supplied cable ties. Attach one
at the top of the cables and one part way down.
Ensure the steering range is not limited due to
the cables being tied too tight.
