UBCO 2X2 User Manual

20 21
M6 X 16 mm
WASHER
M8 NYLOC NUT
M8 FLANGE NUT
M6 X 16 mm
WASHER
M8 NYLOC NUT
M8 FLANGE NUT
M8 X 17 mm
WASHER
M8 x 25mm
COUNTERSINK
M8 x 25mm
M6 X 12.5 mm
WASHER
M8 X 17 mm
WASHER
M6 NYLOC NUT
M8 NYLOC NUT
M5 X 12.5 mm
WASHER
SEAT BUSH
M5 NYLOC NUT
M8 x 25mm
COUNTERSINK
M6 x 25mm
BOLT
FRAME LUG SEAT BUSH
& WASHER
SEAT LUG
NUT
WASHER
a.
b.

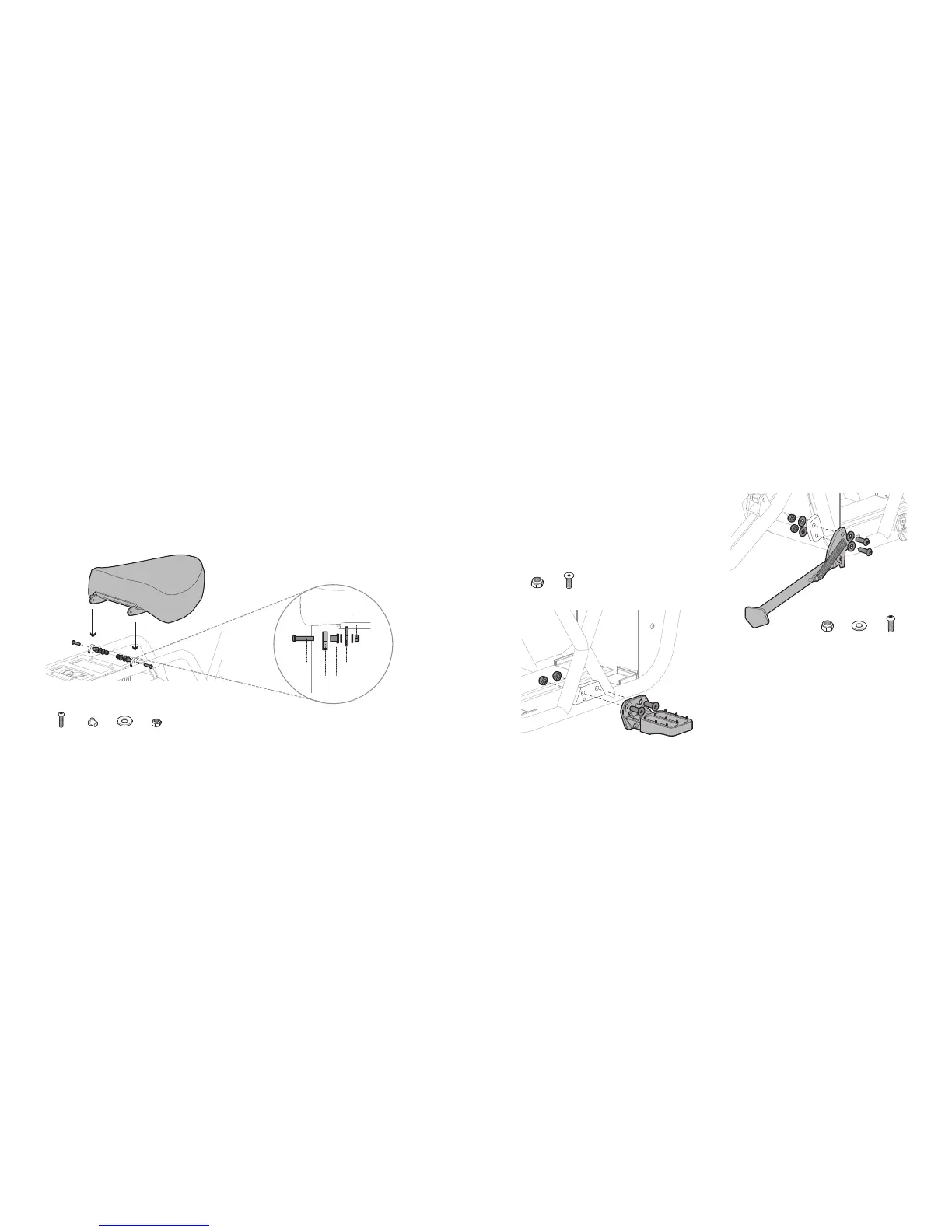

Step 5: Seat
a. Lower the seat onto the seat mounting plates
located on the top of the frame.
b. Fasten the seat to the plates with fasteners in
this order, from the outside in:
M6 x 25mm bolt, frame lug, seat bush, M6
washer, seat lug, M6 washer, M6 nut.
Step 6: Foot Pegs
Using M8 x 25mm bolts and M8 nuts, install the
foot pegs to the mounting plates on the frame.
The foot pegs are sprung. If installed properly, they
will retract up towards the rear of the bike.
Step 7: Kick Stands
Using M8 x 25mm bolts, M8 washers and M8 nuts,
attach the side kick stands to the mounting plates
on the frame.
Ensure the correct kick stand is installed to the
correct side of the frame, with the spring facing
outwards. The kick stand will spring into place in
either the stowed or engaged position.

UBCO 2X2 Specifications

General

Category	Electric Utility Bike
Top Speed	50 km/h
Charging Time	4-6 hours
Brakes	Hydraulic disc brakes
Suspension	Front and rear suspension
Range	Up to 120 km
Payload Capacity	150 kg
Drive	All-wheel drive
Tires	2.75 x 17" Dual Purpose
Weight	65 kg (without battery)
