Uberhaus 87795017 - Page 19

Wall Sleeve Brands:
#7 Whirlpool ( 23 Deep)

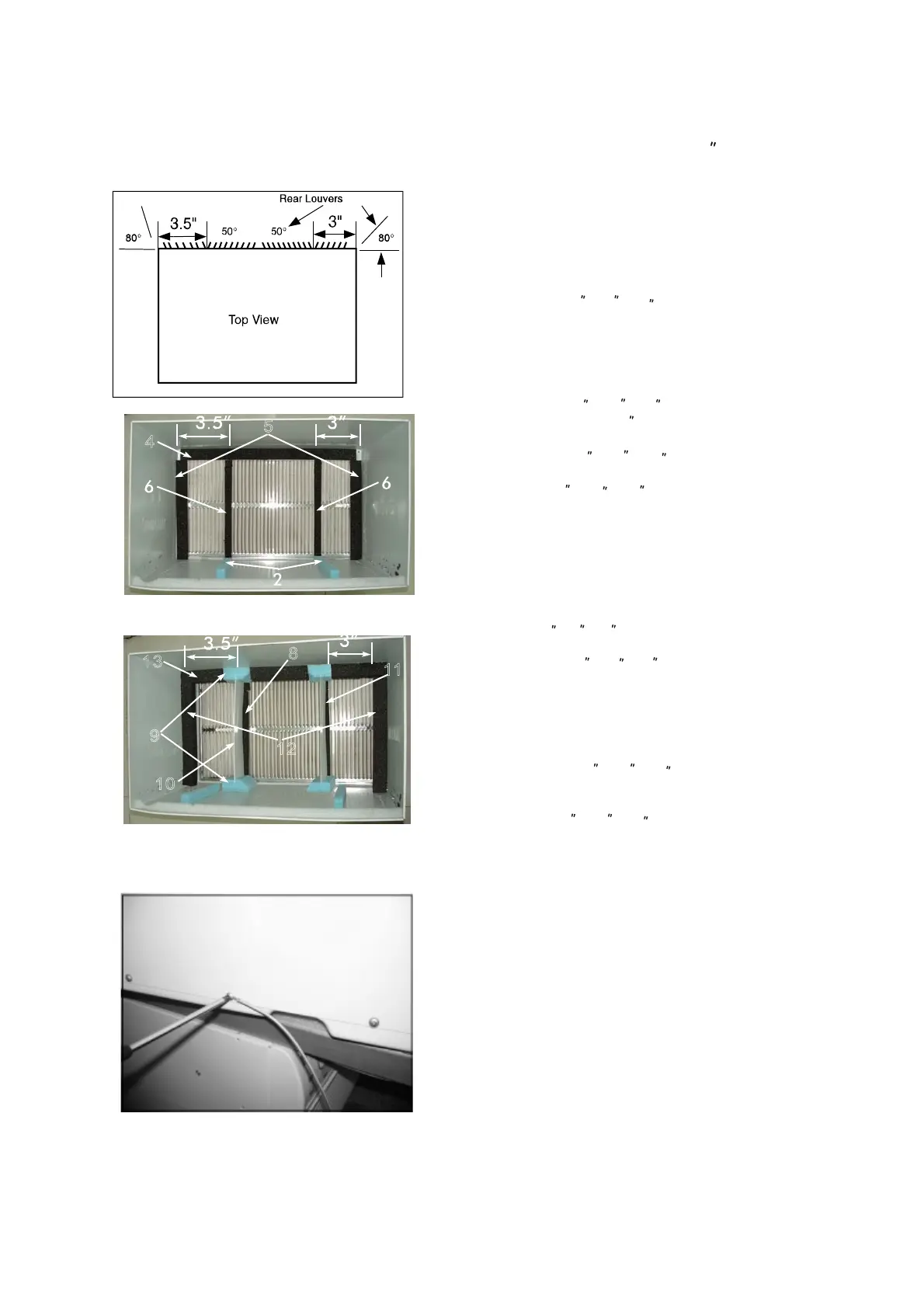

1. Redirect the louvers at the back of the wall
sleeve as shown in the illustration. The use
of pliers is recommended.
1. Place (2) 1 x1 x14 seals against each side.
2. Gently slide unit in and check if amount extend-
ing from the sleeve is sufficient once the trim
frame is attached.
3. If position is Ok, remove unit and proceed to
the next step. If not go to step 8.
4. Attach (1)1 x1 x25 long seal in the center
at the top of the sleeve. Remove the backing
paper and press into position.
5. Attach (2) 1 x1 x14 seals to the left and
right sides of the sleeve.
6. Cut (2) 1 x1 x25 long seal to 14 long
and attach to the vertical sections of the grille as
shown.
7. Attach the tapered spacer blocks to the floor of
the sleeve. Now go to step 14.
Use these next steps if the unit requires extra
extension into the room.
8. Attach 1 x x14 long seal over the solid
vertical portion of the rear grille.
9. Attach (2) 4 x3 x1 foam blocks with the
slot overlapping the seal above.
10. Install the divider into the slots of the foam
blocks. You may need to trim the length to size.
11. Repeat steps 8-10 for the other vertical shown
portion of the grille as shown in the picture.
12. Attach (2) 1 x1 x14 seals along the sides
of the sleeve again making sure all seals are
flush.
13.Cut the 1 x1 x25 seal to fit the top of the
sleeve. The pieces must be fitted flush to the
edge of the divider.
14. Center unit and gently slide unit into sleeve.
15. Before sliding all-the-way back, remove 1st
screw from front on left side of unit.
16. Remove the plastic washer from the screw.
17. Screw and attach the other end of the ground
wire to the unit as shown in picture. Make sure
that the toothed washer is against the cabinet.
18.Slide the unit completely to the rear to ensure
a good seal, making sure the ground wire does
not become tangled.
19.Seal & Frame the unit as described on the last
page of these instructions.
Because of the increased unit depth, first try
dry fitting using the method described below:
