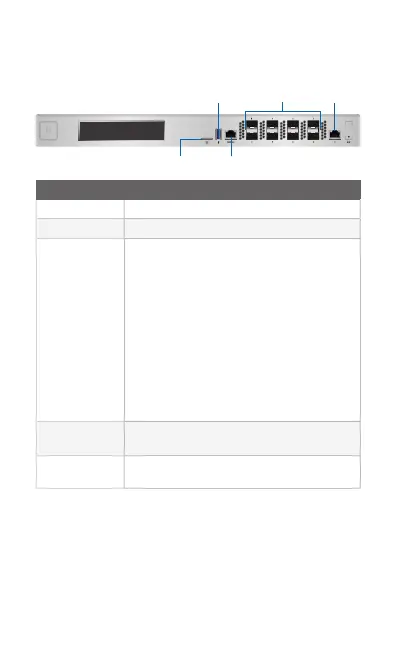

Hardware Overview
Front Panel Ports
Console
SFP+
USB
microSD
RJ45
Interface Description
microSD Reserved for future use.
USB Reserved for future use.
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use
an RJ45-to-DB9 serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
SFP+
(Ports 1-8)
SFP+ ports are hot-swappable and support
10 Gbps fiber SFP modules.
RJ45
(Port 0)
RJ45 port supports 10/100/1000 Ethernet
connections.
