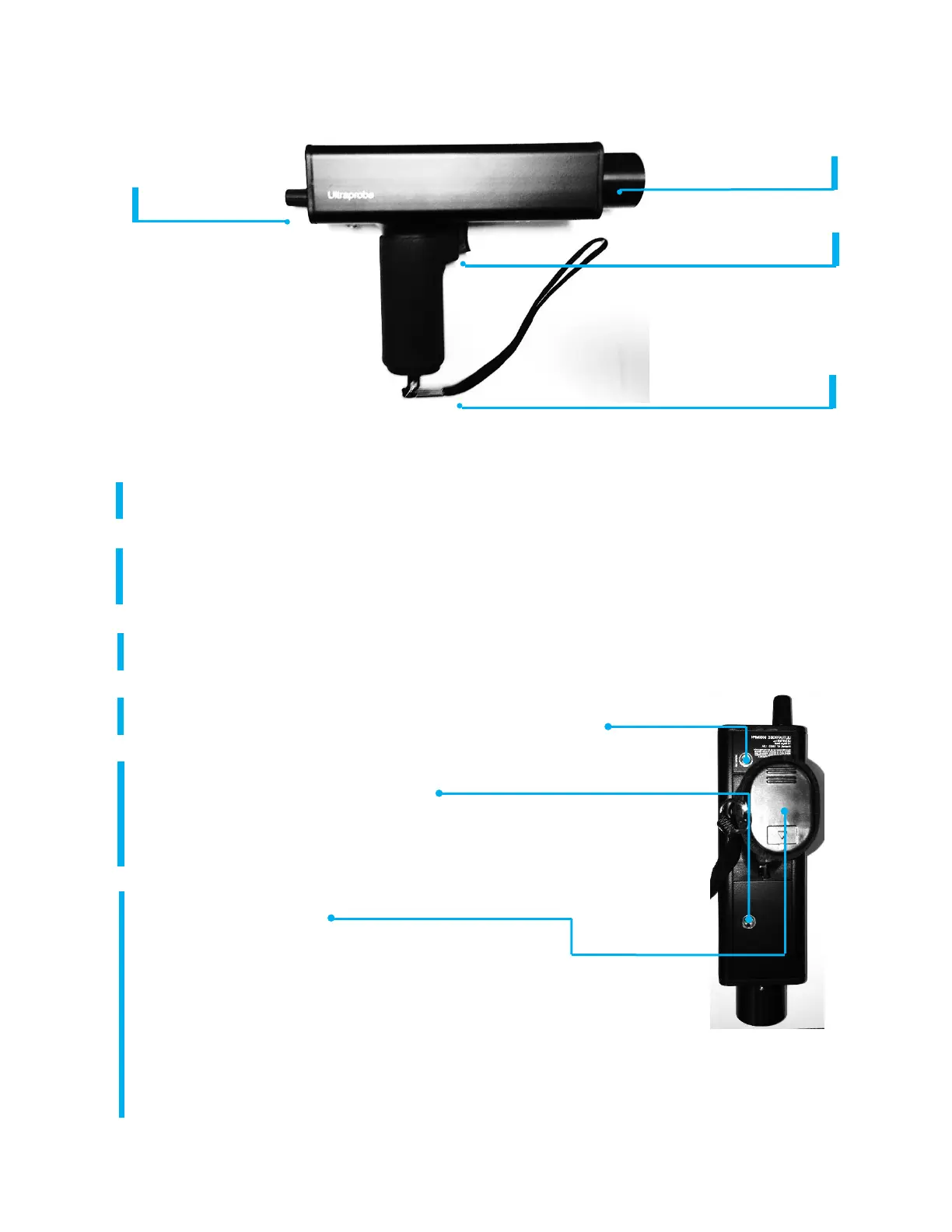

TRIGGER ON/OFF TRIGGER SWITCH. The Ultraprobe is always "off' until the trigger is
pulled. To operate, press and hold the trigger. To turn the instrument off, release the trigger.
SENSITIVITY CONTROL DIAL. This is one of the most important controls in the unit. In the
operation mode, this dial is used to adjust the sensitivity. When “clicked” it can change the
frequency. In the Set-up Mode it moves the cursor and when the dial is depressed, sets notations.
WRIST STRAP. To prevent damage to the Ultraprobe, use the wrist strap to avoid dropping the
instrument.
RECHARGE JACK. This jack receives the plug from the recharger. The
recharger is designed to plug into a standard electrical receptacle.
I/O PORT. This is the USB port for upload/download information transfer.
Align the pins from the cable and plug in.
NOTE:
Before downloading data be sure the cable is connected to both the I/O
port and to the computer.
BATTERY COMPARTMENT. The handle contains the battery. Remove the
cover to change batteries.
BATTERY. The battery is an environmentally friendly nickel metal hydride
with no memory problems. A full charge will take 8 hours; however, the
battery can be partially charged for shorter periods. If it is kept on charge over
8 hours, there will be no harm to the battery.
NOTE:
When the effective battery charge is used up the instrument shuts down and a message to
recharge the battery will be displayed in the display panel.
