21
STETHOSCOPE EXTENSION KIT
Remove the Stethoscope Module from the Metered Pistol Housing.
Unscrew the metal rod in the Stethoscope Module.
Choose the rod that is the middle length of the three this is the "base piece".
Screw the Base Piece into the Stethoscope Module.
If all 31" (78.7 cm) are to be utilized, locate the middle piece. (This is the rod with a female
fitting at one end) and screw this piece into the base piece.
Screw third "end piece" into middle piece.
If a shorter length is desired, omit step 5 and screw "end piece" into "base piece".
LONG RANGE MODULE
Plug in to front end.
Align the plug located at the rear of the module with the receptacle in the front end of the
Pistol Housing and plug in.
Start to scan the test area

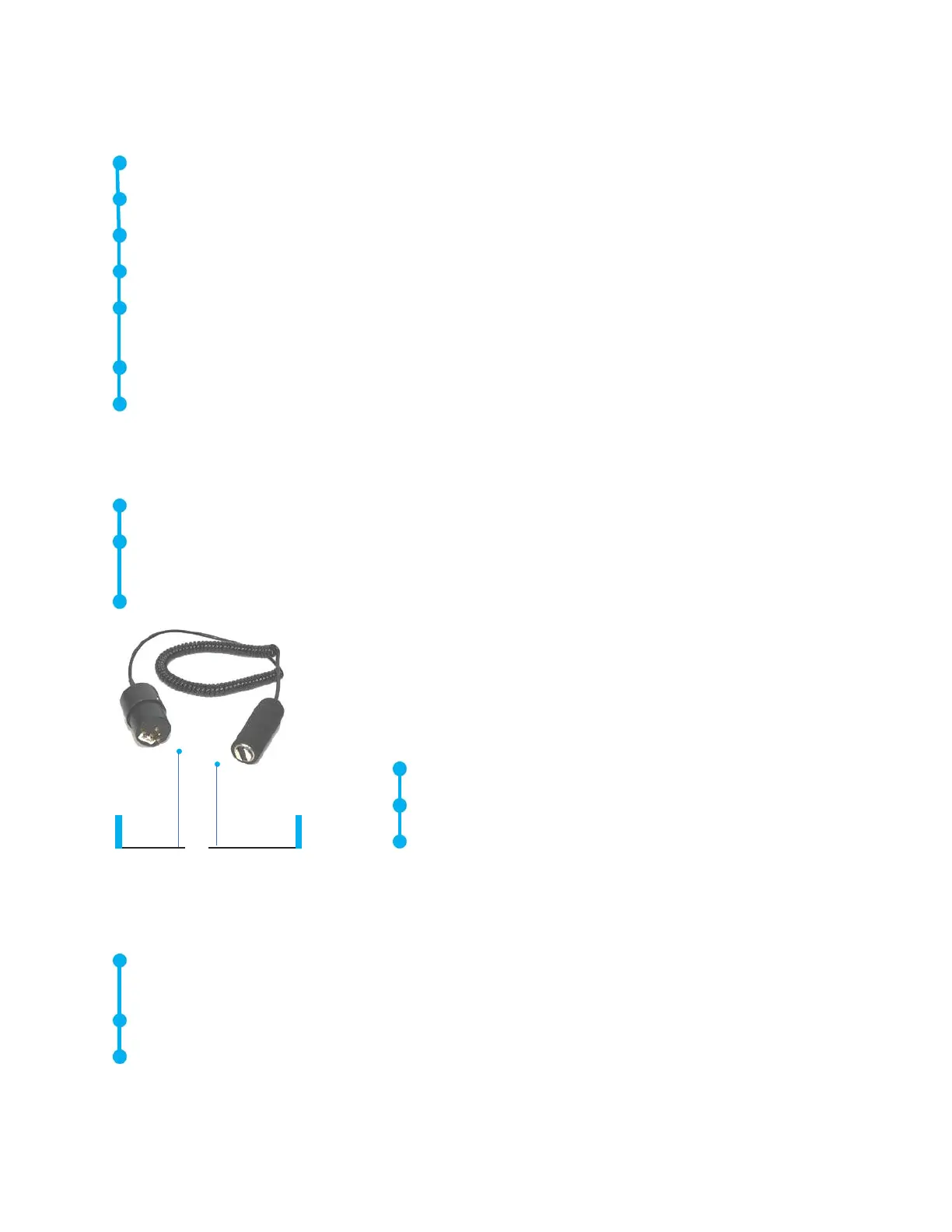

RAS-MT
The magnetically mounted transducer acts as a wave guide. The
cable attaches to the RAM (Remote Access Module) which is
plugged into the pistol grip housing.
Make sure RAS-MT cable is attached to the RAM
Plug RAM into the front end.
Place the magnet transducer on the test point
TO CHARGE THE UP9000
Plug recharger cable into recharger jack on the UP9000 and then plug the recharger into a
wall receptacle.
Make sure that the LED on the charger is lit when recharging.
The LED turns OFF when the battery is charged. The instrument may stay connected to the
charger without damaging the battery.
