• Read the safety precautions associated with the equipment being
tested and seek assistance or advice when performing
unfamiliar tasks.
• Keep your fingers away from the test lead metal probe
contacts
and bus-bars when making measurements. Always grip the
instrument and test-leads behind the hand guards (molded into
the probes).
• In the event of electrical shock, ALWAYS bring the victim
to
the emergency room for evaluation, regardless of the victim’s
apparent recovery. Electrical shock can cause an unstable heart
rhythm that may need medical attention.

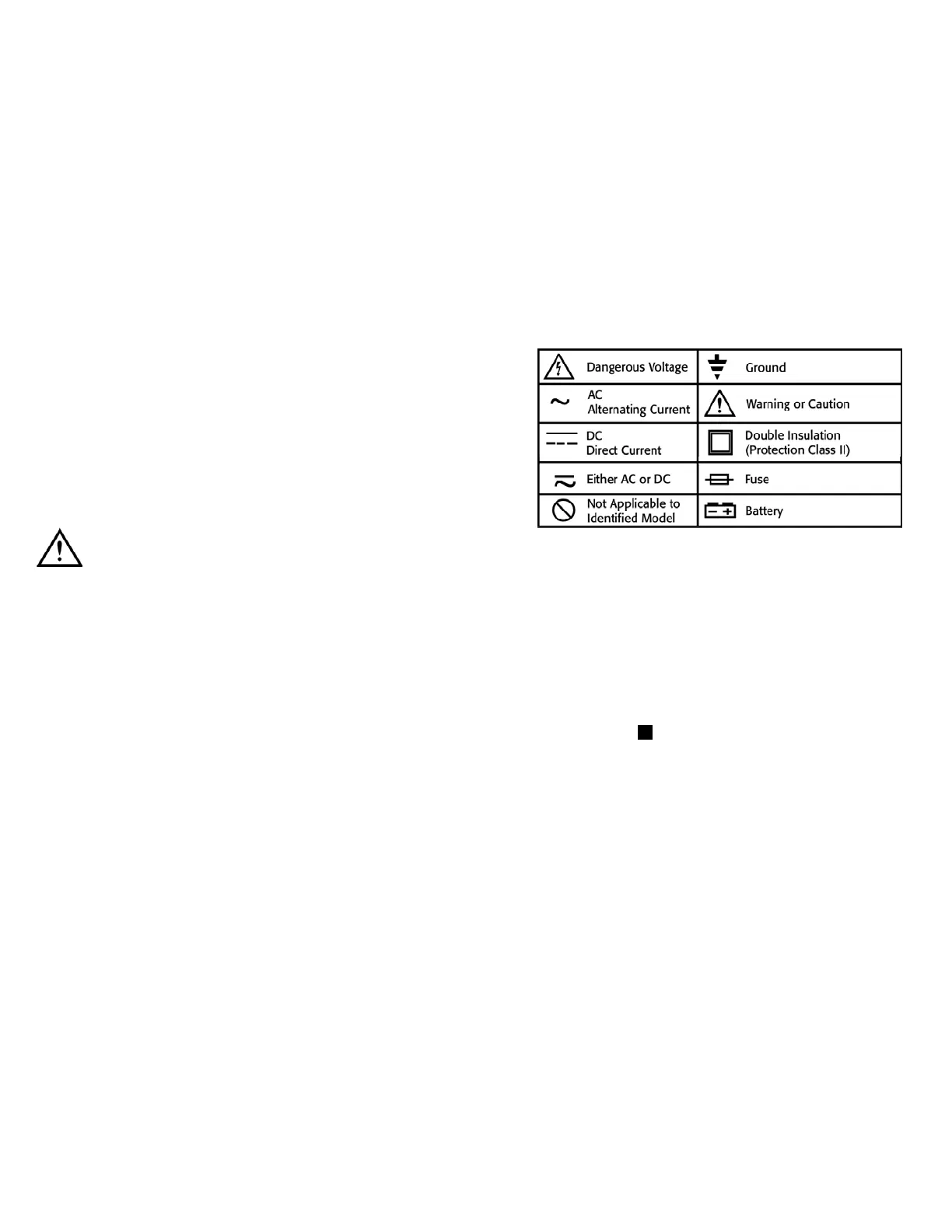

International Symbols
C o n t r ols and Indicators
1. Display: 3 - 1/2 digit, 7 segment, 15 mm high LC D .
2. Back Light: (option) Push this button to turn on the back light.
3. Rotary Switch: This switch is used to select functions and desired
ranges as well as to turn on/off the meter.
4. Hold Button: When this button is pushed, the display will keep the
last reading and “ “ symbol will appear on the LCD until pushing
it again.
5. “10A” Jack: Plug in connector for red test lead for
10A measurement.
6. “COM” Jack: Plug in connector for black (negative) test lead.
7. “VΩmA” Jack: Plug in connector for red (positive) test lead for
voltage, resistance and current (except 10A) measurements.
Introduction
The UTL33 is a full featured digital multimeter. It has the measurement
functions (including temperature) needed to help technicians successfully
troubleshoot, repair and verify appliance opera t i o n .
Features include
• AC Voltage 200V/600V
• DC Voltage 200m/V/2V/20V/200V/600V
• DC current 200µA/2mA/20mA/200mA/10A
• Resistance 200Ω/2kΩ/20kΩ/200kΩ/200MΩ
• Audible continuity
• Data hold
• Impact resistant boot with a tilt stand
• Compact pocket-design fits easily in tight spaces
Safety Notes
Before using this meter, read all safety information carefully. In
this manual the word "WARNING" is used to indicate conditions
or actions that may pose physical hazards to the user. The word
"CAUTION" is used to indicate conditions or actions that may
damage this instrument.
WARNING!
Exceeding the specified limits of this meter is dangerous and can
expose the user to serious or possibly fatal injury.
• DO NOT attempt to measure any voltage that exceeds 600
volts
with this meter - UEi offers numerous alternatives for measuring
high voltage and current
• Voltages above 60 volts DC or 30 volts AC may constitute
a
serious shock hazard
• DO NOT attempt to use this meter if either the meter or the
test
leads have been damaged. Send unit in for repair by a qualified
repair facility
• Test leads must be fully inserted prior to taking measurements
• Always turn off power to a circuit (or assembly) under test
before
cutting, unsoldering or breaking the current path. Even small
amounts of current can be dangerous
• Always disconnect the live test lead before disconnecting
the
common test lead from a circuit
• When measuring high voltage, disconnect the power source
before
making test lead connections. Connect the test leads to the meter
first then to the circuit under test. Reapply power
• If any of the following indications occur during testing,
turn
off the power source to the circuit under test:
• Arcing
• Flame
• Smoke
• Extreme Heat
• Smell of Burning Materials
• Discoloration or Melting of Components
UTL33-MAN P
. 1
