7. 4. 1 DISASSEMBLY

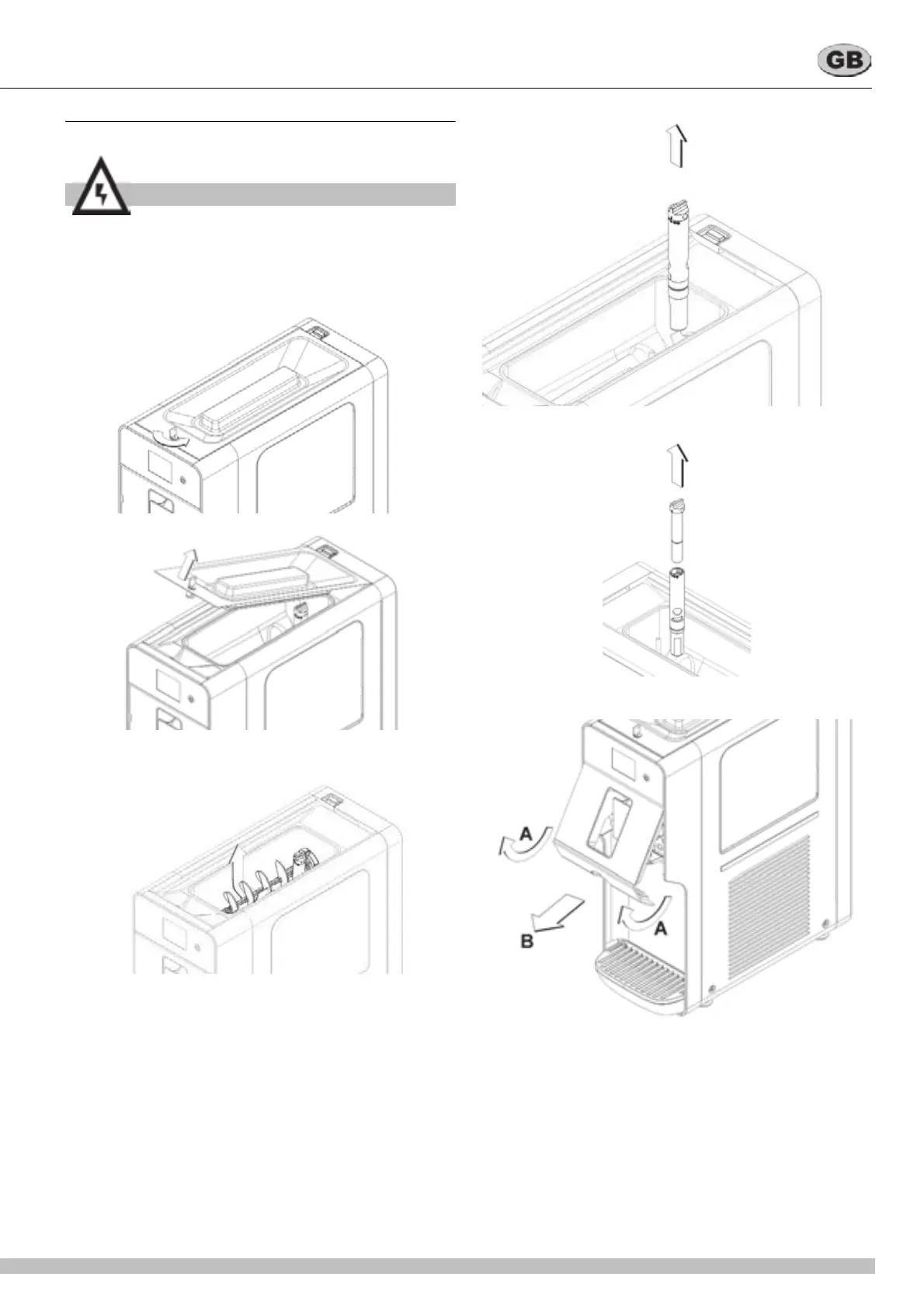

1 Remove the upper cover. (see figure 16)
If the cover is fitted with a safety lock, turn the key anti-
clockwise and remove it. (see figure 15)
figure 15
figure 16
2 If present, remove the upper basin mixer. (see figure 17)
figure 17
3 Remove the mixing tube, both the upper part that the lower
part.
4 Remove the mixing tube and dismantle it (see figure 18)
and (see figure 19).
figure 18
figure 19
5 Remove the front panel. (see figure 20)
figure 20
6 Unscrew both fastening knobs from the tap assembly. (see
ATTENTION
Before disassembling any component, always unplug
the appliance from the mains.
