UHP-100 HIGH-THROUGHPUT SATELLITE ROUTER
GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2
© UHP NETWORKS INC 2016 7 www.uhp.net
1. GENERAL DESCRIPTION
1.1 System overview
UHP satellite routers are essentially a universal solution for geographically distributed VSAT-class satellite
communication networks. UHP routers can be used to organize simple point-to-point channels, “star”- and
“mesh”-topology networks with several hierarchy levels and bandwidth-on-demand capabilities.
UHP VSAT platform is based on many innovation technologies. It was developed using long-term experience in
satellite service provisioning. Nowadays electronics achievements made it possible to make VSAT platform
compact and assure its efficiency and reach functionality.

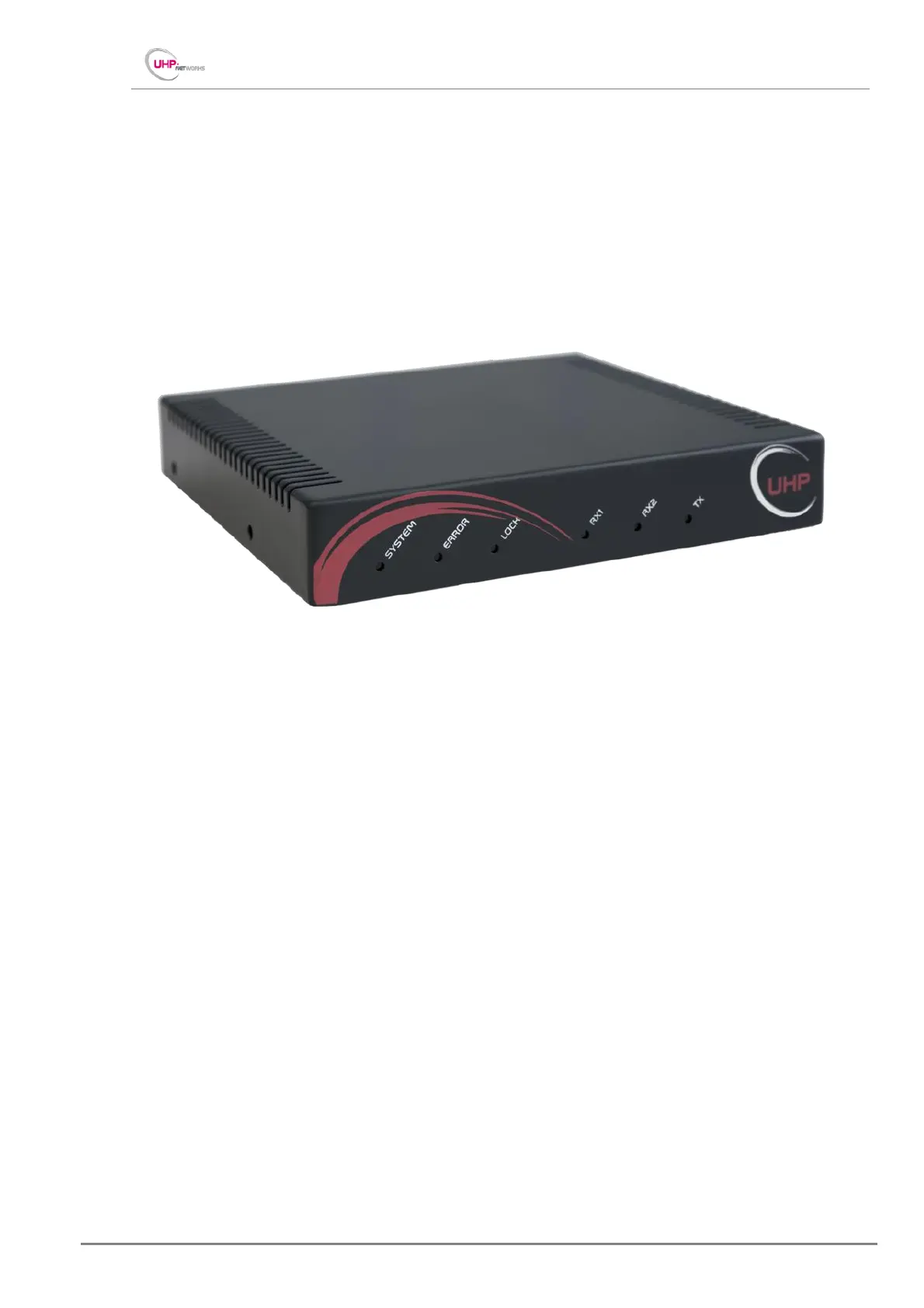

Figure 2 UHP-100 Satellite Router
Technical characteristics are given in the appropriate product specification sheets.
1.2 Measurement equipment, tools and accessories
Standard computer (notebook) is required to configure and monitor status of UHP-100 satellite router. The
computer must be equipped with a LAN interface and USB, and also have the following software installed:
Internet browser (WEB browser)
Telnet Client
The Terminal (e.g.: Hyperterminal, included in the OS Windows) (optional)
The router can be accessed via LAN or USB ports. Standard USB AM/BM cable (not supplied) is required for
connection to USB “Console” port of the satellite router.
Connection of a computer to the router via LAN interface is implemented through the Ethernet switch or hub via a
standard network cable with RJ-45 connectors (not supplied).
1.3 Labeling and sealing
The product is marked with the unique Serial Number, as well as Part Number on the bottom of the router case.
The warranty seals are located on the bottom of the product, at the junction of the two parts of the case. Product
warranty will automatically void if such labels have been removed, modified or damaged.
