Ultra Optics Rx - Circuit Breaker Configuration Details

www.ultraoptics.com page 27

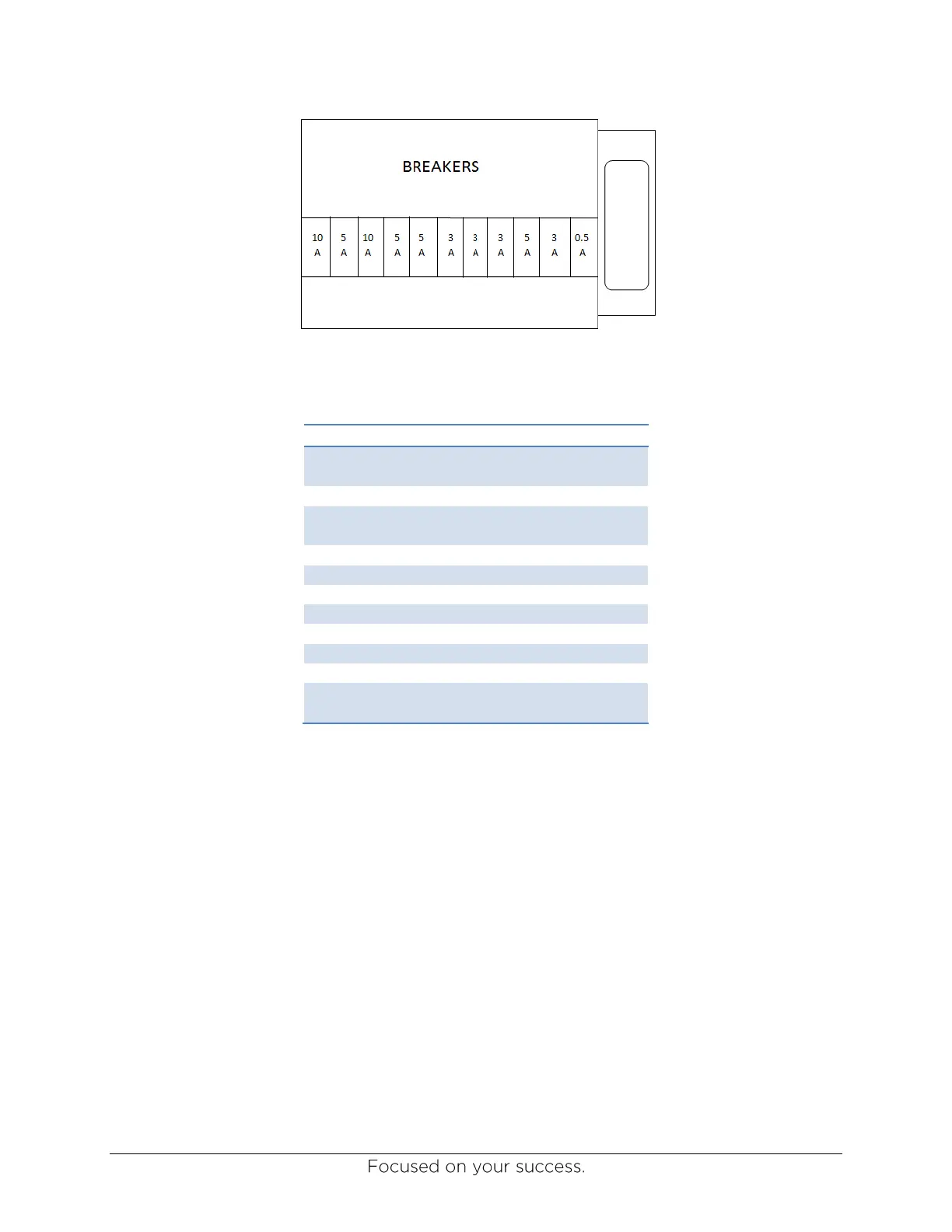

Figure 14 - Circuit breaker layout
CIRCUIT BREAKER LAYOUT
10
AMP
Machine breaker
5 AMP
Index motor
10
AMP
Lamp breaker
5 AMP
24vdc power supply
5 AMP
PLC breaker
3 AMP
Speed board 1
3 AMP
Speed board 2
3 AMP
Speed board 3/Lamp motor
5 AMP
HEPA outlet breaker
3 AMP
Lamp fans
0.5
AMP
Wash motor
 Breakers are listed in order as they appear from left to right
