Required Utilities
The following facility utilities are required to operate the Rx. The provisions for these facilities
are the responsibility of the customer and are not included in the scope of supply for this
machine.
Physical Location
The machine should be installed in a location that is accessible
for easy disconnect of power and has good ventilation with an
air exchange of 4-5 times per hour.
Electrical Power
115 VAC, 15 amp circuit required. Machine is supplied with a
grounded three-prong receptacle. The machine requires earth
ground.
Compressed Air
80 psig, 10 cfm. The connection on the machine is a 1/4” quick
connect
Deionized Water
Consumption of 7.6 L/hr at periodic rates of 0.3 L/min of
deionized water flow rate with ≥ 1 megaohm resistivity
2
. The
machine is supplied with a reservoir that needs to be
periodically filled by the user. The pH value should be greater
than 4.9 and less than 9.1.
Water Drain
The machine is supplied with a drain reservoir that needs to be
periodically dumped by the user.
Machine connections
The Rx requires two cords to be plugged into the back of the machine. One cord is the power
cord that connects the 115 VAC power supply to the back of the machine. With reference to
Figure 1, the connector on the right is round and is used to connect the supplied foot switch.

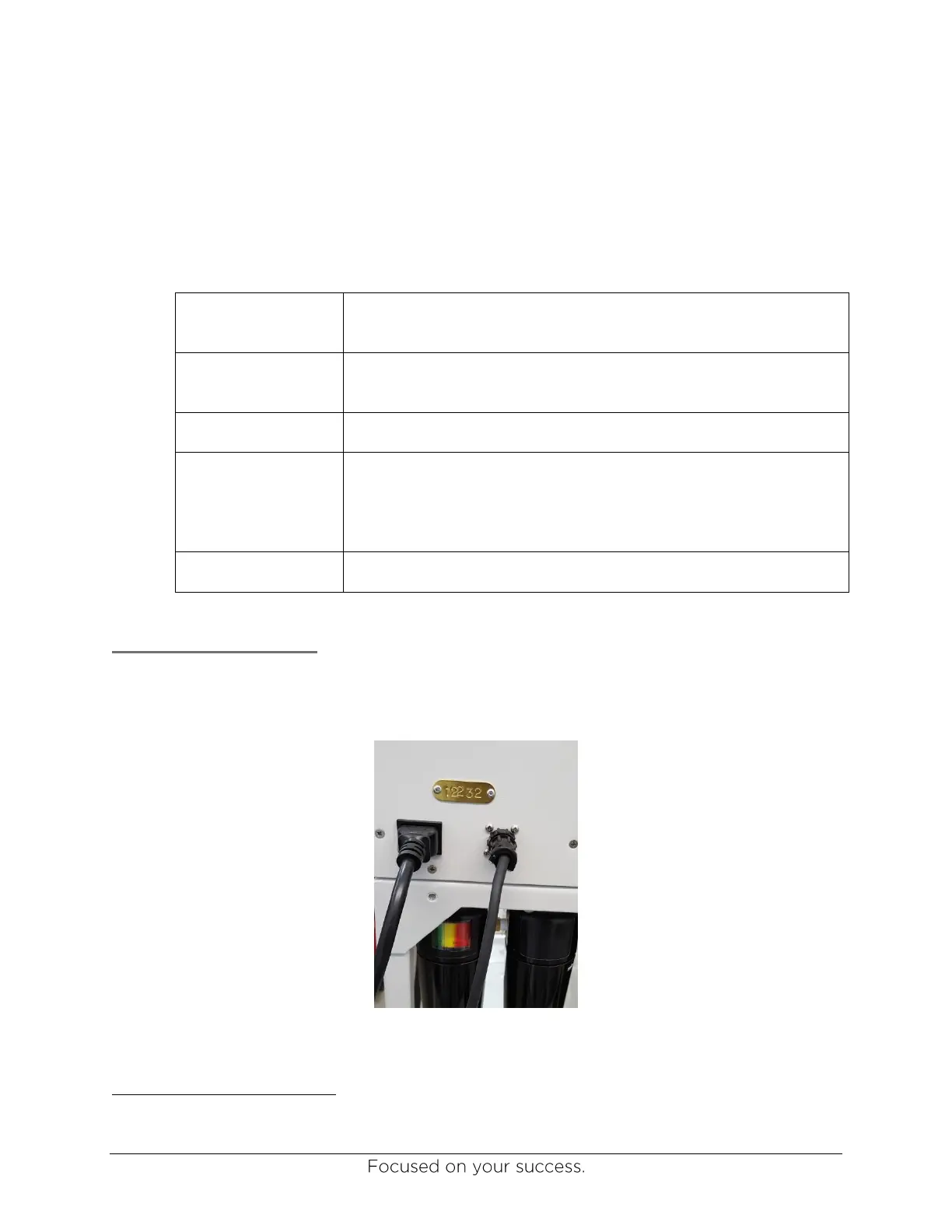

Figure 1 - Electrical and foot switch connections
2
It is possible to install a sensor that will test the water quality for proper resistance levels.
