Ulvac G-101D - 2.2 Dimensional Drawing

-5-
2.2 Dimensional drawing
Motor ; Single phase, 50/60Hz, 400W, 4Poles, Capacitor start & run,
fully-closed external fan
Weight ; 23kg

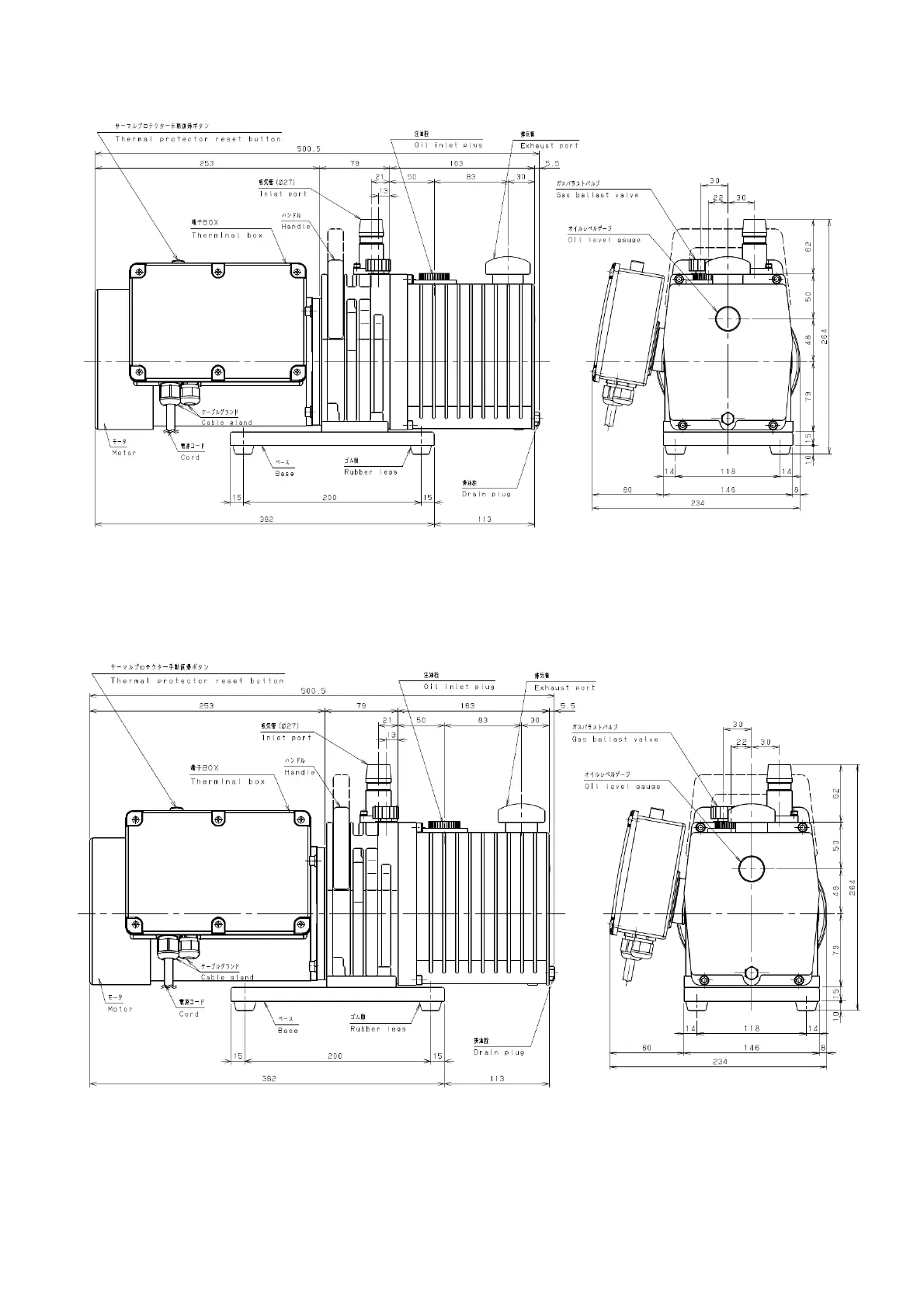

Fig. 1 Dimensional drawing of G-101D oil sealed rotary vacuum pump
Motor ; Single phase, 50/60Hz, 400W, 4Poles, Capacitor start & run,
fully-closed external fan
Weight ; 22kg
Fig. 2 Dimensional drawing of G-101S oil sealed rotary vacuum pump
